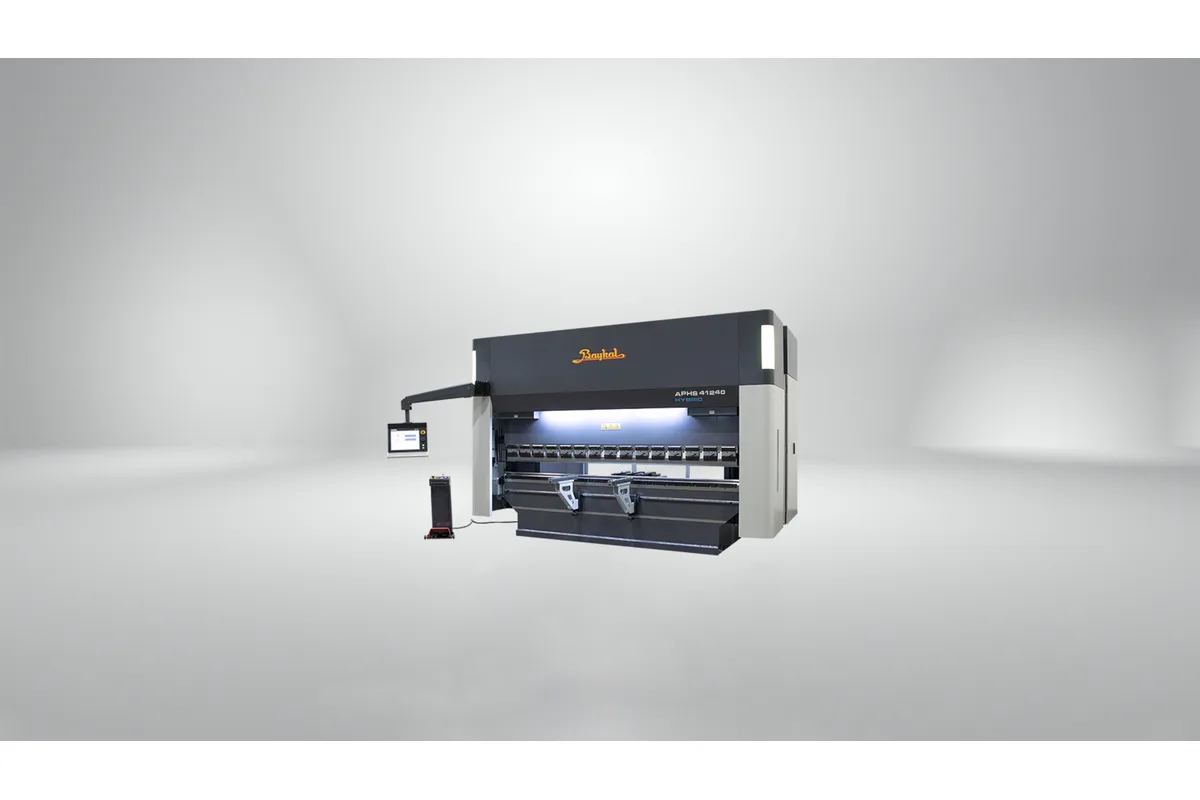

Baykal APHS HYBRID 31160
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
throat gap
stroke
daylight opening
approach speed
How much does the Baykal APHS HYBRID 31160 cost?
Price estimate
We do not have a price for the Baykal APHS HYBRID 31160 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 160 Tons over 3,100 mm (122 in), the Baykal APHS HYBRID 31160 sits one step above the entry model and is the first size to carry the larger drive units, listed as 2x9.2 kW of rated power with 2x55 L of oil.
That pairing of force and speed is the reason to pick it. The ram keeps the full 200 mm/s approach and 200 mm/s return of the lighter APHS HYBRID 31120, which has 120 Tons, and still works at 10 mm/s under load. Going further up the range changes that: the APHS HYBRID 31240 drops to 160 mm/s unless the H+Package is ordered. For a shop that bends mostly mild steel of moderate thickness, this is the point in the series where nothing has yet been traded away for tonnage.
Open height is generous for the size. The daylight opening is 540 mm (21.3 in), the same as the smallest model and slightly more than the 530 mm (20.9 in) of the APHS HYBRID 31200. Stroke is 260 mm (10.2 in) and the throat gap 410 mm (16.1 in).
Baykal describes the series as ready for robotic applications and fits a motorized guard that opens by remote control. Front and rear safeguarding systems are part of the description, and support arms are moveable and adjustable. The X axis of the backgauge has 750 mm (29.5 in) of range and moves at 350 mm/s; the R axis has 160 mm (6.3 in) at 240 mm/s.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 160 Tons |
| Bending Length | 3,100 mm (122 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 540 mm (21.3 in) |
| Approach Speed | 200 mm/s |
| Working Speed | 10 mm/s |
| Return Speed | 200 mm/s |
| X Axis Range | 750 mm (29.5 in) |
| X Axis Speed | 350 mm/s |
| R Axis Range | 160 mm (6.3 in) |
| R Axis Speed | 240 mm/s |
| Rated Power | 2x9.2 kW |
| Oil Capacity | 2x55 L |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 160 Tons with the full 200 mm/s approach and return speeds as standard
- 540 mm (21.3 in) daylight opening, more than the APHS HYBRID 31200
- Twin drive units listed as 2x9.2 kW
- Motorized guard system with remote control, per Baykal's description
- R axis with 160 mm (6.3 in) of range at 240 mm/s
Limitations
- Throat gap is 410 mm (16.1 in); the 500 mm (19.7 in) throat comes only with the APHS HYBRID 31300
- Stroke of 260 mm (10.2 in) limits deep box work
- No weight, footprint or control is given in the hybrid data sheet
- Backgauge precision is printed without a unit
Best For
Frequently Asked Questions
01
Force and drive size. The APHS HYBRID 31120 has 120 Tons with 2x6 kW and 2x34.5 L; this model has 160 Tons with 2x9.2 kW and 2x55 L. Bending length, stroke, daylight opening, throat gap and ram speeds are the same on both.
02
No. Its table values are 200 mm/s approach, 10 mm/s working and 200 mm/s return without any footnote. Baykal's note about higher speeds with the H+Package applies to the models for 240-300 tons.
03
The daylight opening is 540 mm (21.3 in) and the stroke 260 mm (10.2 in). The throat gap is 410 mm (16.1 in), which is the depth available for parts that extend beyond the side frames.
04
Baykal describes the hybrid series as ready for robotic applications and as prepared for Industry 4.0. The data sheet does not list interfaces or a control, so the integration details have to come from Baykal.
