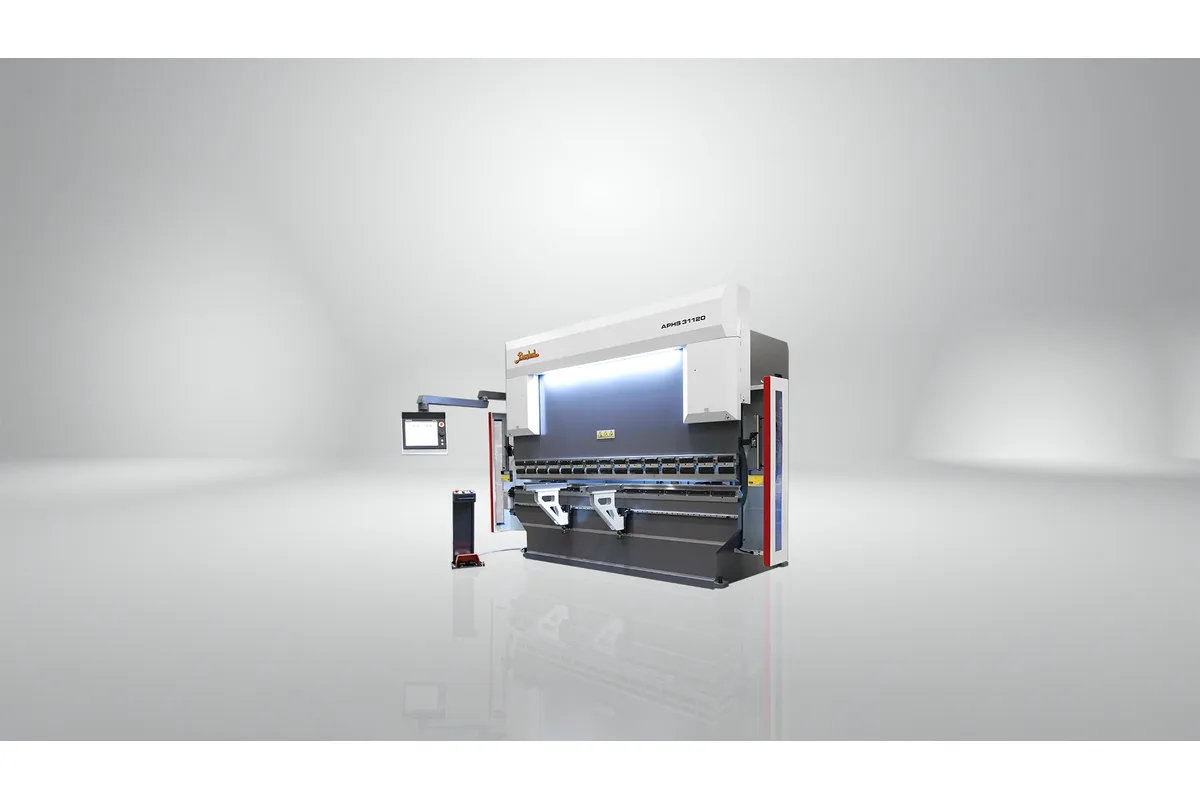

Baykal APHS 2104x60
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS 2104x60 cost?
Price estimate
We do not have a price for the Baykal APHS 2104x60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 600 kN over 2,100 mm (82.7 in), the Baykal APHS 2104x60 covers the two-metre sheet that the smallest APHS cannot take and does it at 5.4 Ton. It is the first size on the common series bed height of 880 mm (34.6 in).
One figure deserves a second look before ordering. Stroke is 210 mm (8.3 in), the shortest in the whole APHS table and a little under the 215 mm (8.5 in) of the APHS 1254x40. Daylight opening is 475 mm (18.7 in). The step to the APHS 2606x90 brings 260 mm (10.2 in) of stroke and 540 mm (21.3 in) of daylight, so the choice between the two is as much about open height as about length.
Between the frames there is 1,600 mm (63 in). Parts up to that width pass through to any depth the backgauge allows; wider blanks are held to the 410 mm (16.1 in) throat. Table width is 60 mm (2.4 in).
Approach speed is 150 mm/s, working speed 10 mm/s and return speed 130 mm/s. The motor is rated 5.5 kW (7.4 hp). From this model on, the tank holds 140 L, a volume the series keeps as far as the APHS 3106x120.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 600 kN |
| Bending Length | 2,100 mm (82.7 in) |
| Distance Between Frames | 1,600 mm (63 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 210 mm (8.3 in) |
| Daylight Opening | 475 mm (18.7 in) |
| Table Width | 60 mm (2.4 in) |
| Bed Height | 880 mm (34.6 in) |
| Side Frame Width | 1,580 mm (62.2 in) |
| Approach Speed | 150 mm/s |
| Working Speed | 10 mm/s |
| Return Speed | 130 mm/s |
| Motor Power | 5.5 kW (7.4 hp) |
| Oil Tank Volume | 140 L |
| Machine Weight | 5.4 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,100 mm (82.7 in) bending length in a machine of 5.4 Ton
- 1,600 mm (63 in) clear between the side frames
- Low connected load: the motor is 5.5 kW (7.4 hp)
- Works at 10 mm/s and returns at 130 mm/s, as the larger light-frame models do
Limitations
- Shortest stroke of the series at 210 mm (8.3 in)
- Daylight opening is 475 mm (18.7 in), against 540 mm (21.3 in) on the APHS 2606x90
- 600 kN limits thick plate to short bend lengths
Best For
Frequently Asked Questions
01
210 mm (8.3 in), with a daylight opening of 475 mm (18.7 in). These are the figures to compare with your tallest punch and die set, because they are the smallest pairing in the series after the APHS 1254x40.
02
No. The bending length is 2,100 mm (82.7 in) but the distance between the frames is 1,600 mm (63 in). A sheet longer than that is bent in front of the frames, where the throat gap of 410 mm (16.1 in) sets the flange depth.
03
The ram approaches at 150 mm/s, bends at 10 mm/s and returns at 130 mm/s. The approach figure is 10 mm/s below the APHS 1254x40, which is listed at 160 mm/s; working and return speeds match.
04
Motor output is 5.5 kW (7.4 hp) and the oil tank volume is 140 L. Supply voltage is not printed in the data sheet, so have Baykal confirm it for your country.
