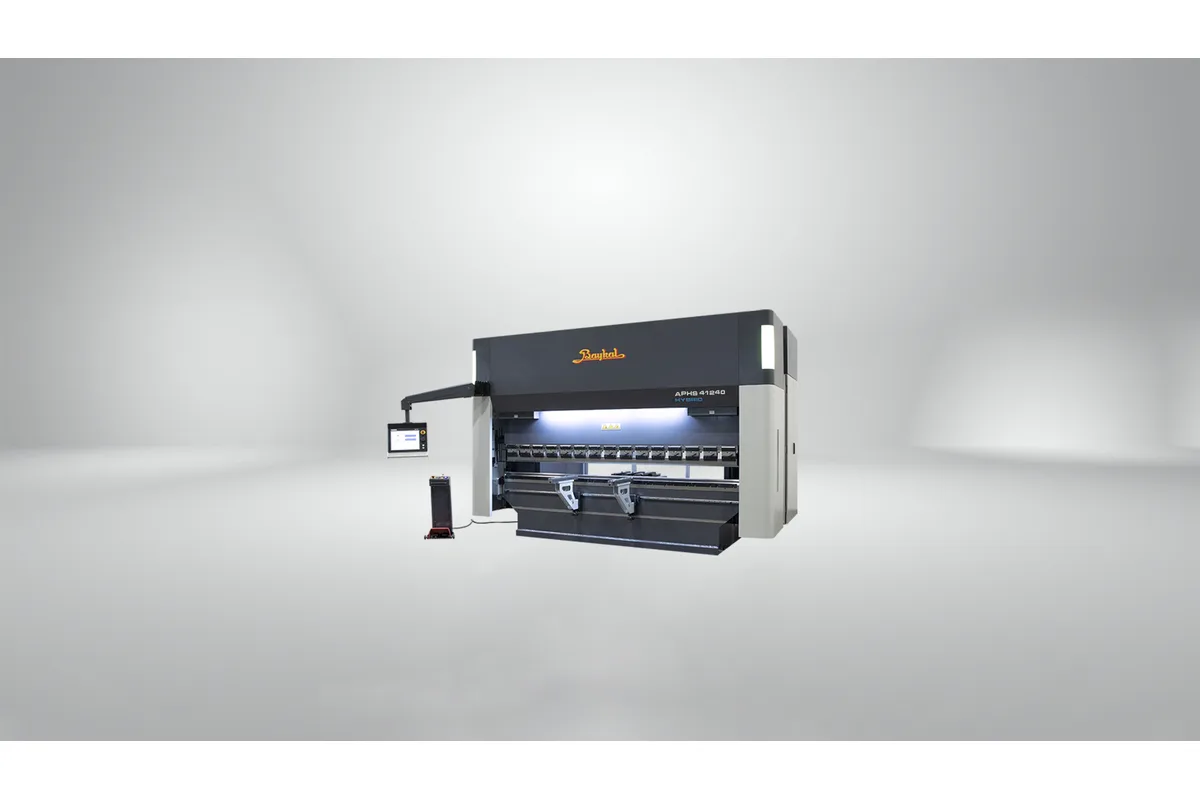

Baykal APHS HYBRID 41200
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
throat gap
stroke
daylight opening
approach speed
How much does the Baykal APHS HYBRID 41200 cost?
Price estimate
We do not have a price for the Baykal APHS HYBRID 41200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For general fabrication on a long bed, the Baykal APHS HYBRID 41200 is the balanced choice in the hybrid series: 200 Tons of bending force across 4,100 mm (161.4 in), at the full ram speeds the series offers.
The figures are easy to state. Approach 200 mm/s. Working 10 mm/s. Return 200 mm/s. Stroke 260 mm (10.2 in), daylight opening 530 mm (20.9 in), throat gap 410 mm (16.1 in). Rated power 2x9.2 kW and oil capacity 2x55 L. What they add up to is a long machine that still cycles like a short one, because the two servo-driven units move the ram quickly and only run when a bend is being made.
Within the 4,100 mm models it sits between the APHS HYBRID 41160, with 160 Tons, and the heaviest APHS HYBRID 41300, with 300 Tons. The APHS HYBRID 41300 also brings a 320 mm (12.6 in) stroke and a 500 mm (19.7 in) throat, but slower standard speeds. This model is the last long hybrid that needs no speed option.
Baykal's page credits the servo drives with making movement considerably faster in all directions than on conventional press brakes while keeping accuracy and repeatability. It also lists a control arm that adjusts in height for the operator. The backgauge is given with an X axis of 750 mm (29.5 in) range at 350 mm/s and an R axis of 160 mm (6.3 in) range at 240 mm/s. Crowning is not mentioned in the hybrid sheet; over a bed this long, ask how deflection is compensated.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 200 Tons |
| Bending Length | 4,100 mm (161.4 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 530 mm (20.9 in) |
| Approach Speed | 200 mm/s |
| Working Speed | 10 mm/s |
| Return Speed | 200 mm/s |
| X Axis Range | 750 mm (29.5 in) |
| X Axis Speed | 350 mm/s |
| R Axis Range | 160 mm (6.3 in) |
| R Axis Speed | 240 mm/s |
| Rated Power | 2x9.2 kW |
| Oil Capacity | 2x55 L |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 200 Tons across a 4,100 mm (161.4 in) bending length
- 200 mm/s approach and return with 10 mm/s working speed, no option needed
- Height adjustable control arm system, per Baykal's description
- Twin servo-hydraulic units listed as 2x9.2 kW
- X axis range of 750 mm (29.5 in)
Limitations
- Stroke is 260 mm (10.2 in), below the 320 mm (12.6 in) of the APHS HYBRID 41300
- Throat gap is 410 mm (16.1 in)
- Crowning is not mentioned in the hybrid data sheet
- No machine weight or overall dimensions are listed
Best For
Frequently Asked Questions
01
200 Tons of force over 4,100 mm (161.4 in), a 260 mm (10.2 in) stroke, a 530 mm (20.9 in) daylight opening and a 410 mm (16.1 in) throat gap. Ram speeds are 200 mm/s approach, 10 mm/s working and 200 mm/s return.
02
The APHS HYBRID 41300 has 300 Tons, a 320 mm (12.6 in) stroke and a 500 mm (19.7 in) throat gap, but approaches at 140 mm/s unless the H+Package is fitted. This model has less force and a smaller frame, with 200 mm/s as standard.
03
An X axis with a range of 750 mm (29.5 in) and a speed of 350 mm/s, and an R axis with a range of 160 mm (6.3 in) and a speed of 240 mm/s. No other axes appear in Baykal's hybrid table.
04
Baykal's legal notice on the data sheet says that machines built with CE-safety conformity are available as an option. The series description mentions front and rear safeguarding systems and a motorized guard with remote control.
