Amada HG-2204 ATC

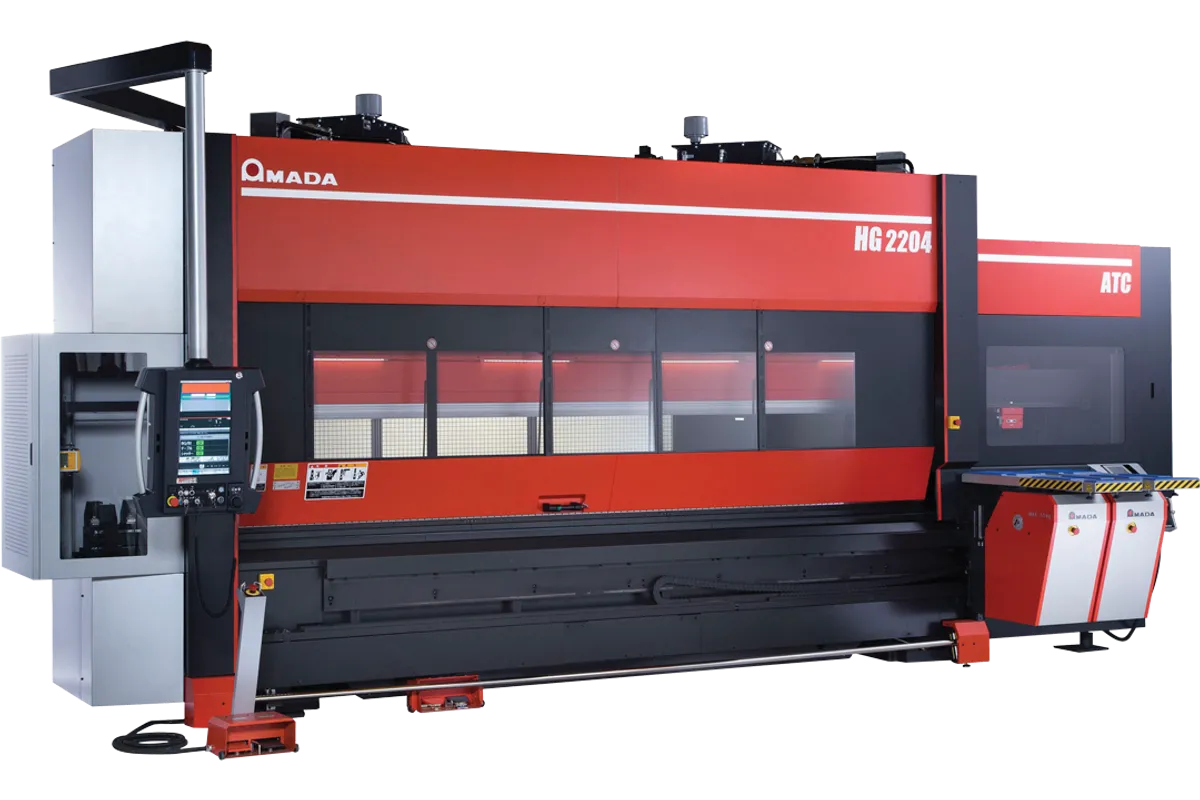

Image: amada.com, Amada
Key Specifications
press capacity
press beam length
distance between frames
stroke
open height
bending speed
How much does the Amada HG-2204 ATC cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Amada. Configuration moves it a long way.
Overview
The Amada HG-2204 ATC is a 2200 kN press brake with a 4300 mm beam and tool storage on the machine: 18 punch stockers and 25 die stockers. It is the HG-2204 frame size with the ATC unit added, and the stockers are the reason to look at it.
Stored tooling changes how the machine is scheduled. With punches and dies held at the machine instead of on a rack across the shop, a setup change stops depending on an operator carrying segments to the beam, which favours short runs and frequent changeovers. How many distinct setups 18 punch stockers and 25 die stockers cover depends on segment lengths and on how many profiles the work calls for, so write out the tooling for a typical week before assuming everything fits.
The bending figures are those of a long, heavy brake. Amada lists 3760 mm between the frames, 250 mm of stroke and 596 mm of open height. The ram approaches at 220 mm/sec, bends at 20 mm/sec and returns at 250 mm/sec.
Size is what the ATC takes in exchange. This machine is 8230 mm long, 3287 mm wide and 3325 mm high, and it weighs 22400 kg. The stand-alone HG-2204 is 6650 mm long and 18500 kg, so the tool storage adds to both the length and the load the floor has to carry.
Full Specifications
| Parameter | Value |
|---|---|
| Press Capacity | 2200 kN |
| Press Beam Length | 4300 mm |
| Distance Between Frames | 3760 mm |
| Stroke | 250 mm |
| Open Height | 596 mm |
| Bending Speed | 20 mm/sec |
| Approach Speed | 220 mm/sec |
| Return Speed | 250 mm/sec |
| ATC Punch Stockers | 18 |
| ATC Die Stockers | 25 |
| Machine Length | 8230 mm |
| Machine Width | 3287 mm |
| Machine Height | 3325 mm |
| Machine Weight | 22400 kg |
Specifications sourced from amada.eu — verified 2026-10-03
Strengths & Limitations
Strengths
- 18 punch stockers and 25 die stockers hold tooling on the machine
- 2200 kN press capacity on a 4300 mm beam
- 596 mm open height with a 250 mm stroke
- 3760 mm between the frames for wide sheets
- Ram speeds of 220 mm/sec on approach and 250 mm/sec on return
Limitations
- 8230 mm long and 3287 mm wide, against 6650 mm by 2922 mm for the stand-alone HG-2204
- 22400 kg machine weight, compared with 18500 kg for the HG-2204 without the ATC
- Amada's table for this model gives no throat depth or working height, so confirm both for parts longer than 3760 mm
Best For
Frequently Asked Questions
01
Amada lists 18 punch stockers and 25 die stockers. The table does not state the length of tooling each stocker carries, so the number of complete setups depends on the segment lengths and profiles you run. Check the tooling list for your part mix against the stocker count before ordering.
02
Both are 2200 kN machines with a 4300 mm beam, 3760 mm between frames, 250 mm stroke and identical ram speeds. The HG-2204 ATC adds the punch and die stockers and grows to 8230 mm long, 3287 mm wide and 3325 mm high at 22400 kg. The HG-2204 is 6650 mm long, 2922 mm wide and 3215 mm high at 18500 kg. Open height is listed differently: 596 mm for the HG-2204 ATC, and 520 mm without holder for the HG-2204.
03
596 mm of open height and 250 mm of stroke. That pairing leaves room for tall punches and for parts with deep return flanges, but the clear daylight in use depends on the punch and die heights loaded from the stockers.
04
The machine itself is 8230 mm long, 3287 mm wide and 3325 mm high, and it weighs 22400 kg. Add working room in front for sheets up to the 4300 mm beam length. Building height, the lifting plan and floor loading should all be checked against those figures before the machine ships.
