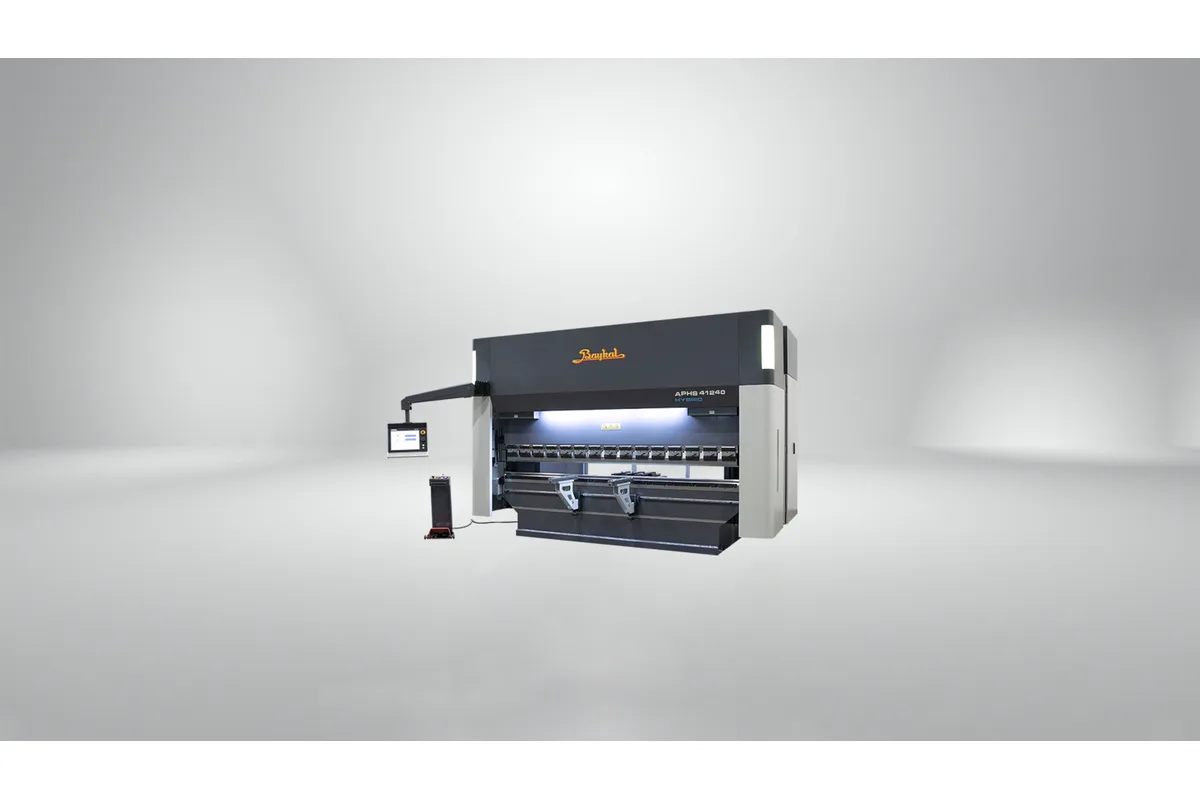

Baykal APHS HYBRID 31240
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
throat gap
stroke
daylight opening
approach speed
How much does the Baykal APHS HYBRID 31240 cost?
Price estimate
We do not have a price for the Baykal APHS HYBRID 31240 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Baykal APHS HYBRID 31240 raises the force of the 3,100 mm (122 in) hybrid to 240 Tons, and it is the first size where speed becomes an option instead of a given. Baykal's table lists approach and return at 160 mm/s and working speed at 8 mm/s, each with a footnote: 200 mm/s and 10 mm/s are available with the H+Package.
The explanation is in the drive row. Rated power is 2x9.2 kW, the same as on the APHS HYBRID 31160 and the APHS HYBRID 31200, so the same units are moving larger cylinders and the standard speeds fall. Baykal's product page says as much: for 240-300 tons, higher speeds are available with the H+Package. Anyone comparing quotations should check whether that package is included, because it decides the cycle time.
The working envelope matches the APHS HYBRID 31200. Daylight opening is 530 mm (20.9 in), stroke 260 mm (10.2 in), throat gap 410 mm (16.1 in). Oil capacity is 2x55 L.
At 240 Tons over this length the machine is in heavier fabrication territory: thicker plate, high-strength steel, longer bends in stainless. Deflection matters more as force rises, and the hybrid data sheet does not mention a crowning system, so ask what is fitted. The backgauge has an X axis with 750 mm (29.5 in) of range at 350 mm/s and an R axis with 160 mm (6.3 in) at 240 mm/s. Front and rear safeguarding are part of Baykal's description of the series.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 240 Tons |
| Bending Length | 3,100 mm (122 in) |
| Throat Gap | 410 mm (16.1 in) |
| Stroke | 260 mm (10.2 in) |
| Daylight Opening | 530 mm (20.9 in) |
| Approach Speed | 160 mm/s; 200 mm/s with H+Package |
| Working Speed | 8 mm/s; 10 mm/s with H+Package |
| Return Speed | 160 mm/s; 200 mm/s with H+Package |
| X Axis Range | 750 mm (29.5 in) |
| X Axis Speed | 350 mm/s |
| R Axis Range | 160 mm (6.3 in) |
| R Axis Speed | 240 mm/s |
| Rated Power | 2x9.2 kW |
| Oil Capacity | 2x55 L |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 240 Tons of bending force on a 3,100 mm (122 in) bed
- H+Package raises approach and return to 200 mm/s
- Same 2x55 L oil capacity as the lighter models
- 530 mm (20.9 in) daylight opening
- Backgauge X axis at 350 mm/s over 750 mm (29.5 in)
Limitations
- Standard approach and return speeds are 160 mm/s; 200 mm/s needs the H+Package
- Standard working speed is 8 mm/s, below the 10 mm/s of the APHS HYBRID 31200
- Stroke and throat stay at 260 mm (10.2 in) and 410 mm (16.1 in)
- No crowning, control or weight information in the data sheet
Best For
Frequently Asked Questions
01
An option that raises the ram speeds. Without it the table lists 160 mm/s approach, 8 mm/s working and 160 mm/s return. With it the figures are 200 mm/s, 10 mm/s and 200 mm/s. Baykal's sheet does not describe what the package contains.
02
It has 240 Tons of bending force over a 3,100 mm (122 in) bending length. Rated power is listed as 2x9.2 kW and oil capacity as 2x55 L, the same drive figures as the APHS HYBRID 31200.
03
Stroke is 260 mm (10.2 in) and the daylight opening 530 mm (20.9 in), with a 410 mm (16.1 in) throat gap. These match the APHS HYBRID 31200; a larger frame arrives with the APHS HYBRID 31300.
04
As standard, yes. The APHS HYBRID 31200 approaches at 200 mm/s and works at 10 mm/s, while this model is listed at 160 mm/s and 8 mm/s. Ordering the H+Package brings it back to 200 mm/s and 10 mm/s.
