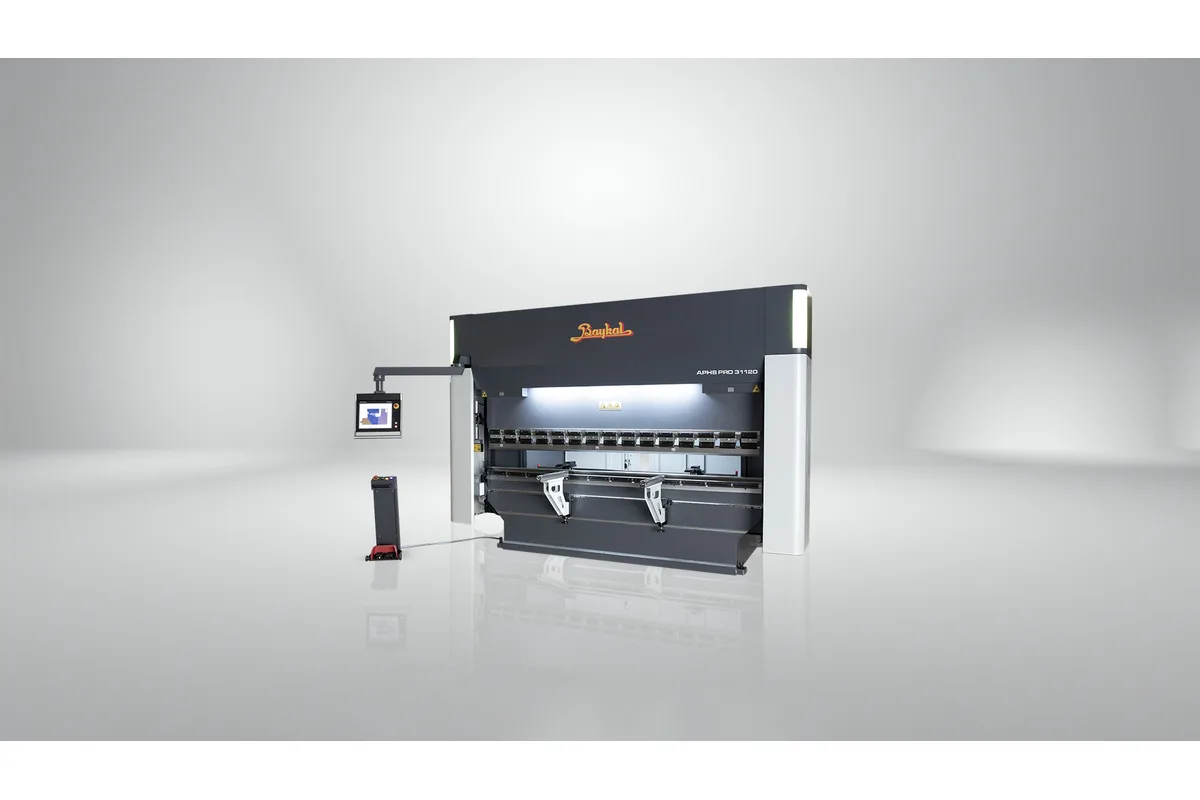

Baykal APHS PRO 6116x600
Image: baykal.com.tr, Baykal
Key Specifications
bending force
bending length
distance between frames
throat gap
stroke
daylight opening
How much does the Baykal APHS PRO 6116x600 cost?
Price estimate
We do not have a price for the Baykal APHS PRO 6116x600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Baykal APHS PRO 6116x600 is the last column of the APHS PRO data sheet and the largest press brake Baykal publishes figures for: 6,000 kN over 6,100 mm (240.2 in). It corresponds to the two limits Baykal advertises for the series, up to 6 Meters and up to 600 tons.
Several rows reach values that appear only here. Stroke is 360 mm (14.2 in). The motor is 37 kW (49.6 hp). The tank holds 500 L. Working speed is 7 mm/s. And the weight is approximately 55 Ton, where the APHS PRO 6112x440 weighs 39 Ton.
A machine like this is a building project. Side frame width is 2,400 mm (94.5 in), and although the bed height of 1,050 mm (41.3 in) is lower than on the other six-metre models, a foundation, crane access and oil handling for 500 L all have to be planned before delivery.
In use, the tool space matters as much as the force. Daylight opening is 620 mm (24.4 in), the table 380 mm (15 in) wide and the throat gap 500 mm (19.7 in). The ram approaches at 80 mm/s and returns at 70 mm/s.
For published figures, this is the top of Baykal's bending range.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 6,000 kN |
| Bending Length | 6,100 mm (240.2 in) |
| Distance Between Frames | 5,100 mm (200.8 in) |
| Throat Gap | 500 mm (19.7 in) |
| Stroke | 360 mm (14.2 in) |
| Daylight Opening | 620 mm (24.4 in) |
| Table Width | 380 mm (15 in) |
| Bed Height | 1,050 mm (41.3 in) |
| Side Frame Width | 2,400 mm (94.5 in) |
| Approach Speed | 80 mm/s |
| Working Speed | 7 mm/s |
| Return Speed | 70 mm/s |
| Motor Power | 37 kW (49.6 hp) |
| Oil Tank Volume | 500 L |
| Machine Weight | 55 Ton (approx.) |
Specifications sourced from baykal.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,000 kN, the highest force in Baykal's published press brake data
- 360 mm (14.2 in) stroke, the longest in the APHS PRO table
- 620 mm (24.4 in) daylight opening
- 380 mm (15 in) table on a 6,100 mm (240.2 in) bed
- Bed height of 1,050 mm (41.3 in), lower than the other six-metre sizes
Limitations
- Approximately 55 Ton, a foundation and transport project
- Working speed of 7 mm/s is the slowest listed
- 37 kW (49.6 hp) motor and 500 L of oil
- Side frame width of 2,400 mm (94.5 in)
Best For
Frequently Asked Questions
01
6,000 kN over a bending length of 6,100 mm (240.2 in), with 5,100 mm (200.8 in) between the frames. Baykal's series summary states up to 6 Meters and up to 600 tons.
02
Stroke is 360 mm (14.2 in) and daylight opening 620 mm (24.4 in). Both exceed the APHS PRO 6112x440, which has 320 mm (12.6 in) and 570 mm (22.4 in).
03
It approaches at 80 mm/s, bends at 7 mm/s and returns at 70 mm/s. At this size the bending speed matters less than crane time and positioning of the plate.
04
Foundation load for approximately 55 Ton, supply for a 37 kW (49.6 hp) motor, 500 L of oil, and the equipment list: Baykal's PRO text names CNC motorized crowning, 2 to 6 axis backgauges and a front sheet follower without saying what is standard.
