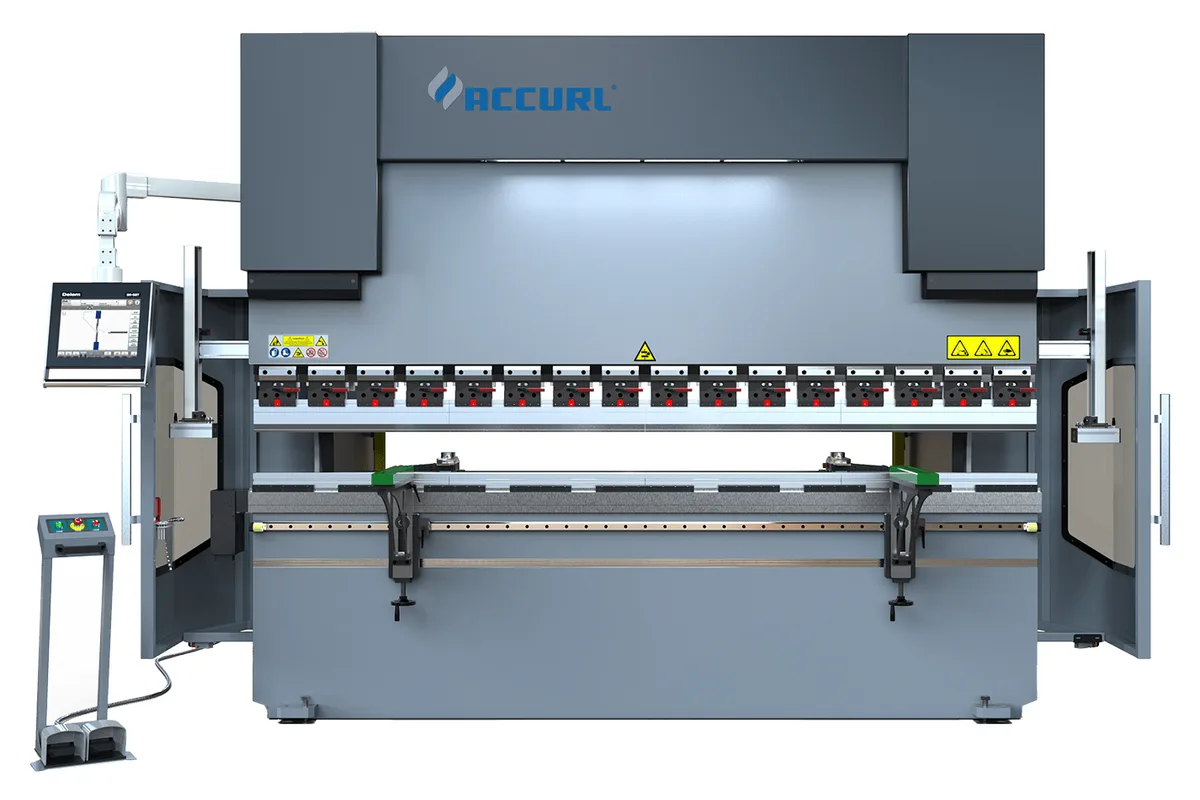

Accurl EURO-PRO B 60600
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 60600 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 60600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Nothing in the EURO-PRO B table is larger than the Accurl EURO-PRO B 60600. Its capacity is 6,000 kN, its bending length 6,000 mm (236.2 in), its weight 65,000 kg (143,298 lb).
The figures at the top of a range are usually extremes, and they are here. The daylight opening is 650 mm (25.6 in), the widest of the series. The motor is the largest at 40 kW (53.6 hp). The fast approach is the slowest, 80 mm/s, and equals the return speed.
A machine like this is bought for specific parts. Thick-walled poles, crane and excavator booms, ship and wagon sections, heavy wear plate folded in long lengths. The 5,050 mm (198.8 in) between the side frames and the 450 mm (17.7 in) gap decide which of them fit.
The table is 300 mm (11.8 in) wide and 990 mm (39 in) high, and the stroke is 320 mm (12.6 in). The backgauge stroke is 1,000 mm (39.4 in).
Length and width are listed as 6,500 mm (255.9 in) and 2,700 mm (106.3 in), identical to the EURO-PRO B 60500. No height is given for the model on this page. Get it, with the foundation plan, from the maker before the building is committed.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 6,000 kN |
| Bending Length | 6,000 mm (236.2 in) |
| Distance Between Side Frames | 5,050 mm (198.8 in) |
| Gap | 450 mm (17.7 in) |
| Daylight Opening | 650 mm (25.6 in) |
| Stroke | 320 mm (12.6 in) |
| Table Height | 990 mm (39 in) |
| Table Width | 300 mm (11.8 in) |
| Approach Speed | 80 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 80 mm/s |
| Motor Power | 40 kW (53.6 hp) |
| Backgauge Stroke | 1,000 mm (39.4 in) |
| Machine Length | 6,500 mm (255.9 in) |
| Machine Width | 2,700 mm (106.3 in) |
| Machine Weight | 65,000 kg (143,298 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,000 kN, the highest capacity of the series
- 650 mm (25.6 in) daylight opening
- 40 kW (53.6 hp) motor, the largest in the table
- Backgauge stroke of 1,000 mm (39.4 in)
Limitations
- Fast approach of only 80 mm/s
- 65,000 kg (143,298 lb) to move and found
- Machine height is not listed here
- Bending length does not go beyond 6,000 mm (236.2 in)
Best For
Frequently Asked Questions
01
6,000 kN on a bending length of 6,000 mm (236.2 in). It is the top model of the EURO-PRO B table, above the EURO-PRO B 60500 with 5,000 kN.
02
The EURO-PRO B 60500 has 5,000 kN, a 37 kW (49.6 hp) motor, 610 mm (24 in) of daylight and a 100 mm/s approach, and weighs 55,000 kg (121,252 lb). This model has 6,000 kN, 40 kW (53.6 hp), 650 mm (25.6 in) and 80 mm/s.
03
Approach and return are both 80 mm/s and the maximum bending speed is 8 mm/s. With plate handled by crane, these speeds are rarely what limits output.
04
The same list as the rest of the series: a DELEM DA-66T control with 2D graphics, Y1 and Y2 ram positioning, a BGA-2 backgauge, CNC motorized wave crowning and front and rear lighting.
