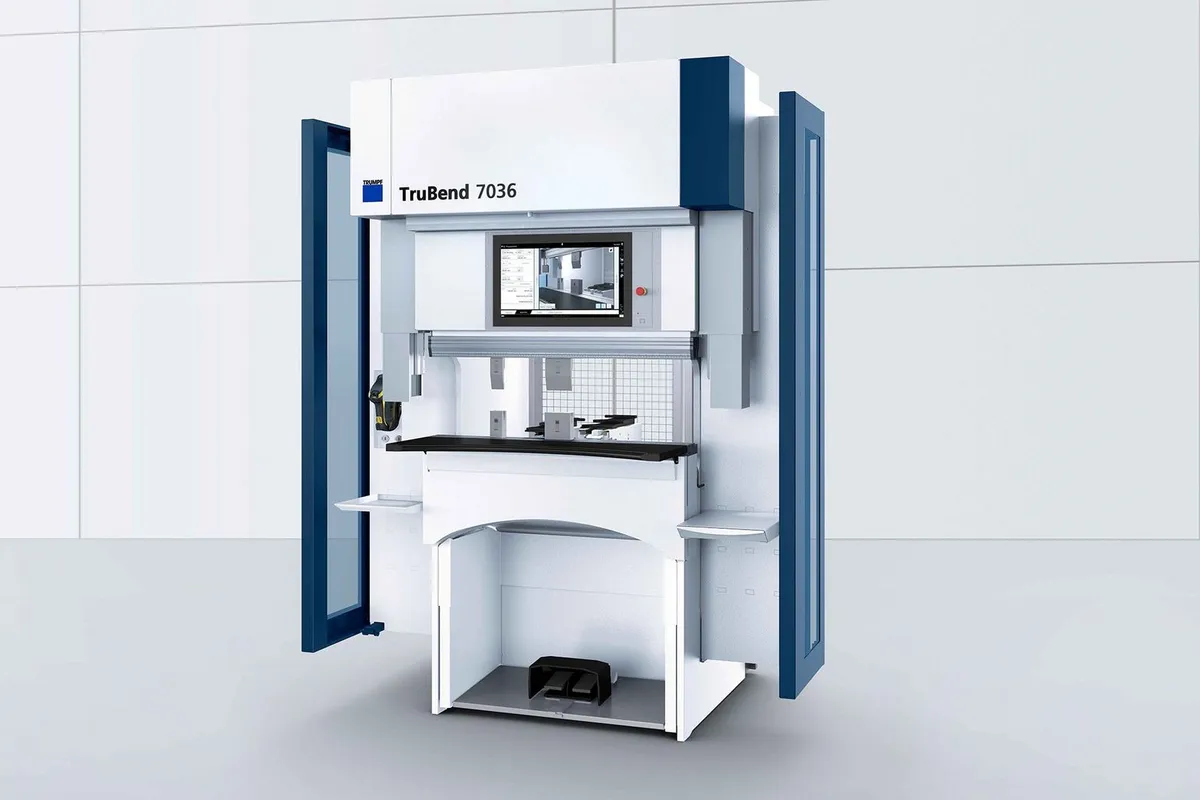

Trumpf TruBend Series 7000
Image: trumpf.com, Trumpf
Key Specifications
models
press force
bending length
width between columns
usable open height
throat depth
How much does the Trumpf TruBend Series 7000 cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Trumpf. Configuration moves it a long way.
Overview
The TruBend Series 7000 is Trumpf's compact press brake line, offered in two sizes: the TruBend 7036 and the TruBend 7050. The series table gives a press force of 360 kN, a 6-axis CNC back gauge described as carbon fiber, and the Touchpoint TruBend control with 3D visualization.
Read the single-value rows as the smaller machine. A bending length of 1020 mm, 932 mm between the columns, 295 mm of usable open height and a 150 mm throat are listed next to a length of 1900 mm, a width of 1340 mm and a height of 2380 mm. Those match the TruBend 7036 dimensions of 1,900 x 1,340 x 2,380 mm (74.8 x 52.8 x 93.7 in). The TruBend 7050 is listed at 2,420 x 1,805 x 2,580 mm (95.3 x 71.1 x 101.6 in) and has a bending length of 1,530 mm (60.2 in).
The backgauge speed is 1,000 mm/s (2,362 ipm). On short parts with several bends, gauge travel between stops is a real share of the cycle, and a light gauge moving at that rate keeps the wait short.
Trumpf describes the series as a space saver that can be transported by forklift truck. The weights bear that out: 3,300 kg (7,275 lb) for the TruBend 7036 and 5,500 kg (12,125 lb) for the TruBend 7050. What the series gives up is reach. A 150 mm throat and 295 mm of open height are small-part figures, so longer or deeper work belongs on something like the TruBend 5130, with its 3,230 mm (127 in) bending length.
Full Specifications
| Parameter | Value |
|---|---|
| Models | TruBend 7036, TruBend 7050 |
| Press Force | 360 kN |
| Bending Length | 1020 mm |
| Width Between Columns | 932 mm |
| Usable Open Height | 295 mm |
| Throat Depth | 150 mm |
| Backgauge Speed | 1,000 mm/s (2,362 ipm) |
| Back Gauge | 6-axis CNC (carbon fiber) |
| CNC Control | Touchpoint TruBend with 3D visualization |
| Machine Dimensions 7036 | 1,900 x 1,340 x 2,380 mm (74.8 x 52.8 x 93.7 in) |
| Machine Dimensions 7050 | 2,420 x 1,805 x 2,580 mm (95.3 x 71.1 x 101.6 in) |
| User Interface | Touchpoint TruBend |
| Length | 1900 mm |
| Width | 1340 mm |
| Height | 2380 mm |
| Sophisticated Space Saver | With its small installation area, the compact TruBend Series 7000 will fit in any production system, and can even be transported by forklift truck. |
Specifications sourced from trumpf.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Back gauge is a 6-axis CNC unit in carbon fiber, moving at 1,000 mm/s (2,362 ipm)
- Touchpoint TruBend control with 3D visualization
- Trumpf states the machines can be transported by forklift truck, which makes relocating one inside a plant practical
- Two sizes on one design: dimensions of 1,900 x 1,340 x 2,380 mm (74.8 x 52.8 x 93.7 in) or 2,420 x 1,805 x 2,580 mm (95.3 x 71.1 x 101.6 in)
- 360 kN press force on a 1020 mm bending length
Limitations
- Throat depth is 150 mm in the series table, so wide sheets cannot pass far beyond the bend line
- Usable open height is 295 mm, which rules out tall tooling stacks and deep boxes
- The series table states one press force, 360 kN, and does not break it out by model
- The longest bending length in the series is the 1,530 mm (60.2 in) of the TruBend 7050
Best For
Frequently Asked Questions
01
Two: the TruBend 7036 and the TruBend 7050. The TruBend 7036 has a 1,020 mm (40.2 in) bending length and weighs 3,300 kg (7,275 lb). The TruBend 7050 has a 1,530 mm (60.2 in) bending length and weighs 5,500 kg (12,125 lb).
02
Trumpf's series table lists a press force of 360 kN next to a bending length of 1020 mm. The table does not give a separate force for each model, so if you are looking at the longer machine, ask Trumpf to confirm its tonnage.
03
The back gauge is listed as a 6-axis CNC unit in carbon fiber, with a speed of 1,000 mm/s (2,362 ipm). The control is Touchpoint TruBend with 3D visualization, which is also named as the user interface.
04
The TruBend 7036 measures 1,900 x 1,340 x 2,380 mm (74.8 x 52.8 x 93.7 in). The TruBend 7050 measures 2,420 x 1,805 x 2,580 mm (95.3 x 71.1 x 101.6 in). Trumpf notes the small installation area and that the machines can be transported by forklift truck.
05
In the series table: 932 mm between the columns, 295 mm of usable open height and a 150 mm throat. Parts wider than the column spacing are held to the throat depth, and the open height has to cover the punch, the die and the part as it comes out.
