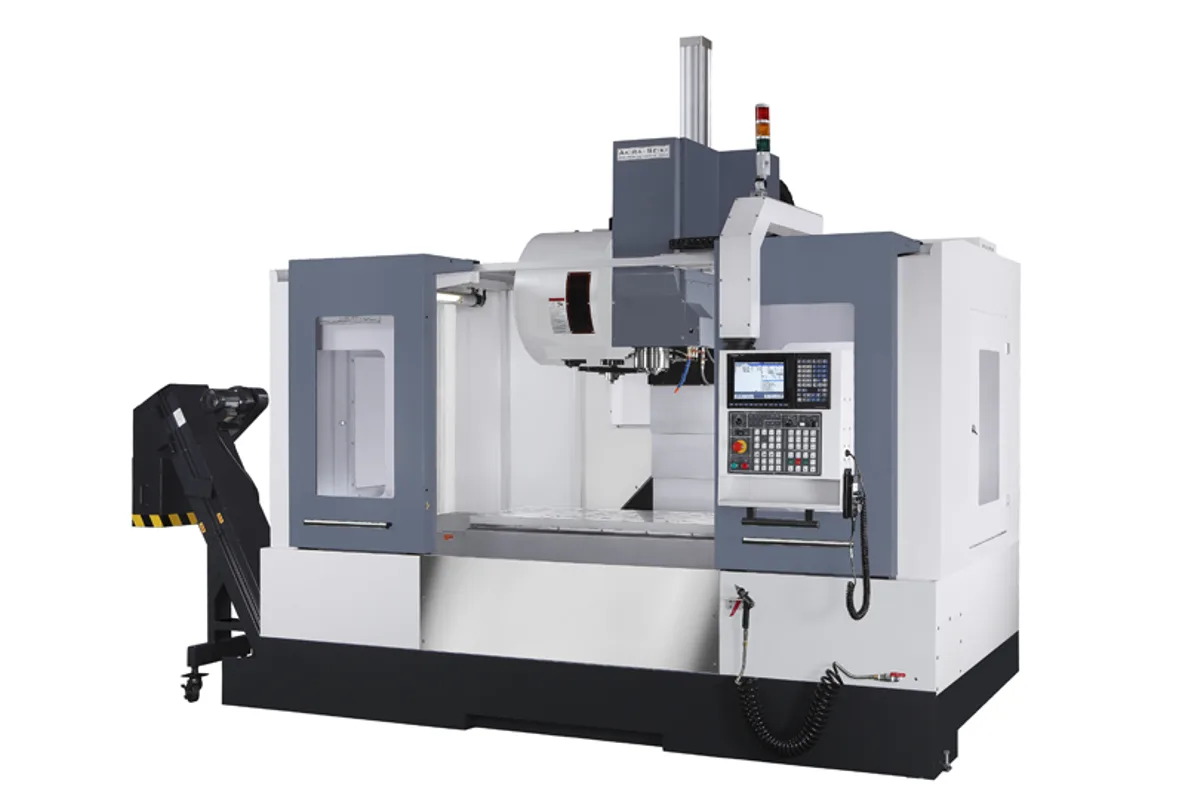

Akira Seiki SV1350
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki SV1350 cost?
Price estimate
We do not have a price for the Akira Seiki SV1350 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SV1350 is the biggest Akira Seiki SV model before the series moves to its large castings. Its 1,500 x 600 mm (59 x 23.6 in) table takes 1,500 kg (3,307 lb) as a standard load and 1,800 kg (3,968 lb) at most, and travels are 1,350 mm (53 in), 640 mm (25 in) and 660 mm (26 in) in X, Y and Z.
Weight is 8,665 kg (19,103 lb). That mass, with the oil-chilled 42 HP (31.3 kW) peak spindle, is what lets a 15,000 rpm machine also take a proper roughing cut. Large mould halves are the typical job: rough with an indexable cutter, then finish the cavity at high speed without moving the part.
There is a limit to watch. Tools cannot exceed 250 mm (9.8 in) in length or 7 kg (15.4 lb), so deep cavities need care in tool selection even though Z travel is generous. The magazine has 36T, which helps when a mould needs many small finishing cutters.
Rapid feed is 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm), cutting feed 15 / 15 / 10 m/min (591 / 591 / 394 ipm), tool change 1.9 s. Dimensions are 4,300 x 2,495 mm (169 x 98 in). The coolant tank holds 400 L (105.7 gal), and a chain type chip conveyor is listed. Power requirement: 35 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 |
| X Axis Travel | 1,350 mm (53 in) |
| Y Axis Travel | 640 mm (25 in) |
| Z Axis Travel | 660 mm (26 in) |
| Distance Spindle Nose to Table | 100~760 mm (4~30 in) |
| Spindle Center to Column Cover | 640 mm (25 in) |
| Table Size | 1,500 x 600 mm (59 x 23.6 in) |
| T-Slots | 18 mm x 100 mm pitch x 5 slots |
| Max Table Load | 1,800 kg (3,968 lb) |
| Standard Table Load | 1,500 kg (3,307 lb) |
| Spindle Motor Power | 42 HP (31.3 kW) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | BT40 |
| Spindle Cooling | Oil chilling |
| Rapid Traverse Xyz | 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) |
| Cutting Feed Rate | 15 / 15 / 10 m/min (591 / 591 / 394 ipm) |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 36T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15.4 lb) |
| Tool Change Time | 1.9 s |
| Coolant Tank Capacity | 400 L (105.7 gal) |
| Chip Disposal | Chain Type Chip Conveyor |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 4,300 x 2,495 mm (169 x 98 in) |
| Machine Weight | 8,665 kg (19,103 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,500 x 600 mm (59 x 23.6 in) table rated to 1,800 kg (3,968 lb) maximum
- 15,000 rpm with 42 HP (31.3 kW) peak for roughing and finishing in one setup
- 36T magazine for long finishing tool lists
- 660 mm (26 in) of Z with up to 760 mm from spindle nose to table
Limitations
- Tool length limit of 250 mm (9.8 in) restricts deep-cavity reach
- Rapids of 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) trail the SV1300
- 8,665 kg (19,103 lb) installed weight
- Tool weight limited to 7 kg (15.4 lb)
Best For
Frequently Asked Questions
01
Travels are 1,350 mm (53 in), 640 mm (25 in) and 660 mm (26 in). The table is 1,500 x 600 mm (59 x 23.6 in). The machine measures 4,300 x 2,495 mm (169 x 98 in) and weighs 8,665 kg (19,103 lb).
02
1,500 kg (3,307 lb) standard and 1,800 kg (3,968 lb) maximum, on five 18 mm T-slots at 100 mm pitch. That is the highest rating among the SV models below the SV1630.
03
The arm-type changer: 65 mm (2.6 in) in diameter with neighbours, 130 mm (5.1 in) without, 250 mm (9.8 in) in length and 7 kg (15.4 lb) in weight. The SV1630 and larger models accept 350 mm (13.8 in) tools.
04
The table names the AKIRA Mi:845. Positioning accuracy is listed at 0.01 mm (0.00039 in) and repeatability at ±0.003 mm (±0.00012 in), with an oil-chilled spindle.
