AXA DBZ

Specs verified 2026-10-05 · axa-maschinenbau.de Updated 2026-10-05

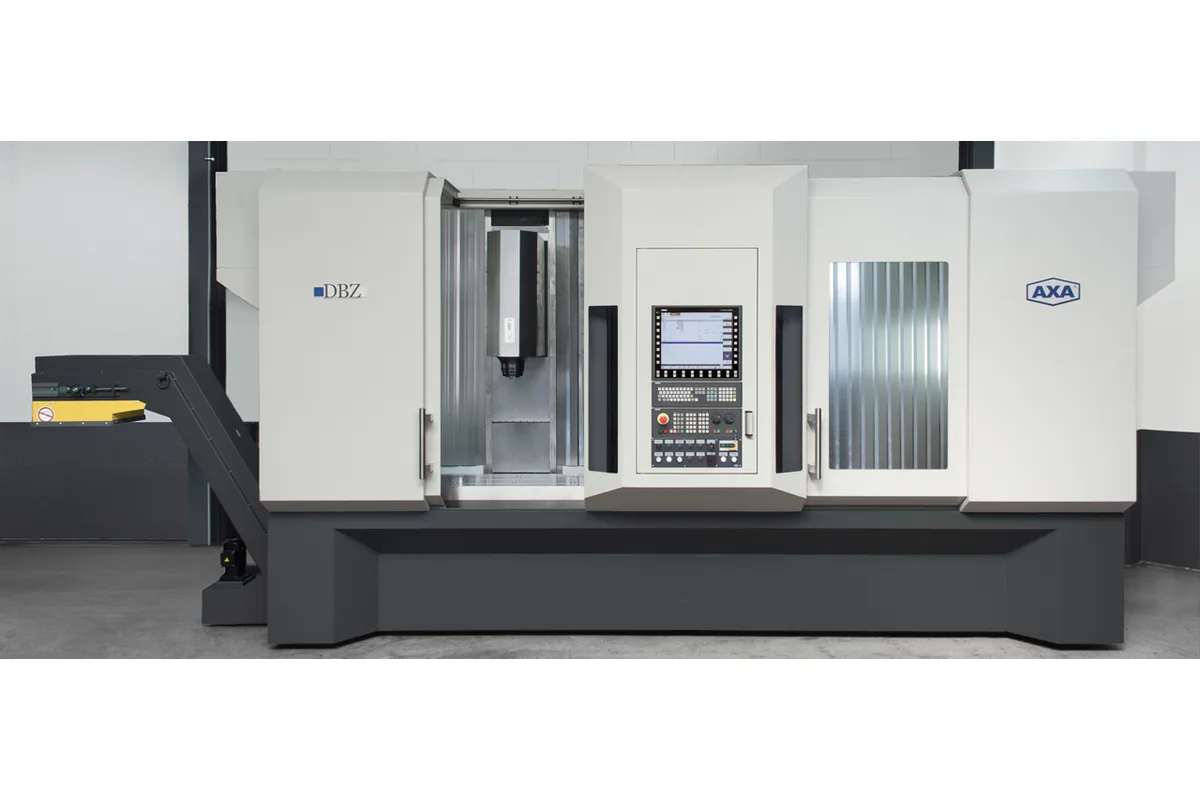

Image: axa-maschinenbau.de, AXA

Key Specifications

Max Spindle

6,000 rpm; optional up to 12,000 rpm (standard drive no. 110)

Spindle Taper

SK 40 (DIN 69871 A / DIN 69872 A); optional BT 40, HSK A63

Tool Capacity

22; optional expandable up to 30

Table Size

2 x (1,000 x 500 mm) (39.4 x 19.7 in each)

Spindle Power

30 kW (40.2 hp) max. at 40% DC (standard drive no. 110)

Accuracy

± 0.015 mm per 1,000 mm per axis X/Y/Z; optional ± 0.0075 mm

How much does the AXA DBZ cost?

Price estimate

Uncertain

We do not have a price for the AXA DBZ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AXA DBZ is a double place machining centre: one travelling column and one spindle serving two separate work areas, each with 750 mm (29.5 in) of X travel. AXA's data sheet writes the X axis as 2 x 750 mm and the clamping surface as 2 x (1,000 x 500 mm). While the spindle cuts on one side, the operator unloads and reloads the other. AXA calls this pendulum operation and aims the machine at high quantities with short set-up times.

Each station matches the small VCC in size. Y travel is 550 mm, Z is 600 mm and the spindle nose can be set between 180 mm and 780 mm above the table. Each table has three T-slots and is rated at 800 kg/m².

Only one spindle is fitted, so its duty is continuous even when a station is being loaded. The standard drive no. 110 is an SK 40 spindle with 6,000 rpm, 143 Nm and 30 kW at 40% DC, and it can be ordered with up to 12,000 rpm. Drive no. 100 (up to 15,000 rpm, 95 Nm) and drive no. 111 (191 Nm, 40 kW) are the alternatives. BT 40 and HSK A63 tool holders are optional.

AXA places the tool changer behind the control panel, between the two stations, with a 22-pocket magazine that can be expanded to 30. Positioning accuracy is ± 0.015 mm per 1,000 mm, a tighter standard value than the ± 0.02 mm of the single-station VCC.

Full Specifications

Parameter	Value
X Axis Travel	2 x 750 mm (29.5 in)
Y Axis Travel	550 mm (21.7 in)
Z Axis Travel	600 mm (23.6 in)
Distance Spindle Nose to Table	180 - 780 mm (7.1 - 30.7 in)
Table Size	2 x (1,000 x 500 mm) (39.4 x 19.7 in each)
T-Slot Width	14 mm H9 (reference slot H7)
T Slot Spacing	160 mm (6.3 in)
T Slot Count	3
Max Table Load	800 kg/m² (164 lb/ft²)
Rapid Traverse Xyz	25/25/20 m/min (984/984/787 ipm) in X/Y/Z
Max Feed Force	9,000 N (2,023 lbf)
Spindle Drive Standard	No. 110
Spindle Drives Optional	No. 100, 111
Max Spindle Speed	6,000 rpm; optional up to 12,000 rpm (standard drive no. 110)
Spindle Torque	143 Nm (105.5 lb-ft) max. at 40% DC (standard drive no. 110)
Spindle Motor Power	30 kW (40.2 hp) max. at 40% DC (standard drive no. 110)
Optional Spindle Drive 100	6,000 rpm (optional up to 15,000 rpm), 95 Nm (70.1 lb-ft), 20 kW (26.8 hp) max. at 40% DC
Optional Spindle Drive 111	6,000 rpm (optional up to 12,000 rpm), 191 Nm (140.9 lb-ft), 40 kW (53.6 hp) max. at 40% DC
Spindle Taper	SK 40 (DIN 69871 A / DIN 69872 A); optional BT 40, HSK A63
Tool Capacity	22; optional expandable up to 30
Max Tool Diameter (full magazine)	85 mm (3.3 in); 135 mm (5.3 in) with free adjacent pockets
Max Tool Length	400 mm (15.7 in)
Positioning Accuracy	± 0.015 mm per 1,000 mm per axis X/Y/Z; optional ± 0.0075 mm
Repeatability	± 0.005 mm

Specifications sourced from axa-maschinenbau.de — verified 2026-10-05

Strengths & Limitations

Strengths

Two work areas of 750 mm X travel each allow loading on one side while the other is machined
Positioning accuracy of ± 0.015 mm per 1,000 mm as standard, ± 0.0075 mm optional
Tool changer located behind the control panel, between the stations
SK 40 spindle with 143 Nm and 30 kW at 40% DC; BT 40 and HSK A63 optional
Compact footprint that AXA aims at small and medium-sized companies

Limitations

Each station is limited to 750 mm of X and a 1,000 x 500 mm clamping surface
One spindle serves both stations, so output is that of one machine with less idle time, not two
At most 30 tool pockets for the parts of both stations
Rapid traverse is 25/25/20 m/min in X/Y/Z

Best For

Series production in pendulum operation with short set-up times Small parts that fit a 1,000 x 500 mm table per station Two different set-ups run alternately on one machine SK 40 work with up to 30 tools

Frequently Asked Questions

01 What does "double place machining centre" mean on the DBZ?

The DBZ has two work areas side by side and one travelling column that moves between them. AXA lists the X travel as 2 x 750 mm and the clamping surface as 2 x (1,000 x 500 mm). In pendulum operation one station is machined while the other is loaded.

02 What are the travels per station?

Each station has 750 mm (29.5 in) of X travel, with 550 mm (21.7 in) of Y and 600 mm (23.6 in) of Z. The distance between table and spindle nose runs from 180 mm to 780 mm.

03 How is the DBZ different from the DBZ 2?

The DBZ 2 has larger stations: 2 x 900 mm of X, 600 mm of Y and 700 mm of Z, on tables of 1,000 x 600 mm with four T-slots. The DBZ has 2 x 750 mm, 550 mm and 600 mm, on 1,000 x 500 mm tables with three T-slots. Spindle drives and magazine are the same.

04 Which tool holders does the DBZ accept?

SK 40 to DIN 69871 A / DIN 69872 A is standard. BT 40 and HSK A63 are listed as options. The magazine takes tools up to 85 mm in diameter, 135 mm with free adjacent pockets, and up to 400 mm in length.
