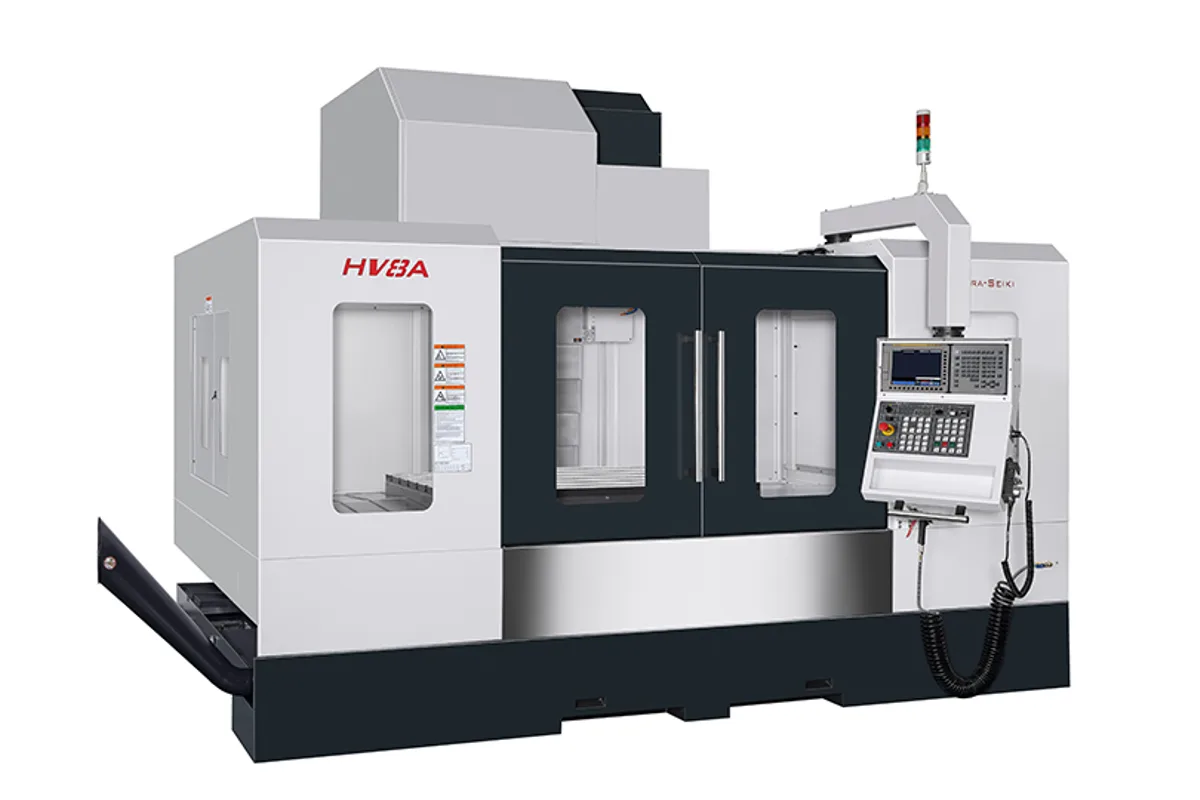

Akira Seiki HV8A
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki HV8A cost?
Price estimate
We do not have a price for the Akira Seiki HV8A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Akira Seiki's HV8A carries a 2,150 x 800 mm (84.7 x 31.5 in) table over 2,060 mm (81.1 in) of X travel. Y is 850 mm (33.5 in) and Z is 815 mm (32 in). At 14,410 kg (31,769 lb) it is a heavy machine, and it is meant for heavy parts: the table is rated 2,700 kg (5,952 lb) standard and 3,240 kg (7,142 lb) maximum.
Long 50-taper verticals of this kind earn their keep on weldments, press plates, machine beds and mould frames, work that is too long for a mid-size machine and does not need a bridge mill. The spindle is BT50 / CAT50 with 42 HP (31.3 kW) peak and 35 HP (26.1 kW) on the 30-minute rating. Top speed is 8,000 rpm; a 6,000 rpm spindle is optional.
Most of the specification is carried over from the HV6A, which is the shorter machine on the same Y and Z. The differences are X, the table rating, a 700 L (185 gal) coolant tank and the floor area, 4,950 x 3,525 mm (195 x 139 in).
Tools up to 15 kg (33 lb), 350 mm (13.8 in) long and 200 mm (7.9 in) in diameter with empty neighbours fit the 28T changer. Accuracy is listed at 0.015 mm (0.00059 in) positioning and ±0.005 mm (±0.00020 in) repeatability. The power requirement is 35 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 2,060 mm (81.1 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 815 mm (32 in) |
| Distance Spindle Nose to Table | 120~935 mm (5~37 in) |
| Spindle Center to Column Cover | 865 mm (34 in) |
| Table Size | 2,150 x 800 mm (84.7 x 31.5 in) |
| T-Slots | 18 mm x 125 mm pitch x 6 slots |
| Max Table Load | 3,240 kg (7,142 lb) |
| Standard Table Load | 2,700 kg (5,952 lb) |
| Spindle Motor Power | 42 HP (31.3 kW) |
| Spindle Power 30 Min | 35 HP (26.1 kW) (30 min) |
| Max Spindle Speed | 8,000 rpm / 6,000 rpm (OPT) |
| Spindle Taper | BT50 / CAT50 |
| Spindle Cooling | Oil chilling |
| Cutting Feed Rate | 8 / 8 / 8 m/min (315 / 315 / 315 ipm) |
| Positioning Accuracy | 0.015 mm (0.00059 in) |
| Repeatability | ±0.005 mm (±0.00020 in) |
| Tool Capacity | 28T |
| Max Tool Diameter (full magazine) | 100 mm (3.9 in) |
| Max Tool Diameter Without Adjacent Tools | 200 mm (7.9 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Change Time | 3.5 s |
| Coolant Tank Capacity | 700 L (185 gal) |
| Chip Disposal | Drawer |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 4,950 x 3,525 mm (195 x 139 in) |
| Machine Weight | 14,410 kg (31,769 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,060 mm (81.1 in) of X travel with a 50-taper spindle
- Table rated to 3,240 kg (7,142 lb) maximum
- 42 HP (31.3 kW) peak, 35 HP (26.1 kW) for 30 minutes
- 700 L (185 gal) coolant tank
Limitations
- Machine weight of 14,410 kg (31,769 lb) needs a suitable foundation and rigging
- 8,000 rpm maximum spindle speed
- Repeatability of ±0.005 mm (±0.00020 in)
- Chips are collected in a drawer on a machine with a 2,150 mm table
Best For
Frequently Asked Questions
01
2,060 mm (81.1 in) in X, 850 mm (33.5 in) in Y and 815 mm (32 in) in Z, over a 2,150 x 800 mm (84.7 x 31.5 in) table. Spindle nose to table distance is 120~935 mm (5~37 in).
02
14,410 kg (31,769 lb). The shorter HV6A weighs 12,475 kg (27,503 lb) and the longer HV10A 19,314 kg (42,580 lb). Dimensions of the HV8A are 4,950 x 3,525 mm (195 x 139 in).
03
BT50 or CAT50 holders in a 28T arm-type changer. Limits are 100 mm (3.9 in) in diameter, 200 mm (7.9 in) without a neighbouring tool, 350 mm (13.8 in) in length and 15 kg (33 lb). A change takes 3.5 s.
04
Same travels and table size, different spindle class. The V8XP has a BT40 spindle that reaches 12,000 rpm; the HV8A has the BT50 / CAT50 spindle at 8,000 rpm and takes tools more than twice as heavy.
