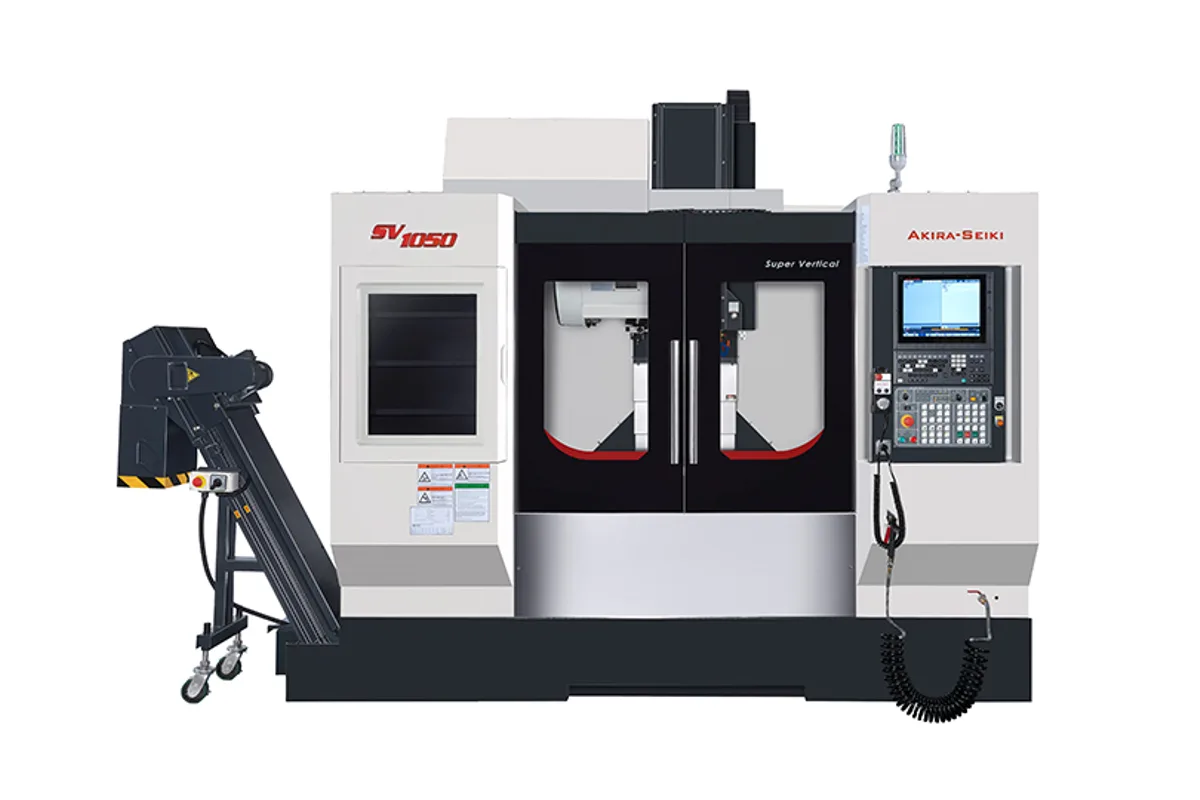

Akira Seiki SV1050
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki SV1050 cost?
Price estimate
We do not have a price for the Akira Seiki SV1050 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A metre-class table moving at 48 m/min is the proposition of the Akira Seiki SV1050. X travel is 1,050 mm (41.3 in), with 540 mm (21.3 in) of Y and 560 mm (22 in) of Z; the table is 1,200 x 480 mm (47.2 x 19 in).
The machine weighs 7,158 kg (15,781 lb). Its rapid feed, 48 / 48 / 36 m/min (1,890 / 1,890 / 1,417 ipm), matches the lighter SV815, which is notable because the bigger-saddle SV1150 drops to 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm). Among the SV models with more than a metre of X, only this one and the SV1300 keep the fast axes.
The spindle is BT40, oil chilled, 15,000 rpm, 42 HP (31.3 kW) peak. Tooling comes from a 36T magazine in 1.9 s. With that combination a row of fixtures can be worked through quickly: the long X holds the parts, and the short non-cutting times keep the spindle in the cut.
Table capacity is 980 kg (2,160 lb) standard and 1,176 kg (2,592 lb) maximum. The footprint is 3,800 x 2,240 mm (150 x 88 in). A chain type chip conveyor and a 350 L (92.5 gal) coolant tank are listed, and the machine needs 35 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 |
| X Axis Travel | 1,050 mm (41.3 in) |
| Y Axis Travel | 540 mm (21.3 in) |
| Z Axis Travel | 560 mm (22 in) |
| Distance Spindle Nose to Table | 75~635 mm (3~25 in) |
| Spindle Center to Column Cover | 550 mm (21.7 in) |
| Table Size | 1,200 x 480 mm (47.2 x 19 in) |
| T-Slots | 18 mm x 80 mm pitch x 5 slots |
| Max Table Load | 1,176 kg (2,592 lb) |
| Standard Table Load | 980 kg (2,160 lb) |
| Spindle Motor Power | 42 HP (31.3 kW) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | BT40 |
| Spindle Cooling | Oil chilling |
| Rapid Traverse Xyz | 48 / 48 / 36 m/min (1,890 / 1,890 / 1,417 ipm) |
| Cutting Feed Rate | 15 / 15 / 10 m/min (591 / 591 / 394 ipm) |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 36T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15.4 lb) |
| Tool Change Time | 1.9 s |
| Coolant Tank Capacity | 350 L (92.5 gal) |
| Chip Disposal | Chain Type Chip Conveyor |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 3,800 x 2,240 mm (150 x 88 in) |
| Machine Weight | 7,158 kg (15,781 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,050 mm (41.3 in) of X with 48 / 48 / 36 m/min (1,890 / 1,890 / 1,417 ipm) rapids
- 15,000 rpm spindle with 42 HP (31.3 kW) peak
- 36T magazine, 1.9 s tool change
- Chain type chip conveyor listed in the table
Limitations
- Y travel is 540 mm (21.3 in); the SV1150 has 640 mm (25 in)
- 350 L (92.5 gal) coolant tank is the same size as on the SV815
- 7 kg (15.4 lb) maximum tool weight
- Power requirement of 35 kVA
Best For
Frequently Asked Questions
01
1,050 mm (41.3 in) in X, 540 mm (21.3 in) in Y and 560 mm (22 in) in Z. The table is 1,200 x 480 mm (47.2 x 19 in) and the spindle nose to table distance is 75~635 mm (3~25 in).
02
It depends on depth against speed. The SV1150 has 640 mm (25 in) of Y, 660 mm (26 in) of Z and a 1,300 x 600 mm (51.1 x 23.6 in) table, but its rapids are 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm). The SV1050 is narrower and faster.
03
7,158 kg (15,781 lb). Dimensions are 3,800 x 2,240 mm (150 x 88 in). Table load is 980 kg (2,160 lb) standard and 1,176 kg (2,592 lb) maximum.
04
15 / 15 / 10 m/min (591 / 591 / 394 ipm) for X / Y / Z. Positioning accuracy is listed at 0.01 mm (0.00039 in) and repeatability at ±0.003 mm (±0.00012 in).
