Vision Wide Vertical Machining Centers (VMC)

Vision Wide MS-2627

Q: How much does the Vision Wide MS-2627 cost?

The price estimate for the Vision Wide MS-2627 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-ms-2627#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

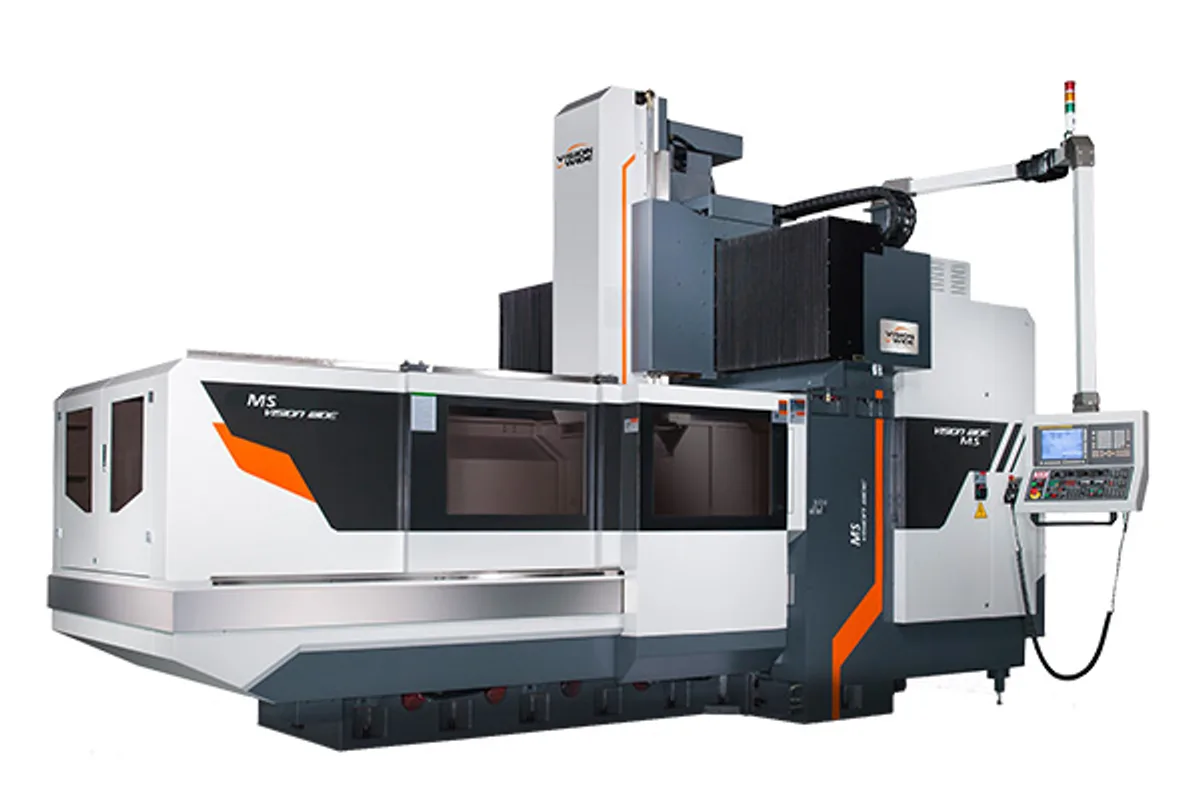

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

2,500x1,800 mm (98.4x70.9 in)

x axis travel

2,600 mm (102.4 in)

y axis travel

2,700 mm (106.3 in)

z axis travel box way

800/1,020 mm (31.5/40.2 in)(Opt.)

max table load

9,000 kg (19,841 lb)

spindle power cont 30 min

18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)

How much does the Vision Wide MS-2627 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MS-2627 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Side milling with an attachment head is the job the Vision Wide MS-2627 is laid out for. It has 2,700 mm (106.3 in) of Y travel over a table 1,800 mm (70.9 in) wide, and the option list provides a Z axis travel of 1,020mm on the box way spindle head for AC head attachment.

Both figures serve the head. An angle head adds length below the spindle nose, so the standard 800 mm of Z shortens in effect once it is fitted; the longer stroke gives it back. And the head has to clear the edge of the part before it comes down, which is what the travel beyond the table is for.

The list also notes that the spindle ring cutting coolant device is for machines with no head attachment, and that the 20/70 bar through-spindle coolant is for the vertical spindle. Coolant at the attachment therefore needs the tool holder interface options, or mist.

X travel is 2,600 mm (102.4 in). The table is 2,500x1,800 mm (98.4x70.9 in) for 9,000 kg (19,841 lb). The spindle is the 6,000rpm 2-step gear type with 18.5/22 kW (24.8/29.5 hp), and rapid traverse is X/Y/Z : 24/20/15 m/min. The page does not list the heads themselves.

Full Specifications

Parameter	Value
X Axis Travel	2,600 mm (102.4 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel Box Way	800/1,020 mm (31.5/40.2 in)(Opt.)
Table Size	2,500x1,800 mm (98.4x70.9 in)
Max Table Load	9,000 kg (19,841 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	6,000/4,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xyz	X/Y/Z : 24/20/15 m/min
Tool Capacity Floor Standing Vertical Tool Change	32/40 pcs(Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Optional Z axis travel 1,020mm for AC head attachment
2,700 mm (106.3 in) of Y travel over an 1,800 mm (70.9 in) wide table
2,500x1,800 mm (98.4x70.9 in) table for 9,000 kg (19,841 lb)
Coolant through tool holder interface available

Limitations

Attachment heads are not listed on the page
Spindle ring coolant is only for machines with no head attachment
Y rapid of 20 m/min, slower than the X axis

Best For

Side milling with an attachment head Housings and blocks needing top and side faces Parts up to 9,000 kg (19,841 lb)

Frequently Asked Questions

01 Can the Vision Wide MS-2627 take an angle head?

The option list refers to an AC head attachment, offering Z axis travel 1,020mm on the box way spindle head for it. The heads themselves are not described on the MS page, so ask Vision Wide what is available.

02 What are the MS-2627 travels?

X is 2,600 mm (102.4 in), Y is 2,700 mm (106.3 in) and Z is 800 mm, with 1,020 mm as an option on the box way head.

03 What table does the MS-2627 have?

A 2,500x1,800 mm (98.4x70.9 in) table rated for 9,000 kg (19,841 lb). The MS-2623 has a 2,500x1,500 mm (98.4x59.1 in) table with the same load.

04 How is coolant delivered on the MS-2627?

A cutting fluid cooling system is standard. Options are a spindle ring coolant device for machines with no head attachment, a coolant through spindle system 20/70 bar for the vertical spindle, tool holder coolant interfaces and oil mist.
