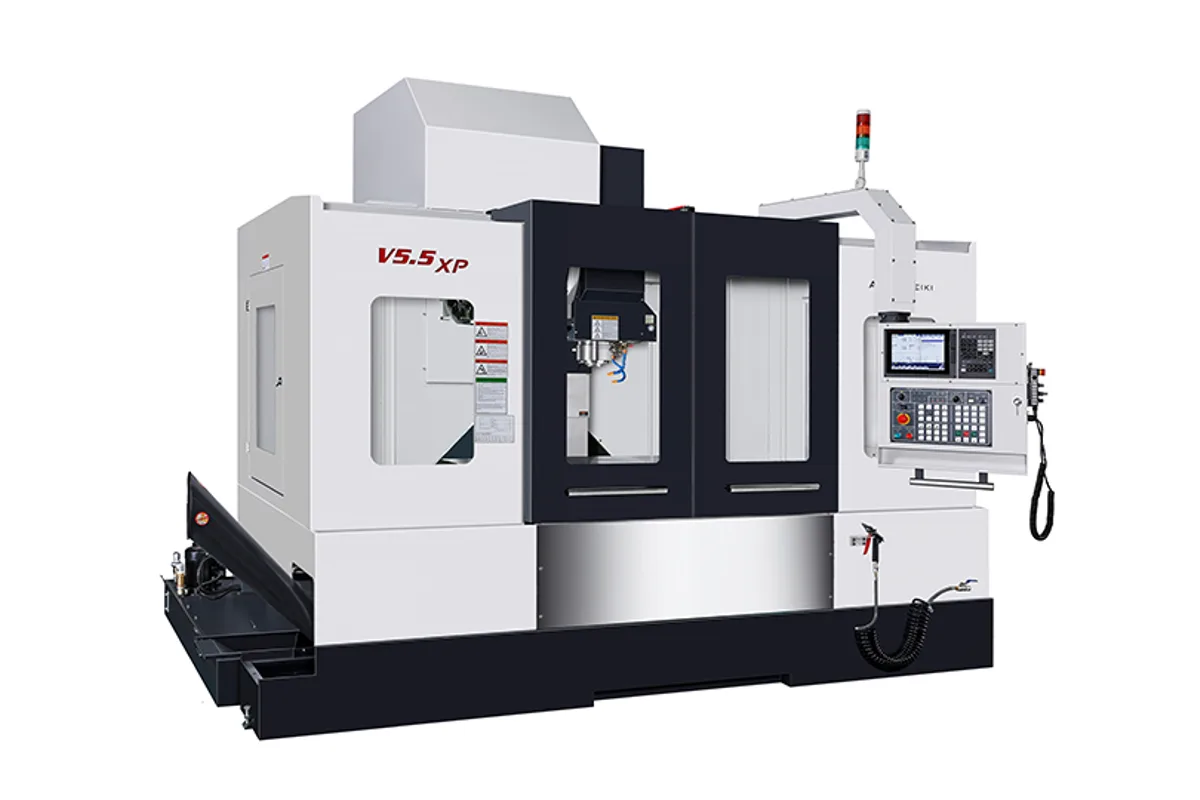

Akira Seiki V5.5XP
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki V5.5XP cost?
Price estimate
We do not have a price for the Akira Seiki V5.5XP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki V5.5XP is the largest 40-taper machine in the V series before the range jumps to the bridge-sized V6XP. It offers 1,350 mm (53 in) of X travel, 640 mm (25 in) of Y and 660 mm (26 in) of Z, with a 1,500 x 600 mm (59 x 23.6 in) table.
Table capacity is the headline. Standard loading is 1,500 kg (3,307 lb); maximum loading is 1,800 kg (3,968 lb). Five 18 mm T-slots at 100 mm pitch run the length of the table, and there is 100~760 mm (4~30 in) from spindle nose to table surface. A large mould half or a welded frame fits, and so do two smaller jobs set up side by side.
Spindle taper is listed as BT40 / CAT40 on this model, the only V-series page that names both. Power follows the series pattern: 30 HP (22.4 kW) peak and 10,000 rpm for the V, 35 HP (26.1 kW) peak and 12,000 rpm for the XP, 8,000 rpm as an option.
The 28T arm changer swaps tools in 2.2 s and takes holders up to 7 kg (15 lb). Coolant tank capacity is 400 L (105.7 gal); chip disposal is drawer or chip screw. The supply needed is 30 kVA with 0.5 MPa (72.5 psi) air, the same as the V3XP at the bottom of this spindle class.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| X Axis Travel | 1,350 mm (53 in) |
| Y Axis Travel | 640 mm (25 in) |
| Z Axis Travel | 660 mm (26 in) |
| Distance Spindle Nose to Table | 100~760 mm (4~30 in) |
| Spindle Center to Column Cover | 640 mm (25 in) |
| Table Size | 1,500 x 600 mm (59 x 23.6 in) |
| T-Slots | 18 mm x 100 mm pitch x 5 slots |
| Max Table Load | 1,800 kg (3,968 lb) |
| Standard Table Load | 1,500 kg (3,307 lb) |
| Spindle Motor Power | 30 HP (22.4 kW) (V); 35 HP (26.1 kW) (XP) |
| Max Spindle Speed | 10,000 rpm (V); 12,000 rpm (XP); 8,000 rpm (OPT) |
| Spindle Taper | BT40 / CAT40 |
| Positioning Accuracy | 0.01 mm (0.00039 in) |
| Repeatability | ±0.003 mm (±0.00012 in) |
| Tool Capacity | 28T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.2 s |
| Coolant Tank Capacity | 400 L (105.7 gal) |
| Chip Disposal | Drawer / Chip Screw |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 30 kVA |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Table rated to 1,800 kg (3,968 lb) maximum
- 1,350 mm (53 in) x 640 mm (25 in) x 660 mm (26 in) travels
- Spindle taper listed as BT40 / CAT40
- 35 HP (26.1 kW) peak and 12,000 rpm in the XP version
Limitations
- A 40-taper spindle limits heavy roughing on 1,500 kg parts
- Tool length is capped at 250 mm (9.8 in) under 660 mm (26 in) of Z
- Two unlabelled sets of dimensions and weights on the maker's page leave the footprint to be confirmed
- The 28T magazine is the only capacity listed
Best For
Frequently Asked Questions
01
The table is 1,500 x 600 mm (59 x 23.6 in). Standard loading is 1,500 kg (3,307 lb) and maximum loading 1,800 kg (3,968 lb). T-slots are 18 mm wide at 100 mm pitch, five in all.
02
The spindle taper row for this model reads BT40 / CAT40, so both are listed. The other V-series pages name only BT40. Specify the taper when ordering, because the retention knobs and holders differ.
03
The V6XP is a much bigger machine: 1,630 mm (64.2 in) of X, 850 mm (33.5 in) of Y and 815 mm (32 in) of Z, on a 1,750 x 800 mm (69 x 31.5 in) table rated to 2,760 kg (6,085 lb) maximum. Spindle power options are the same.
04
10,000 rpm on the V version, 12,000 rpm on the XP version and 8,000 rpm as an option. Peak power is 30 HP (22.4 kW) for the V and 35 HP (26.1 kW) for the XP.
