Litz VC-800A
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Litz VC-800A cost?
Price estimate
We do not have a price for the Litz VC-800A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz VC-800A is a general-purpose vertical machining center with 800 mm (31.5 in) of X travel, 500 mm (19.7 in) of Y and 540 mm (21.3 in) of Z. Its 10,000 rpm BT-40 spindle is belt-driven from an 11 / 15 kW (14.8 / 20.1 hp) motor.
That motor is the reason to look at this model. It is twice the rating of the VC-600 below it, on a machine that weighs 5,300 kg (11,684 lb). For a job shop cutting steel as often as aluminium, the VC-800A has the power to run a 40-taper face mill properly while staying small enough for a tight floor.
The option list is long on spindles. Besides a 12,000 rpm belt spindle, Litz offers direct-drive spindles at 12,000 rpm and 15,000 rpm and built-in spindles at 15,000 rpm and 20,000 rpm. A shop can therefore buy the same casting as a torque machine or as a speed machine. The magazine can also grow from the standard 24T to a 32T arm type.
Table size is 910 x 500 mm (35.8 x 19.7 in) with a 500 kg (1,102 lb) limit. Spindle nose to table distance runs from 150 to 690 mm (5.9 to 27.2 in), so short tools on low parts may need a sub-plate. The axis motors are 3 / 3 / 4 kW and rapids are 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm). The coolant tank holds 250 L. Supply is 25 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 540 mm (21.3 in) |
| Distance Spindle Nose to Table | 150 to 690 mm (5.9 to 27.2 in) |
| Max Spindle Speed | 10,000 rpm |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | 80 / 125 mm (3.1 / 4.9 in) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Method | ARM |
| Tool Shank | BT-40 |
| Spindle Motor Power | 11 / 15 kW (14.8 / 20.1 hp) |
| Axis Motors Xyz | 3 / 3 / 4 kW |
| Table Size | 910 x 500 mm (35.8 x 19.7 in) |
| Max Table Load | 500 kg (1,102 lb) |
| T-Slots | 5 x 18 x 100 mm |
| Cutting Feed Rate | 1-20,000 mm/min (up to 787 ipm) |
| Machine Weight | 5,300 kg (11,684 lb) |
| Power Requirement | 25 kVA |
| Coolant Tank Capacity | 250 L |
| Compressed Air | 6 kg/cm² |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 11 / 15 kW (14.8 / 20.1 hp) spindle motor on an 800 mm machine
- Five optional spindles, from 12,000 rpm belt to 20,000 rpm built-in
- 3 / 3 / 4 kW axis motors with 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) rapids
- 32T arm type magazine available as an option
Limitations
- Spindle nose stays 150 mm (5.9 in) or more above the table
- Tool weight is limited to 7 kg (15 lb)
- Chip conveyor and chip cart are options
- 500 kg (1,102 lb) table load
Best For
Frequently Asked Questions
01
The spindle motor is listed at 11 / 15 kW (14.8 / 20.1 hp). The standard spindle is belt-driven at 10,000 rpm with BT-40 tooling and a dust-proof air-sealing system.
02
A 12,000 rpm belt spindle, direct-drive spindles at 12,000 rpm and 15,000 rpm, and built-in spindles at 15,000 rpm and 20,000 rpm are all listed as options.
03
The table measures 910 x 500 mm (35.8 x 19.7 in) and carries 500 kg (1,102 lb). Travels are 800 x 500 x 540 mm, and the T-slots are given as 5 x 18 x 100 mm.
04
The VC-1000A has 1,020 mm (40.2 in) of X, 560 mm (22.0 in) of Y and 600 mm (23.6 in) of Z, and a 750 kg (1,653 lb) table load. Both share the 10,000 rpm belt spindle and the 11 / 15 kW motor.
More from Litz
Other Vertical Machining Centers (VMC)
AWEA VP-3012HS
AXA DBZ
Vision Wide MS-2627
Brother TC-S2C

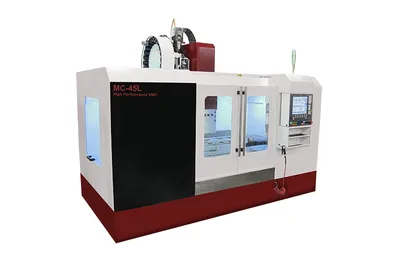

Fryer MC-45L
