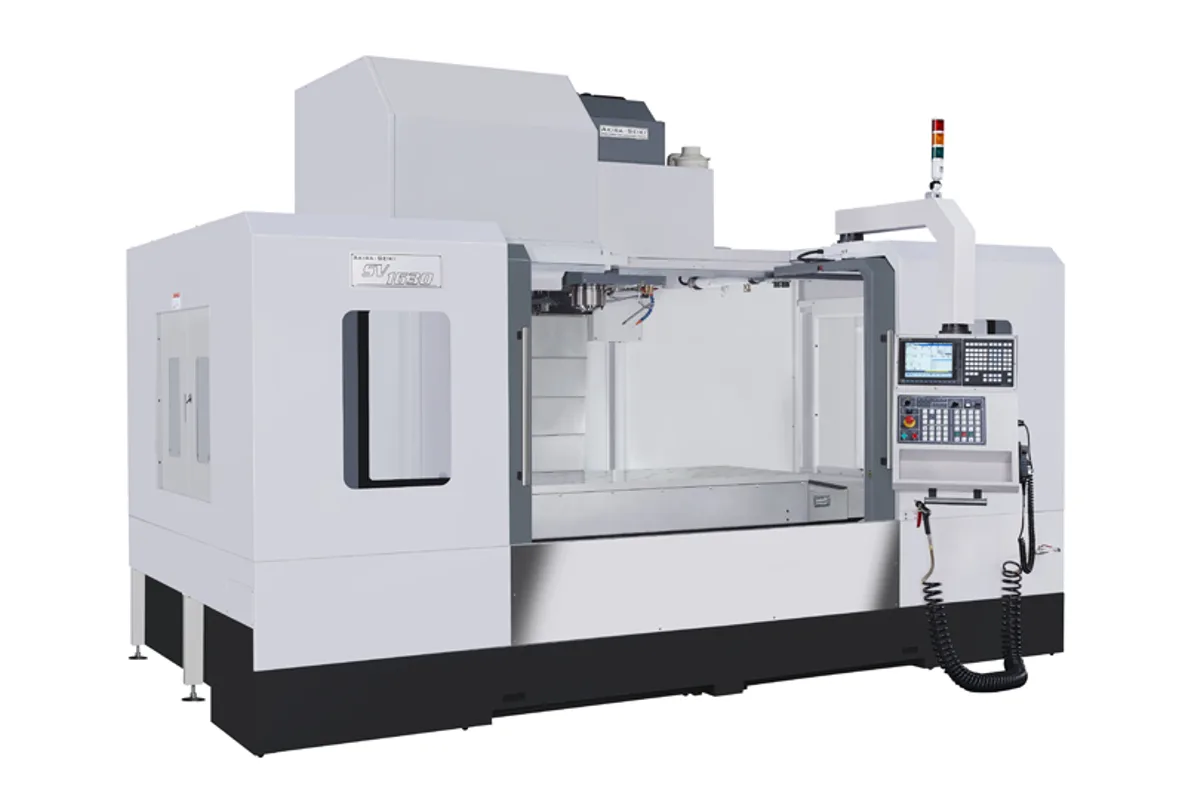

Akira Seiki SV1630
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki SV1630 cost?
Price estimate
We do not have a price for the Akira Seiki SV1630 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Akira Seiki's SV1630 puts a 15,000 rpm spindle over a 1,750 x 800 mm (69 x 31.5 in) table. Travels are 1,630 mm (64.2 in) in X, 850 mm (33.5 in) in Y and 815 mm (32 in) in Z, and the machine weighs 12,575 kg (27,723 lb).
It is the first of three large SV machines, and several things change at this size. Tool length capacity rises to 350 mm (13.8 in), which the SV1350 and the models below it, held to 250 mm (9.8 in), cannot match. The accuracy class moves to 0.015 mm (0.00059 in) positioning and ±0.005 mm (±0.00020 in) repeatability. The coolant tank grows to 640 L (169 gal).
The spindle itself is unchanged: BT40, oil chilled, 42 HP (31.3 kW) peak. So is the 36T magazine with its 1.9 s change. Rapids are 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm).
Who needs high speed at this size? Makers of large aluminium parts, pattern and model shops, and mould shops finishing big cavities with small ball-nose cutters, where surface speed depends on rpm. The table is rated 2,300 kg (5,071 lb) standard and 2,760 kg (6,085 lb) maximum. Dimensions: 5,100 x 3,540 mm (201 x 139 in). Supply: 35 kVA. Chips: chain type conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 |
| X Axis Travel | 1,630 mm (64.2 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 815 mm (32 in) |
| Distance Spindle Nose to Table | 100~915 mm (4~36 in) |
| Spindle Center to Column Cover | 865 mm (34 in) |
| Table Size | 1,750 x 800 mm (69 x 31.5 in) |
| T-Slots | 18 mm x 125 mm pitch x 6 slots |
| Max Table Load | 2,760 kg (6,085 lb) |
| Standard Table Load | 2,300 kg (5,071 lb) |
| Spindle Motor Power | 42 HP (31.3 kW) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Taper | BT40 |
| Spindle Cooling | Oil chilling |
| Rapid Traverse Xyz | 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) |
| Cutting Feed Rate | 15 / 15 / 10 m/min (591 / 591 / 394 ipm) |
| Positioning Accuracy | 0.015 mm (0.00059 in) |
| Repeatability | ±0.005 mm (±0.00020 in) |
| Tool Capacity | 36T |
| Max Tool Diameter (full magazine) | 65 mm (2.6 in) |
| Max Tool Diameter Without Adjacent Tools | 130 mm (5.1 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 7 kg (15.4 lb) |
| Tool Change Time | 1.9 s |
| Coolant Tank Capacity | 640 L (169 gal) |
| Chip Disposal | Chain Type Chip Conveyor |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Power Requirement | 35 kVA |
| Machine Dimensions | 5,100 x 3,540 mm (201 x 139 in) |
| Machine Weight | 12,575 kg (27,723 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 15,000 rpm over a 1,750 x 800 mm (69 x 31.5 in) table
- 850 mm (33.5 in) of Y and 815 mm (32 in) of Z travel
- Tools up to 350 mm (13.8 in) long
- Table rated to 2,760 kg (6,085 lb) maximum
- 640 L (169 gal) coolant tank with chain type chip conveyor
Limitations
- Positioning accuracy of 0.015 mm (0.00059 in), looser than the SV1350
- BT40 taper and a 7 kg (15.4 lb) tool limit on a 12,575 kg (27,723 lb) machine
- Needs 5,100 x 3,540 mm (201 x 139 in) of floor
- Adjacent tool diameter stays at 65 mm (2.6 in)
Best For
Frequently Asked Questions
01
1,630 mm (64.2 in) in X, 850 mm (33.5 in) in Y and 815 mm (32 in) in Z. The spindle nose to table distance is 100~915 mm (4~36 in) and the table is 1,750 x 800 mm (69 x 31.5 in).
02
03
350 mm (13.8 in), with a maximum diameter of 65 mm (2.6 in), or 130 mm (5.1 in) without neighbours, and a weight limit of 7 kg (15.4 lb). The magazine holds 36T.
04
12,575 kg (27,723 lb). It measures 5,100 x 3,540 mm (201 x 139 in), needs 35 kVA and 0.5 MPa (72.5 psi) air, and carries 640 L (169 gal) of coolant.
