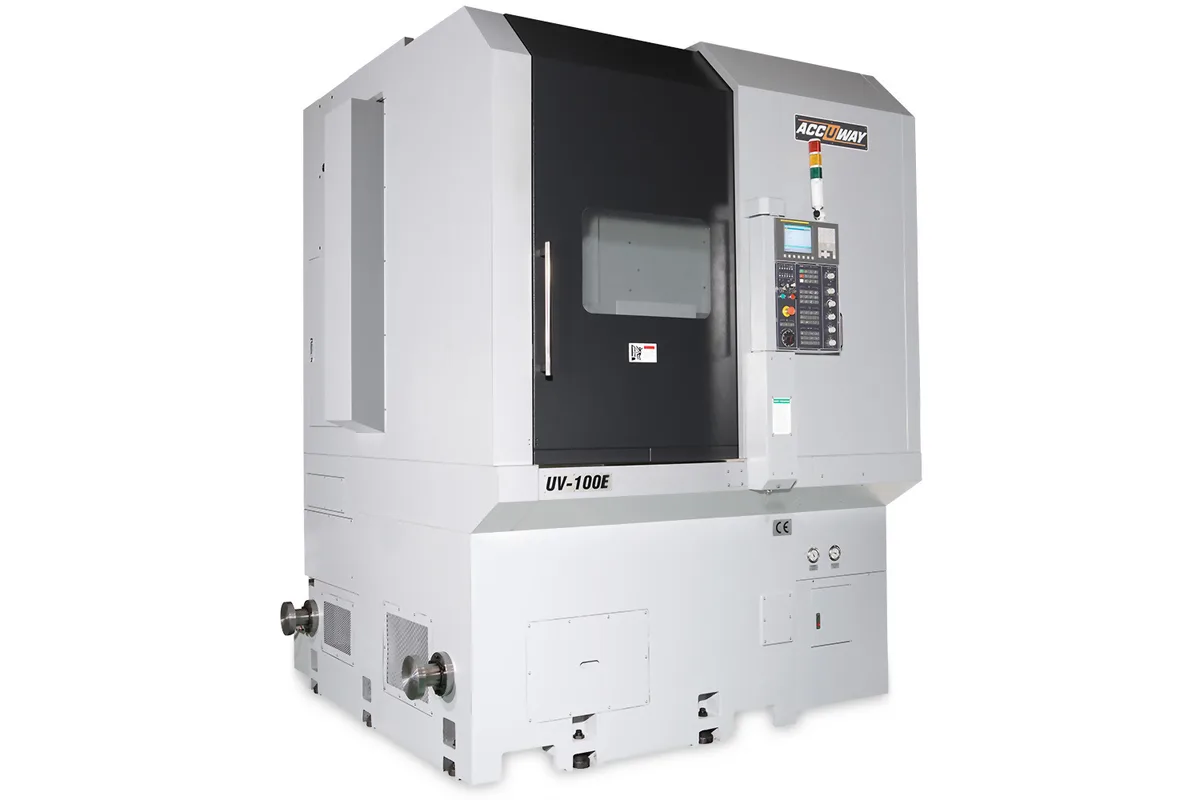

Accuway UV-100E
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
max turning diameter
How much does the Accuway UV-100E cost?
Price estimate
We do not have a price for the Accuway UV-100E that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
One metre of turning diameter and a geared spindle: the Accuway UV-100E is the large turret-type vertical turning center in the range. Maximum turning diameter is 1,000 mm (39.4 in), swing over bed is 1,100 mm (43.3 in) and turning length is 700 mm (27.6 in).
The drive is what separates it from the UV-75E. The spindle drive system reads 2-step gearbox + Belt, on an A2-15 nose, with a top speed of 1,200 rpm. Motor power is 30/37 kW (40.2/49.6 hp), continuous and 30 min, and the table brackets two larger ratings after it: 37/45 and 45/55 kW. The options list names one of them directly, a spindle power upgrade to 45/55 kW.
With a gearbox, that power is available as torque at the low speeds a metre-wide casting demands. Surface speed at the rim of a large part is reached at a few hundred rpm, and an interrupted roughing cut there is where a belt-only spindle runs out.
The guideway type is Box way. X travel is 550 mm (21.7 in) at 15 m/min (591 in/min) and Z is 800 mm (31.5 in) at 7 m/min (276 in/min). The chuck row reads 24 (32/40) in. Tooling is a 12-station BOT turret with hydraulic drive, 32 mm (1.3 in) square and 50 mm (2.0 in) round shanks, with a 12 station servo turret optional. The machine weighs 16,000 kg (35,273 lb) and is 4.2 m high.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 1,100 mm (43.3 in) |
| Max Turning Diameter | 1,000 mm (39.4 in) |
| Max Turning Length | 700 mm (27.6 in) |
| Guideway Type | Box way |
| Spindle Nose | A2-15 |
| Chuck Size | 24 (32/40) in |
| Max Spindle Speed | 1,200 rpm |
| Spindle Drive | 2-step gearbox + Belt |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45, 45/55 kW (49.6/60.3, 60.3/73.8 hp) |
| X Axis Travel | 550 mm (21.7 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse X | 15 m/min (591 in/min) |
| Rapid Traverse Z | 7 m/min (276 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Machine Dimensions | L x W x H: 3.1 x 3.7 x 4.2 m (122.0 x 145.7 x 165.4 in) |
| Machine Weight | 16,000 kg (35,273 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 mm (39.4 in) maximum turning diameter
- 2-step gearbox + Belt spindle drive with a 30/37 kW (40.2/49.6 hp) motor
- Spindle power upgrade to 45/55 kW is on the options list
- Box way guideways on a 16,000 kg (35,273 lb) machine
- Chuck listed as 24 in, with 32 in and 40 in bracketed
Limitations
- Top spindle speed of 1,200 rpm
- X rapid of 15 m/min (591 in/min) and Z rapid of 7 m/min (276 in/min)
- Hydraulic BOT turret, no rotary tools in the table
- Turning length of 700 mm (27.6 in) is no more than the UV-75E
Best For
Frequently Asked Questions
01
The motor is listed at 30/37 kW (40.2/49.6 hp), continuous and 30 min, with 37/45 and 45/55 kW in brackets. A spindle power upgrade to 45/55 kW is an optional accessory. The drive is a 2-step gearbox plus belt, and the maximum speed is 1,200 rpm.
02
The chuck diameter row reads 24 (32/40) in on an A2-15 spindle nose. An upgrade to a non-through hole 3-jaw 32" (40") hydraulic chuck and cylinder is listed among the options.
03
X travel is 550 mm (21.7 in) and Z travel is 800 mm (31.5 in). Rapid traverse is 15 m/min (591 in/min) in X and 7 m/min (276 in/min) in Z. Maximum turning length is 700 mm (27.6 in).
