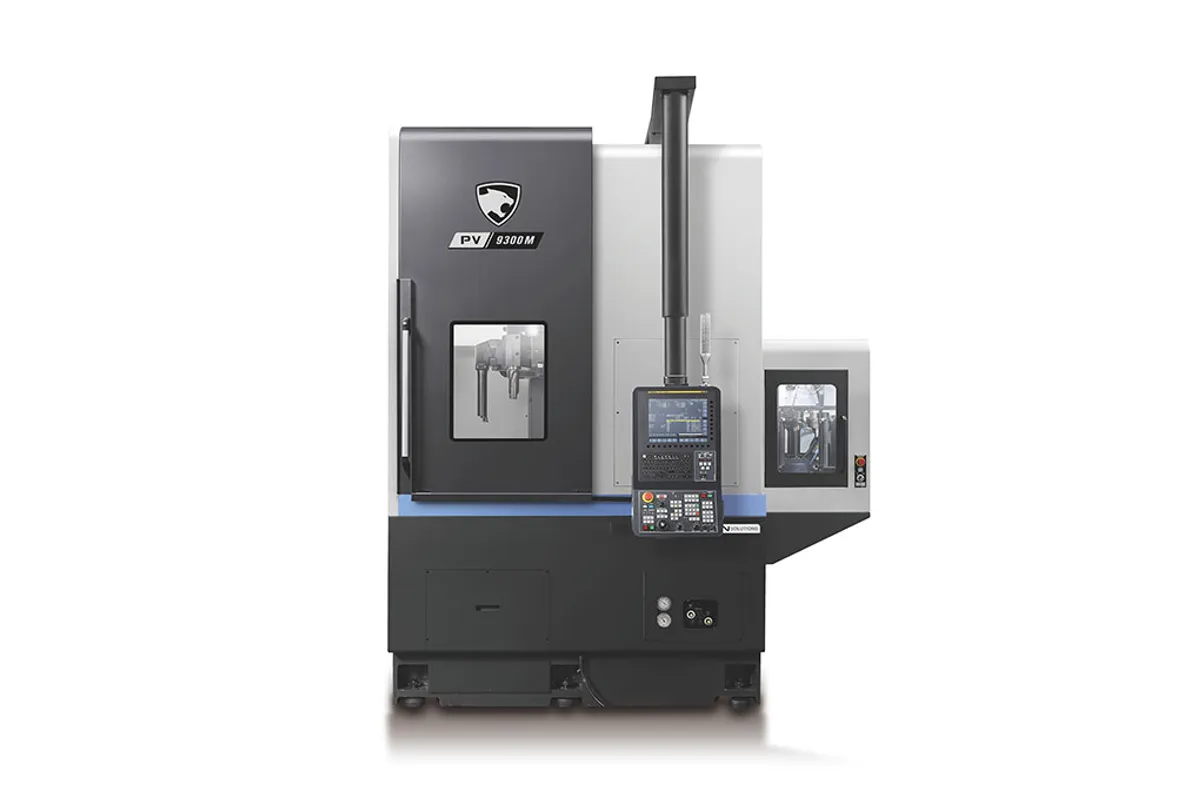

DN Solutions PV 9300 M

$340,000 - $500,000 Updated 2026-03-19

Key Specifications

X Travel

535 mm (21.1 in)

Z Travel

700 mm (27.6 in)

Max Turn Length

801 mm

chuck size

24 inch

max turning diameter

930 mm

x axis rapid traverse

18 m/min (709 ipm)

Overview

The DN Solutions PV 9300 M adds live tooling and C-axis capability to the PV 9300 vertical turning platform, enabling done-in-one processing of large disc-shaped parts up to 900 mm (35.4 in) in diameter. The 'M' suffix means this machine can drill, tap, and mill features on heavy workpieces without moving them to a secondary machining center — a significant productivity advantage when parts weigh hundreds of kilograms.

The main spindle carries over from the base PV 9300: 37 kW (50 hp) at 1,600 RPM with 2,900 Nm (2,139 ft-lbs) of torque through the 21-inch chuck. Max turning diameter drops slightly to 900 mm (35.4 in) from the base model's 930 mm to accommodate the live tooling turret geometry. Turning height remains at 700 mm (27.6 in). The 12-station turret with live tool positions running at 4,000 RPM handles secondary operations.

Axis travels span 535 mm on X and 700 mm on Z, with 18 m/min rapid traverse. The C-axis provides precise angular positioning for bolt patterns, keyways, and circumferential features. Machine weight increases to approximately 15,000 kg (33,069 lb) with the same 2,800 mm x 3,000 mm footprint as the base model.

The value of live tooling at this scale cannot be overstated. Crane-handling a 250 kg flange to a VMC, fixturing it, indicating it, drilling a bolt circle, and moving it back adds 45-90 minutes of non-productive time. The PV 9300 M does it all in one clamping with better positional accuracy since the part never leaves the chuck. For manufacturers of large flanges, coupling hubs, and industrial components with both turned and drilled features, this machine delivers complete parts from a single setup. Specs sourced from DN Solutions published data.

Full Specifications

Parameter	Value
Chuck Size	24 inch
Max Turning Diameter	930 mm
Max Turning Length	801 mm
X-Axis Travel	535 mm (21.1 in)
Z-Axis Travel	700 mm (27.6 in)
X Axis Rapid Traverse	18 m/min (709 ipm)
Z Axis Rapid Traverse	18 m/min (709 ipm)
Main Spindle Speed	1,600 RPM
Main Spindle Power	37 kW (50 hp) / 2,900 Nm (2,139 ft-lbs)
Rotary Tool Speed	4,000 RPM
Tool Stations	12
C Axis	Standard
Machine Length	2,800 mm (110.2 in)
Machine Width	3,000 mm (118.1 in)
Machine Height	3,900 mm (153.5 in)
Machine Weight	15,000 kg (33,069 lb)
CNC Control	FANUC 0i-TF Plus
Metric	IMPERIAL
Capacity	Chuck sizeMax. Turning DiameterMax. Turning Length
Travels	X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceZ-Axis Travel Distance
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Turret	No. of tool stationRotary Tool r/min
No Of Tool Station	Rotary Tool r/min
Dimensions	LengthHeightWidthWeight
Favorites	PV 9300M
12 Ea	4000 RPM

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Integrated live tooling enables drilling, tapping, and milling on large disc parts without crane transfers to a VMC
37 kW spindle with 2,900 Nm torque handles aggressive roughing on large-diameter heavy workpieces
C-axis positioning allows precise bolt circle patterns and angular features in one clamping
900 mm turning diameter covers most large flange and disc work between V 8300 M and VT 1100 M sizes
Same compact footprint as the base PV 9300 despite the added milling capability
Eliminates 45-90 minutes of non-productive handling time per large part vs separate VTC + VMC workflow

Limitations

900 mm max turning diameter is 30 mm less than the base PV 9300's 930 mm due to live tooling clearance
4,000 RPM live tool speed is moderate — suited for secondary features, not heavy milling operations
1,600 RPM max spindle speed limits finishing surface speed on smaller internal features
15,000 kg weight requires engineered foundation and heavy rigging for installation
Price premium of $40-50K over the base PV 9300 for the live tooling and C-axis

Best For

Oil and gas manufacturers producing large pipe flanges with bolt circles and tapped holes in one setup Power generation shops turning and drilling turbine components, generator rings, and coupling flanges Heavy equipment manufacturers making large sprockets and structural rings with drilled mounting holes Valve manufacturers turning large valve bodies with drilled and tapped port features Any shop moving heavy parts between a VTC and VMC that wants to consolidate into one machine

Frequently Asked Questions

01 How does the PV 9300 M compare to the PUMA V 8300 M?

The PV 9300 M handles larger parts: 900 mm vs 800 mm turning diameter, 21-inch vs 15-inch chuck, 2,900 Nm vs 2,592 Nm torque. Both use 37 kW spindles with live tooling. Choose the V 8300 M for parts under 800 mm and the PV 9300 M for the 800-900 mm range.

02 How much does the PV 9300 M cost?

New PV 9300 M machines typically price between $340,000 and $500,000. The live tooling and C-axis add roughly $40-50K over the base PV 9300. Options like heavy-duty chip conveyors and tool monitoring systems push toward the upper range.

03 What milling operations can the PV 9300 M perform?

The 4,000 RPM live tools handle drilling, tapping, light end milling, keyway cutting, and cross-milling. Typical work includes bolt circle drilling on large flanges, tapping mounting holes, milling keyways and flats. Heavy milling requiring significant material removal still needs a dedicated machining center.

04 Is the PV 9300 M more productive than a VTC plus VMC?

For parts that need both turning and secondary features, yes. The PV 9300 M eliminates crane transfers, VMC fixturing, and indicating. On a typical large flange with a bolt circle, you save 45-90 minutes per part. Over a production run, that adds up to dramatic throughput improvements.
