Accuway UL-20M

Q: How much does the Accuway UL-20M cost?

The price estimate for the Accuway UL-20M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ul-20m#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

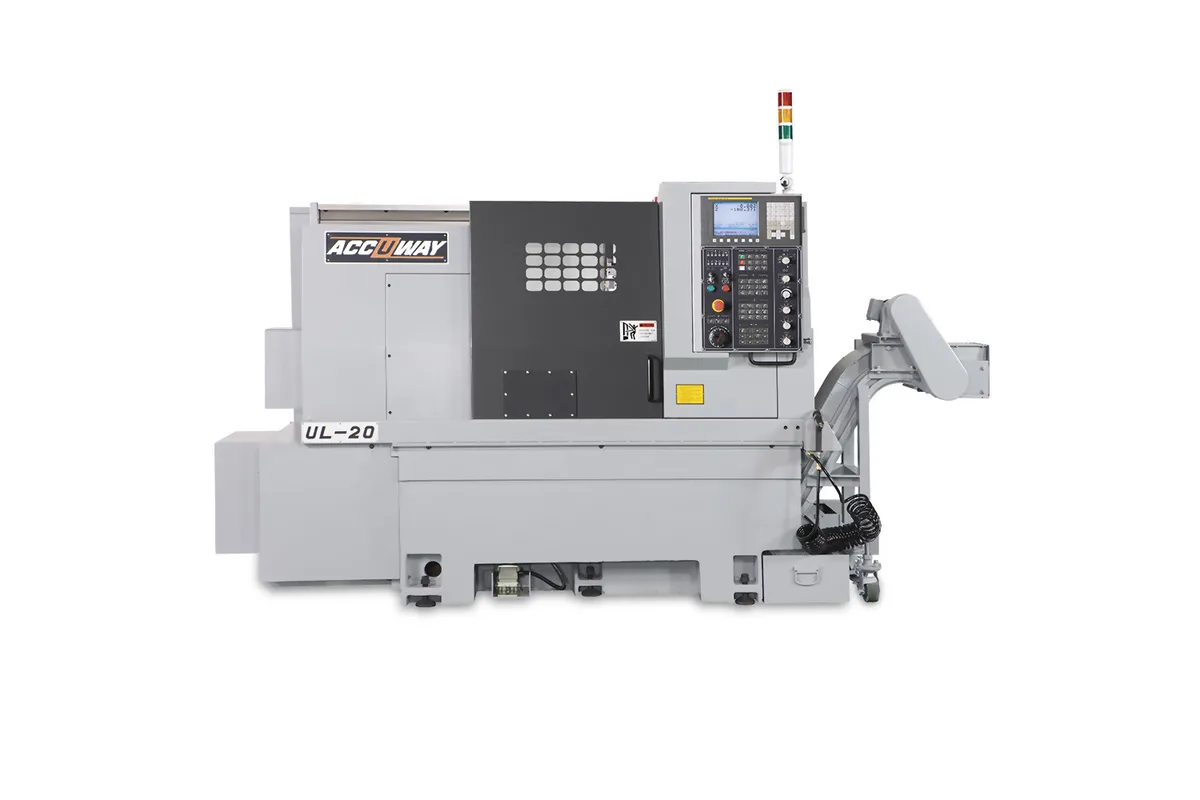

Accuway UL-20 / UL-20M flat bed CNC turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp)

Max Turn Length

500 mm (19.7 in)

control

FANUC 0i-T

swing over bed

455 mm (17.9 in)

swing over saddle

260 mm (10.2 in)

How much does the Accuway UL-20M cost?

Price estimate

Uncertain

We do not have a price for the Accuway UL-20M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway UL-20M is a box-way lathe with live tools and half a metre of turning length. Its figures: 625 mm (24.6 in) of Z travel, a 500 mm (19.7 in) turning length, a 180 mm (7.1 in) turning diameter and rotary tools at 6,000 rpm.

Among the four UL models this is the one for shaft-like parts with milled detail, such as a motor shaft with a keyway, a spindle with cross-drilled oil holes or a threaded rod with wrench flats. The tailstock, with 400 mm (15.7 in) of body travel and a 150 mm (5.9 in) quill stroke, can hold the free end while the live tool cuts. All such features lie on the centreline, because no Y axis is listed.

The turning diameter deserves a check against the work. At 180 mm (7.1 in) it is much less than the 455 mm (17.9 in) swing over bed suggests, since the BMT/VDI turret and its tools set the limit. Chucks of 6 in and 8 in are tabled, with bar capacity of 44 mm (1.7 in), 52 mm (2.0 in) or 65 mm (2.6 in).

Power is 11/15 kW (14.8/20.1 hp) at the spindle and 3.7/5.5 kW (5.0/7.4 hp) at the rotary tools. The machine weighs 3,500 kg (7,716 lb), the heaviest of the UL group, and measures 2.7 x 1.5 x 1.75 m (106.3 x 59.1 x 68.9 in). Rotary tool holders for the UL-20M are on the optional list.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	455 mm (17.9 in)
Swing Over Saddle	260 mm (10.2 in)
Max Turning Diameter	180 mm (7.1 in)
Max Turning Length	500 mm (19.7 in)
Guideway Type	Box
Spindle Nose	A2-5 / A2-6 / A2-6
Chuck Size	6 / 8 / 8 in
Bar Capacity	44 / 52 / 65 mm (1.7 / 2.0 / 2.6 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp)
X Axis Travel	175 mm (6.9 in)
Z Axis Travel	625 mm (24.6 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Turret Tooling	BMT/VDI
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Tailstock Body Travel	400 mm (15.7 in)
Tailstock Quill Travel	150 mm (5.9 in)
Tailstock Quill Diameter	70 mm (2.8 in)
Tailstock Quill Taper	MT#4
Machine Dimensions	L x W x H: 2.7 x 1.5 x 1.75 m (106.3 x 59.1 x 68.9 in)
Machine Weight	3,500 kg (7,716 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

500 mm (19.7 in) turning length with 6,000 rpm rotary tools
Tailstock with 400 mm (15.7 in) of body travel
12-station BMT/VDI turret, servo mechanical
11/15 kW (14.8/20.1 hp) spindle in three nose and chuck sizes
Box guideways, 3,500 kg (7,716 lb)

Limitations

Turning diameter limited to 180 mm (7.1 in)
No Y-axis rows in the table
Rapid traverse of 20 m/min (787 in/min), slower than the JT-200M
0 degree and 90 degree rotary tool holders are optional

Best For

Motor and pump shafts with keyways Slim parts needing cross holes along their length Bar-fed turn-mill work up to 65 mm Shops wanting live tools without a large slant-bed machine

Frequently Asked Questions

01 What are the capacity figures of the Accuway UL-20M?

Maximum turning diameter 180 mm (7.1 in), maximum turning length 500 mm (19.7 in), X travel 175 mm (6.9 in), Z travel 625 mm (24.6 in). Swing over bed is 455 mm (17.9 in) and swing over saddle 260 mm (10.2 in).

02 How does the UL-20M differ from the UL-20?

The UL-20 has a BOT turret without rotary tools and turns 280 mm (11.0 in) by 600 mm (23.6 in). The UL-20M has a BMT/VDI turret with 6,000 rpm rotary tools and turns 180 mm (7.1 in) by 500 mm (19.7 in). It weighs 3,500 kg (7,716 lb) against 3,350 kg (7,385 lb) for the UL-20.

03 What spindle speeds does the UL-20M reach?

6,000 rpm with the A2-5 nose and 6 in chuck, and 4,500 rpm or 4,000 rpm with the A2-6 nose and 8 in chuck. Rotary tools run to 6,000 rpm in every column.

04 What automation options are listed for the UL-20M?

Parts catcher and parts conveyor, bar feeder interface (7 or 24 pins), bar feeder, loader interface, gantry loader system and auto door are all optional accessories.
