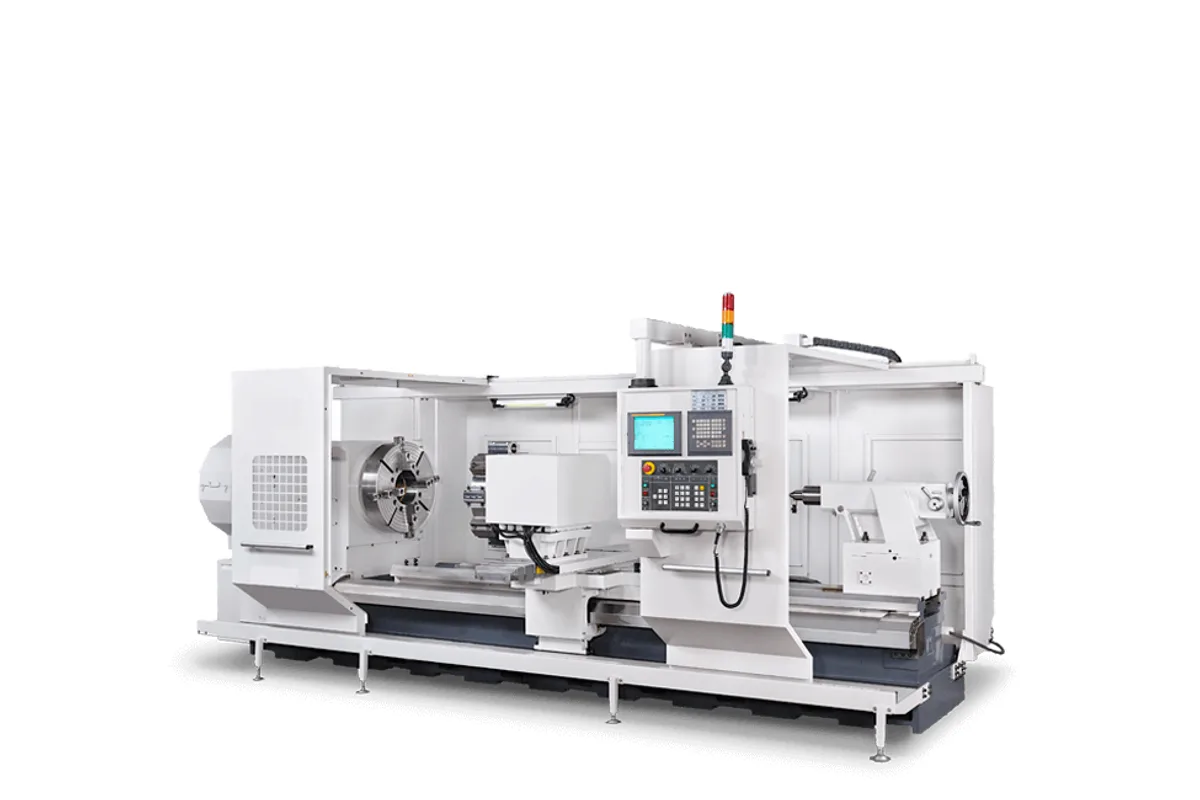

Ganesh GTD-44-55 HK CNC
Image: expandmachinery.com, Ganesh
Key Specifications
Rapid Traverse
Spindle Power
swing over bed
swing over cross slide
distance between centers
bed width
How much does the Ganesh GTD-44-55 HK CNC cost?
Price estimate
We do not have a price for the Ganesh GTD-44-55 HK CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The GTD-44-55 HK CNC is a very large flat-bed CNC lathe: 44 in (1,120 mm) of swing over the bed, 27.95 in (710 mm) over the cross slide and 78 to 236 in (2,000 - 6,000 mm) between centers. Expand Machinery titles the page as a 44 to 55 in swing machine, though the specification table gives the 44 in figure only. Everything about it is sized for heavy, slow, high-torque turning.
Spindle speed is 6 - 500 rpm in four automatically selected gear ranges, and with the larger A2-15 and A2-20 spindles it is 6 - 292 rpm. Power is 30 HP (22 kW) on beds up to 160 in, with 40 HP optional, and 40 HP (30 kW) on beds of 200 in and longer. The standard A2-11 spindle has a 6 in (152 mm) bore. Bores of 9, 10, 12 and 15 in are optional, a wide choice.
The carriage is proportioned to match. The bed is 32 in (810 mm) wide, cross slide travel is 23.62 in (600 mm), the Z ballscrew is 63 mm in diameter, and the tailstock quill is 7.87 in (200 mm) across with 11.81 in (300 mm) of stroke and 2-speed gearing. An 8-station turret takes any mix of ID and OD tools, 1.25 x 1.25 in (32 x 32 mm) for OD and 1.97 in (50 mm) bores for ID, with 4 ID holders included.
Two accessories in the feature list show the intended work: a rear spindle chuck mount to support long workpieces passing through the bore, and a boring-bar holder for the back of the cross slide. Rapids are 196 in/min (5,000 mm/min) and cutting feed 118 in/min (3,000 mm/min). The control is a Fanuc 0i-TF.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 44 in (1,120 mm) |
| Swing Over Cross Slide | 27.95 in (710 mm) |
| Distance Between Centers | 78 - 236 in (2,000 - 6,000 mm) |
| Bed Width | 32 in (810 mm) |
| Spindle Motor Power | 30 HP (22 kW) up to 160 in bed lengths, 40 HP optional; 40 HP (30 kW) on 200 in and longer beds |
| Spindle Speed | 6 - 500 rpm (6 - 292 rpm with A2-15 and A2-20 spindles) |
| Spindle Gear Ranges | 4 gear ranges, automatically selected, infinitely variable speeds in each range |
| Spindle Bore | 6 in (152 mm); 9 in, 10 in, 12 in and 15 in optional |
| Spindle Nose | A2-11 (A2-15 / A2-20 optional) |
| X Axis Travel | 23.62 in (600 mm), varies with turret selected |
| Ballscrews | X 40 mm, 5 mm pitch; Z 63 mm, 10 mm pitch |
| Axis Motor Power | X 4 HP (3 kW); Z 5.5 HP (4 kW) |
| Rapid Traverse Rate | 196 in/min (5,000 mm/min) X and Z |
| Cutting Feed Rate | 118 in/min (3,000 mm/min) X and Z |
| Turret Stations | 8 station tool turret with any mix of ID and OD tools |
| OD Tool Size | 1.25 x 1.25 in (32 x 32 mm) |
| ID Tool Holder Bore | 1.97 in (50 mm), 63 mm optional; 4 ID toolholders included |
| Tailstock Quill Diameter | 7.87 in (200 mm) |
| Tailstock Quill Stroke | 11.81 in (300 mm) with 2-speed quill gearing |
| Tailstock Quill Taper | MT-6 |
| Tailstock | Carried by saddle, manual lockdown; hydraulic tailstock optional |
| Coolant Pump | 1.7 HP (1.275 kW) |
| Power Requirement | 220 VAC ±5%, 3-phase, 60 Hz |
| CNC Control | Fanuc 0i-TF |
Specifications sourced from expandmachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 44 in (1,120 mm) swing over the bed and 27.95 in (710 mm) over the cross slide
- 6 in (152 mm) spindle bore, with 9, 10, 12 and 15 in bores optional
- 30 HP (22 kW) spindle motor, 40 HP optional, through 4 automatically selected gear ranges
- Rear spindle chuck mount available to support long workpieces
- 7.87 in (200 mm) tailstock quill with 2-speed gearing
Limitations
- Maximum spindle speed is 500 rpm, or 292 rpm with the A2-15 and A2-20 spindles
- Rapid traverse is 196 in/min (5,000 mm/min)
- Tailstock lockdown is manual unless the hydraulic tailstock is ordered
- The 40 HP motor is optional on beds up to 160 in
Best For
Frequently Asked Questions
01
The specification table gives 44 in (1,120 mm) of swing over the bed and 27.95 in (710 mm) over the cross slide. The page title describes 44 to 55 in swing heavy duty big bore lathes, so ask Expand Machinery for the figures of the 55 in version. The bed is 32 in (810 mm) wide.
02
Standard is a 6 in (152 mm) bore on an A2-11 spindle nose. Optional bores are 9, 10, 12 and 15 in, with A2-15 and A2-20 spindle noses optional. With those larger spindles the speed range is 6 - 292 rpm instead of 6 - 500 rpm.
03
On bed lengths up to 160 in the spindle motor is 30 HP (22 kW), with 40 HP optional. Beds of 200 in and longer get a 40 HP (30 kW) motor. The drive passes through 4 automatically selected gear ranges with infinitely variable speed in each.
04
An 8 station tool turret accepts any mix of ID and OD tools. OD tools are 1.25 x 1.25 in (32 x 32 mm). The ID tool holder bore is 1.97 in (50 mm), with 63 mm optional, and 4 ID toolholders are included. A boring-bar holder for the back of the cross slide is available.
05
The quill is 7.87 in (200 mm) in diameter with 11.81 in (300 mm) of stroke, 2-speed quill gearing and an MT-6 taper. The body is carried by the saddle with manual lockdown; a hydraulic tailstock with hydraulic quill and bed lockdown is optional.
