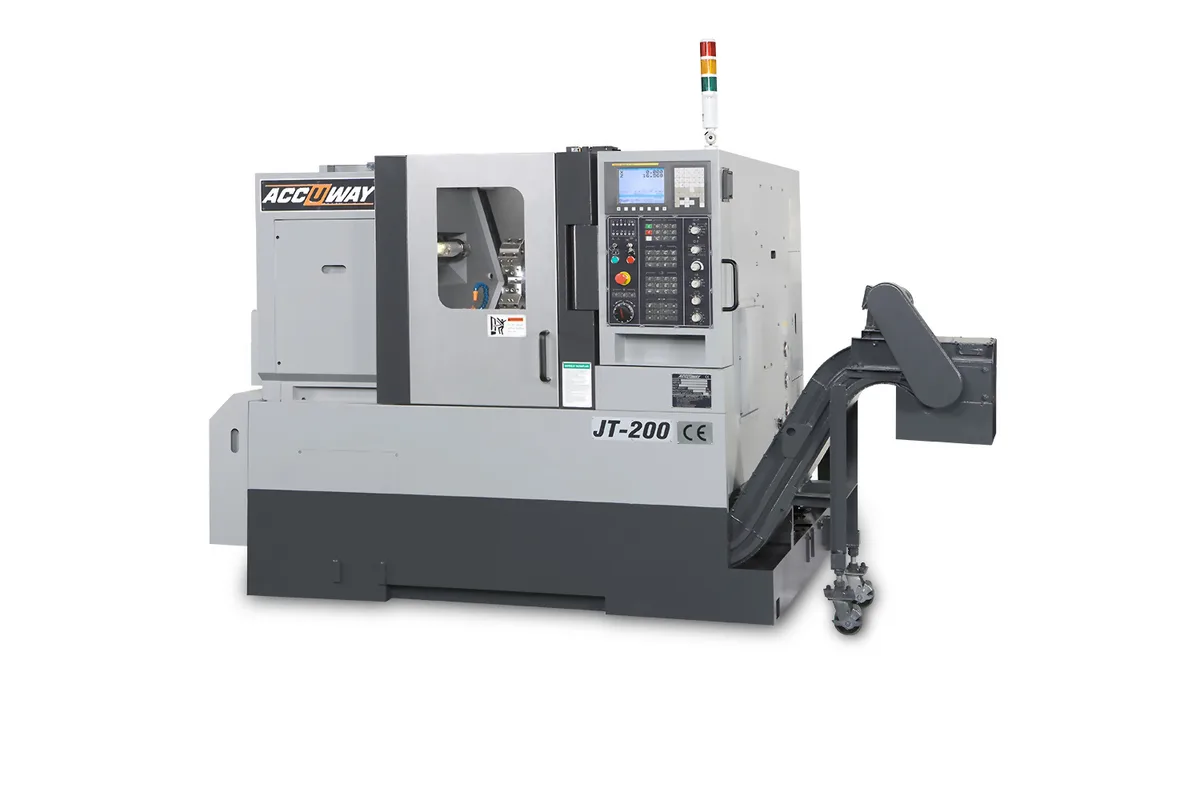

Accuway JT-200
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway JT-200 cost?
Price estimate
We do not have a price for the Accuway JT-200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For shops that want a mid-size lathe with quick axes, Accuway lists the JT-200. It has 600 mm (23.6 in) of Z travel and a 300 mm (11.8 in) turning diameter, and it runs on linear ways at 30 m/min (1,181 in/min). The box-way UL-20, its nearest relative, rapids at 20 m/min (787 in/min).
The comparison goes further. The JT-200 weighs 3,200 kg (7,055 lb) against 3,350 kg (7,385 lb) for the UL-20, and has more cross travel, 195 mm (7.7 in) against the UL-20's 175 mm (6.9 in). Both share three spindle columns ending at A2-6 with a 65 mm (2.6 in) bar. The JT-200 is the lighter, faster machine for short cycles and lighter cuts, and the box-way model is the one for harder roughing.
Maximum turning length is 560 mm (22.0 in), and swing over the saddle is 318 mm (12.5 in). The tailstock body travels 450 mm (17.7 in), further than on the UL-20, with a 150 mm (5.9 in) quill stroke and an MT#4 centre.
Spindle power is 11/15 kW (14.8/20.1 hp). Speeds are 6,000 rpm with a 6 in chuck and 4,500 rpm or 4,000 rpm with an 8 in chuck. The BOT turret carries 8, 10 or 12 tools depending on the column. Optional accessories cover the usual production set, from a collet chuck and bar feeder to a gantry loader system and auto door. The machine is 2.6 m long and 1.7 m wide.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 505 mm (19.9 in) |
| Swing Over Saddle | 318 mm (12.5 in) |
| Max Turning Diameter | 300 mm (11.8 in) |
| Max Turning Length | 560 mm (22.0 in) |
| Guideway Type | Linear |
| Spindle Nose | A2-5 / A2-6 / A2-6 |
| Chuck Size | 6 / 8 / 8 in |
| Bar Capacity | 44 / 52 / 65 mm (1.7 / 2.0 / 2.6 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| X Axis Travel | 195 mm (7.7 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 8 / 10 / 12 |
| Square Tool Shank | 25 / 25 / 20 mm (1.0 / 1.0 / 0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Tailstock Body Travel | 450 mm (17.7 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 70 mm (2.8 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 2.6 x 1.7 x 1.8 m (102.4 x 66.9 x 70.9 in) |
| Machine Weight | 3,200 kg (7,055 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 30 m/min (1,181 in/min) rapids over 600 mm (23.6 in) of Z travel
- 560 mm (22.0 in) turning length at a 300 mm (11.8 in) turning diameter
- Tailstock body travel of 450 mm (17.7 in)
- 11/15 kW (14.8/20.1 hp) spindle
- 3,200 kg (7,055 lb) and 2.6 m long
Limitations
- No A2-8 spindle column; bar capacity ends at 65 mm (2.6 in)
- Linear ways are less suited to heavy interrupted roughing
- No rotary tools on this version
- Turret has 8 stations with the A2-5 spindle
Best For
Frequently Asked Questions
01
X-axis travel 195 mm (7.7 in) and Z-axis travel 600 mm (23.6 in), both at a rapid traverse rate of 30 m/min (1,181 in/min). Guideways are linear.
02
The UL-20 has box guideways, 20 m/min (787 in/min) rapids, a 280 mm (11.0 in) turning diameter and weighs 3,350 kg (7,385 lb). The JT-200 has linear guideways, 30 m/min (1,181 in/min) rapids, a 300 mm (11.8 in) turning diameter and weighs 3,200 kg (7,055 lb).
03
Maximum turning diameter is 300 mm (11.8 in) and maximum turning length 560 mm (22.0 in). Swing over bed is 505 mm (19.9 in). Chucks are 6 in or 8 in.
04
Yes. The JT-200M, which shares the page, has a BMT/VDI turret with rotary tools at 6,000 rpm, turns 230 mm (9.1 in) by 450 mm (17.7 in) and weighs 3,300 kg (7,275 lb).
