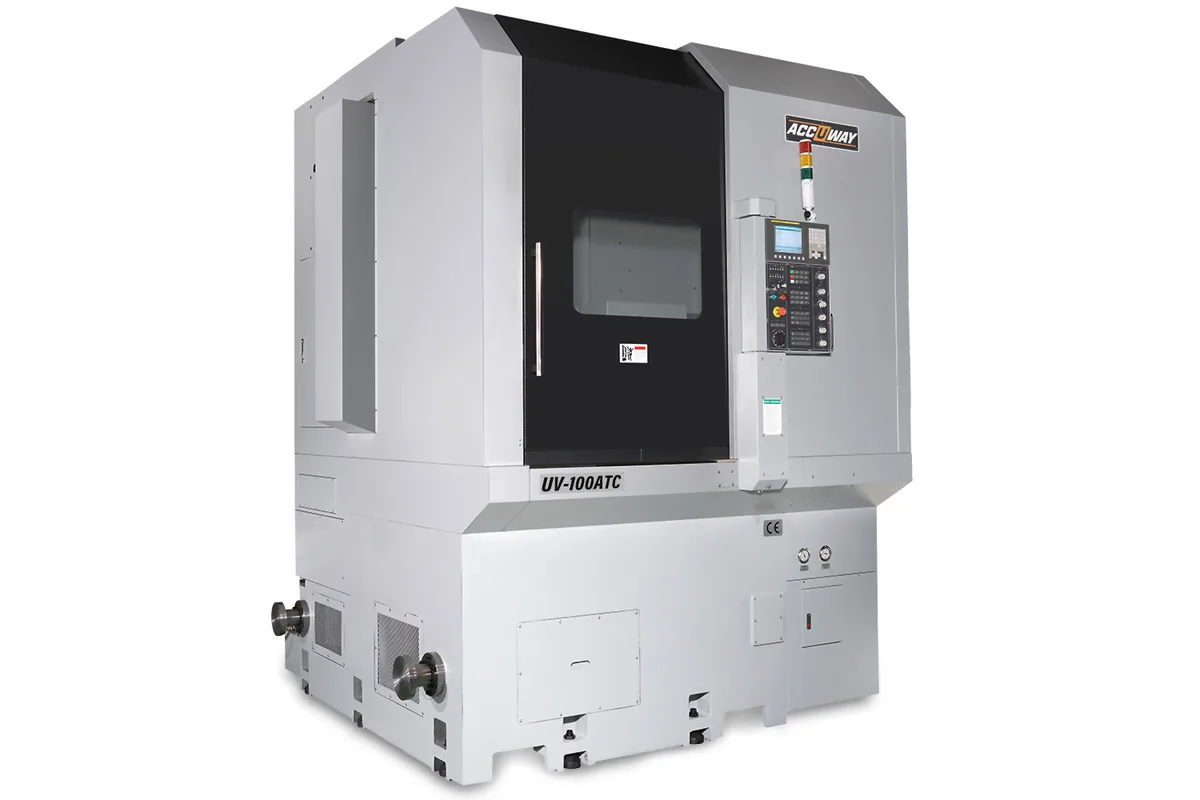

Accuway UV-100ATC
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
Max Turn Length
control
swing over bed
How much does the Accuway UV-100ATC cost?
Price estimate
We do not have a price for the Accuway UV-100ATC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UV-100ATC combines the one-metre vertical turning frame with a tool magazine in place of a turret. It turns up to 1,000 mm (39.4 in) in diameter and 800 mm (31.5 in) in length. X travel is 765 mm (30.1 in), the longest of any UV model, and Z is 800 mm (31.5 in).
Power and drive come from the big frame. The A2-15 work spindle is driven through a 2-step gearbox + Belt by a 30/37 kW (40.2/49.6 hp) motor, with 37/45 and 45/55 kW in brackets, to a maximum of 1,200 rpm. The chuck row reads 24 (32/40) in and the guideways are box ways.
Where it differs from the UV-100E is in how the tool is held. A 12-station magazine with servo-gear indexing feeds tools with a BT50 taper to the ram. A single tool can be 400 mm (15.7 in) long and 50 kg (110 lb). For a deep bore in a tall casting, a long bar in a 50-taper is far more rigid than one clamped in a turret pocket, and the 800 mm turning length is there to use it.
This table lists the tool taper only; the driven tool spindle figures belong to the UV-100ATCC. Rapids are 15 m/min (591 in/min) in X and 7 m/min (276 in/min) in Z. The machine weighs 16,500 kg (36,376 lb) and stands 4.6 m high, the tallest in the group. The page lists no accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 1,100 mm (43.3 in) |
| Max Turning Diameter | 1,000 mm (39.4 in) |
| Max Turning Length | 800 mm (31.5 in) |
| Guideway Type | Box way |
| Spindle Nose | A2-15 |
| Chuck Size | 24 (32/40) in |
| Max Spindle Speed | 1,200 rpm |
| Spindle Drive | 2-step gearbox + Belt |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45, 45/55 kW (49.6/60.3, 60.3/73.8 hp) |
| Tool Spindle Taper | BT50 |
| X Axis Travel | 765 mm (30.1 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse X | 15 m/min (591 in/min) |
| Rapid Traverse Z | 7 m/min (276 in/min) |
| Magazine Indexing Type | Servo-gear |
| Tool Capacity | 12 |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 50 kg (110 lb) |
| Max Magazine Load | 420 kg (926 lb) |
| Machine Dimensions | L x W x H: 3.1 x 3.7 x 4.6 m (122.0 x 145.7 x 181.1 in) |
| Machine Weight | 16,500 kg (36,376 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 mm (39.4 in) turning diameter with 800 mm (31.5 in) turning length
- 765 mm (30.1 in) of X travel
- 12-tool magazine, BT50 taper, tools up to 400 mm (15.7 in) and 50 kg (110 lb)
- Geared A2-15 spindle with 30/37 kW (40.2/49.6 hp)
- Box way guideways on a 16,500 kg (36,376 lb) machine
Limitations
- Machine height of 4.6 m, the tallest of the UV group
- Tool spindle speed and power are not listed for this model
- 1,200 rpm maximum work spindle speed
- No accessory list on the maker's page
Best For
Frequently Asked Questions
01
Maximum turning diameter is 1,000 mm (39.4 in), maximum turning length 800 mm (31.5 in) and swing over bed 1,100 mm (43.3 in). X travel is 765 mm (30.1 in) and Z travel is 800 mm (31.5 in). The chuck row reads 24 (32/40) in.
02
It has a tool magazine instead of a turret: 12 stations, servo-gear indexing, a BT50 spindle taper, a maximum tool length of 400 mm (15.7 in), a maximum tool weight of 50 kg (110 lb) and a maximum magazine load of 420 kg (926 lb).
03
30/37 kW (40.2/49.6 hp), continuous and 30 min, with 37/45 and 45/55 kW printed in brackets. The spindle drive system is a 2-step gearbox + Belt and the listed speed is 1,200 rpm on an A2-15 nose.
04
3.1 x 3.7 x 4.6 m (122.0 x 145.7 x 181.1 in), length by width by height, and 16,500 kg (36,376 lb) net. The UV-100E, the turret version, is 4.2 m high and weighs 16,000 kg (35,273 lb).
