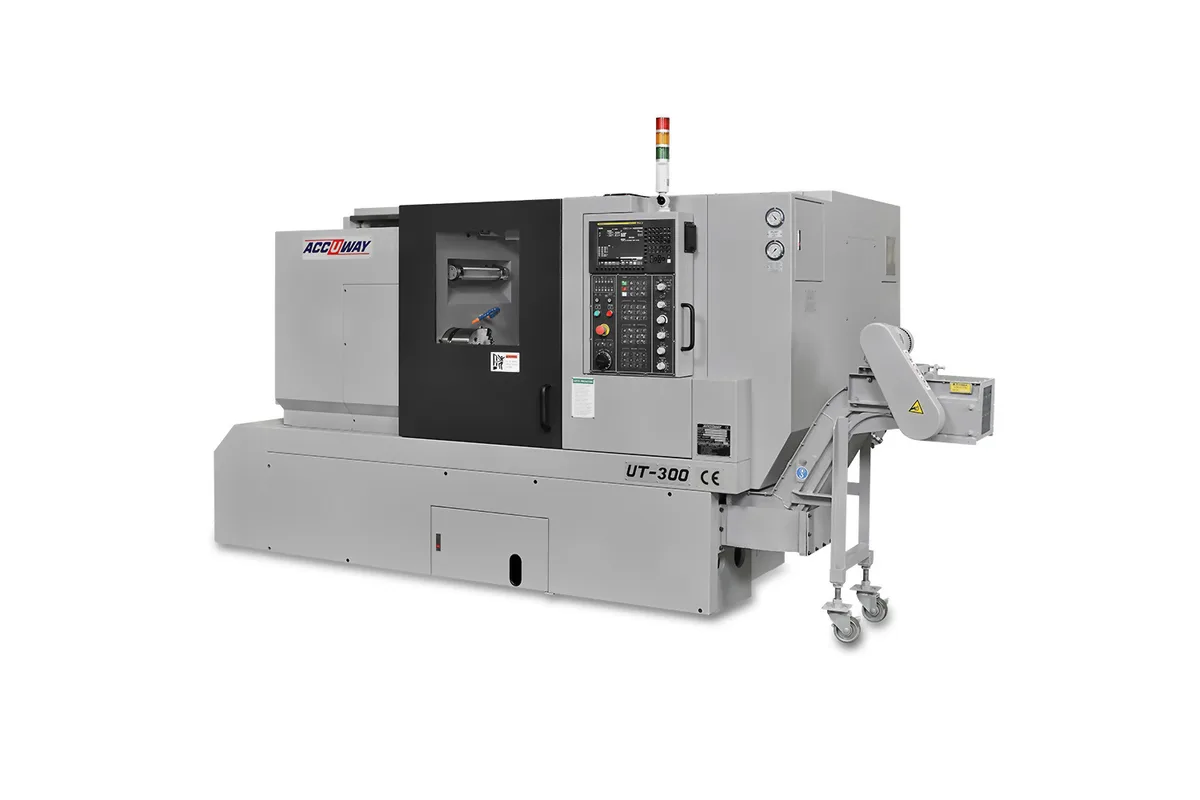

Accuway UT-300M
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300M cost?
Price estimate
We do not have a price for the Accuway UT-300M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Rotary tools on a 15 in chuck class lathe: that is the Accuway UT-300M. It takes the UT-300 bed with 750 mm (29.5 in) of Z travel and fits a 12-station BMT/VDI turret with servo mechanical drive, whose live stations run to 4,000 rpm on a 3.7/5.5 kW (5.0/7.4 hp) motor.
The live turret is larger than the plain one, and the table shows the result. Maximum turning diameter is 420 mm (16.5 in), where the UT-300 turns 500 mm (19.7 in). Turning length shrinks too, to 540 mm (21.3 in) with an A2-8 nose and 460 mm (18.1 in) with A2-11. Anyone moving a job from the two-axis machine should check both figures against the part before assuming it still fits.
Milling power is modest next to the main motor of 15/18.5 kW (20.1/24.8 hp). That ratio describes the machine well. It is a heavy turning center that can also drill bolt circles, tap, and mill keyways and flats on the centreline, since the table has no Y axis. Off-centre work belongs to the UT-300Y.
Spindle columns are the family's four, from A2-8 with a 10 in chuck at 3,500 rpm to A2-11 with a 15 in chuck and a 116.5 mm (4.6 in) bar at 2,000 rpm. The tailstock has 540 mm (21.3 in) of body travel. The 0 degree and 90 degree rotary tool holders are listed as optional accessories for the UT-300M, so the holders are a separate line on the order.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 612 mm (24.1 in) |
| Swing Over Saddle | 400 mm (15.7 in) |
| Max Turning Diameter | 420 mm (16.5 in) |
| Max Turning Length | 540 / 540 / 460 / 460 mm (21.3 / 21.3 / 18.1 / 18.1 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 750 mm (29.5 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 540 mm (21.3 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 110 mm (4.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 3.3 x 1.8 x 1.9 m (129.9 x 70.9 x 74.8 in) |
| Machine Weight | 5,500 kg (12,125 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary tools at 4,000 rpm on 3.7/5.5 kW (5.0/7.4 hp)
- 12-station BMT/VDI turret with servo mechanical drive
- Main spindle motor of 15/18.5 kW (20.1/24.8 hp)
- Bar capacity from 75 mm (3.0 in) to 116.5 mm (4.6 in) across four spindle columns
- Tailstock with 540 mm (21.3 in) of body travel and an MT#5 quill
Limitations
- Turning diameter is 420 mm (16.5 in), less than the two-axis UT-300
- No Y axis, so milled features stay on the centreline
- Turning length of 460 mm (18.1 in) with an A2-11 spindle
- Rotary tool holders are optional accessories
Best For
Frequently Asked Questions
01
Rotary tool speed is 4,000 rpm and rotary tool motor power 3.7/5.5 kW (5.0/7.4 hp). The turret has 12 stations, the tooling system row reads BMT/VDI and the turret driven type is servo mechanical.
02
The UT-300 turns 500 mm (19.7 in) in diameter and 680 mm (26.8 in) long in its A2-8 columns. The UT-300M turns 420 mm (16.5 in) and 540 mm (21.3 in). Travels, swing and spindle columns are the same on both.
03
Its table lists X, Z and rotary tools but no Y axis, so flats, keyways and holes are cut on or through the centreline. The UT-300Y adds ±50 mm (±2.0 in) of Y travel on the same 750 mm (29.5 in) Z travel.
04
Net weight is 5,500 kg (12,125 lb). The dimension row gives 3.3 x 1.8 x 1.9 m (129.9 x 70.9 x 74.8 in) as length, width and height, before a bar feeder or chip conveyor is added.
