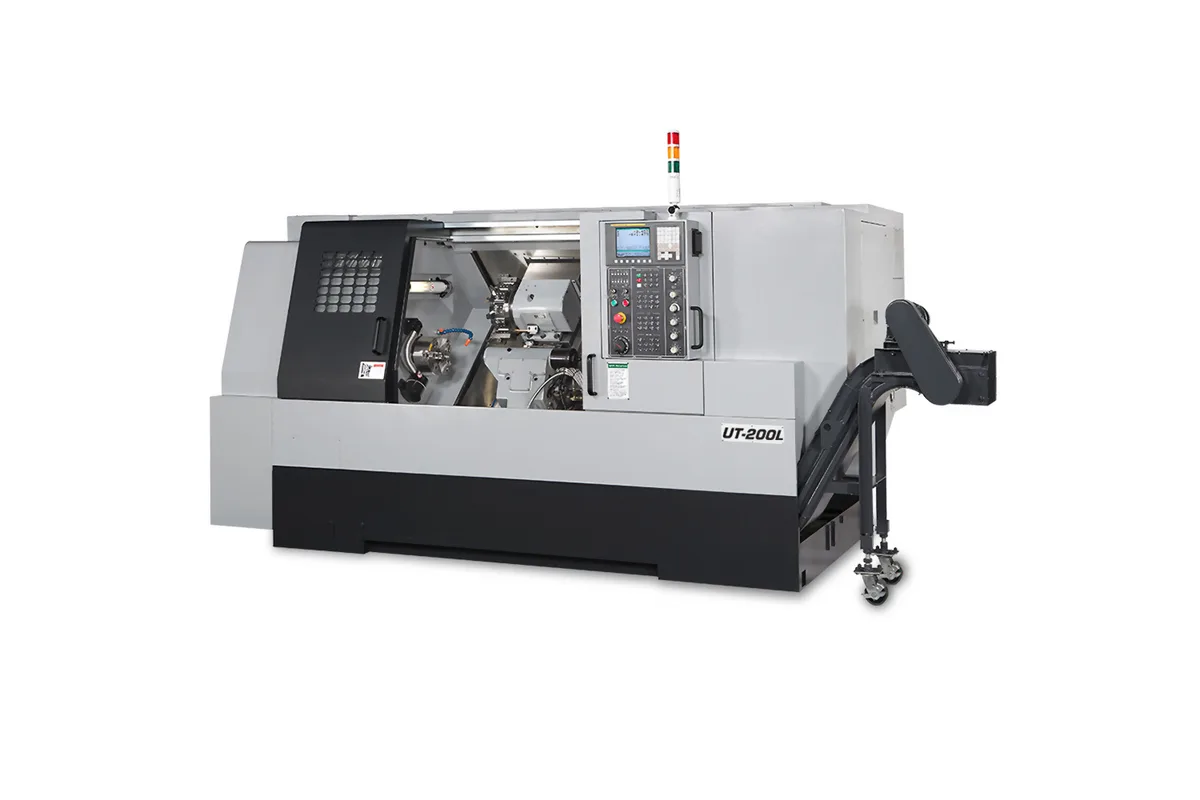

Accuway UT-200LM
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-200LM cost?
Price estimate
We do not have a price for the Accuway UT-200LM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Long shafts often carry a keyway, a cross hole or a wrench flat, and the Accuway UT-200LM is the long-bed UT-200 that can cut them. It has 1,050 mm (41.3 in) of Z travel, a 900 mm (35.4 in) maximum turning length and a 12-station turret with rotary tools running to 6,000 rpm.
The turret is a BMT/VDI type with servo mechanical drive, and the rotary tool power row reads 3.7/5.5 kW (5.0/7.4 hp). Maximum turning diameter is 260 mm (10.2 in). Compared with the UT-200L, which has no rotary tools and turns 300 mm (11.8 in), the driven turret reduces the turning diameter and shortens the turning length from 1,000 mm (39.4 in).
Work is supported by a tailstock whose body travels 1,045 mm (41.1 in). Milling a keyway halfway along a metre-long shaft with the centre engaged is exactly the job this layout is for. Since the table shows no Y axis, such features are cut on the centreline.
Spindle columns run from A2-5 with a 6 in chuck and 6,000 rpm to A2-8 with a 10 in chuck, a 75 mm (3.0 in) bar and 3,500 rpm; in that last column the turning length is 820 mm (32.3 in). The motor is 11/15 kW (14.8/20.1 hp). The machine weighs 4,700 kg (10,362 lb) and stands 1.9 m high. Rotary tool holders, 0 degree and 90 degree, are optional accessories, as are a bar feeder and a gantry loader system.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 505 mm (19.9 in) |
| Swing Over Saddle | 318 mm (12.5 in) |
| Max Turning Diameter | 260 mm (10.2 in) |
| Max Turning Length | 900 / 900 / 900 / 820 mm (35.4 / 35.4 / 35.4 / 32.3 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 / A2-6 / A2-6 / A2-8 |
| Chuck Size | 6 / 8 / 8 / 10 in |
| Bar Capacity | 44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 / 3,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp) |
| X Axis Travel | 220 mm (8.7 in) |
| Z Axis Travel | 1,050 mm (41.3 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 1,045 mm (41.1 in) |
| Tailstock Quill Travel | 80 mm (3.1 in) |
| Tailstock Quill Diameter | 75 mm (3.0 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 3.7 x 1.6 x 1.9 m (145.7 x 63.0 x 74.8 in) |
| Machine Weight | 4,700 kg (10,362 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary tools at 6,000 rpm on a 1,050 mm (41.3 in) Z travel
- 900 mm (35.4 in) turning length with tailstock support
- 12-station BMT/VDI turret with servo mechanical drive
- Spindle choices up to an A2-8 nose with 75 mm (3.0 in) bar capacity
Limitations
- No Y axis for off-centre features
- Turning diameter limited to 260 mm (10.2 in)
- Rotary tool power of 3.7/5.5 kW (5.0/7.4 hp) suits light milling
- Rotary tool holders are not on the standard accessories list
Best For
Frequently Asked Questions
01
Maximum turning diameter 260 mm (10.2 in), maximum turning length 900 mm (35.4 in), X travel 220 mm (8.7 in), Z travel 1,050 mm (41.3 in), rotary tool speed 6,000 rpm and a spindle motor of 11/15 kW (14.8/20.1 hp).
02
The bed. The UT-200M has 600 mm (23.6 in) of Z travel, a 450 mm (17.7 in) turning length and weighs 3,600 kg (7,937 lb). The UT-200LM has 1,050 mm of Z, 900 mm of turning length and weighs 4,700 kg (10,362 lb). Turret and rotary tool figures are the same.
03
The tooling system row reads BMT/VDI. There are 12 stations for 20 mm (0.8 in) square shanks and 32 mm (1.3 in) round shanks. The turret driven type is servo mechanical.
04
The dimension row gives 3.7 x 1.6 x 1.9 m (145.7 x 63.0 x 74.8 in) as L x W x H, and the net weight is 4,700 kg (10,362 lb). A bar feeder or the optional parts conveyor adds to the length.
