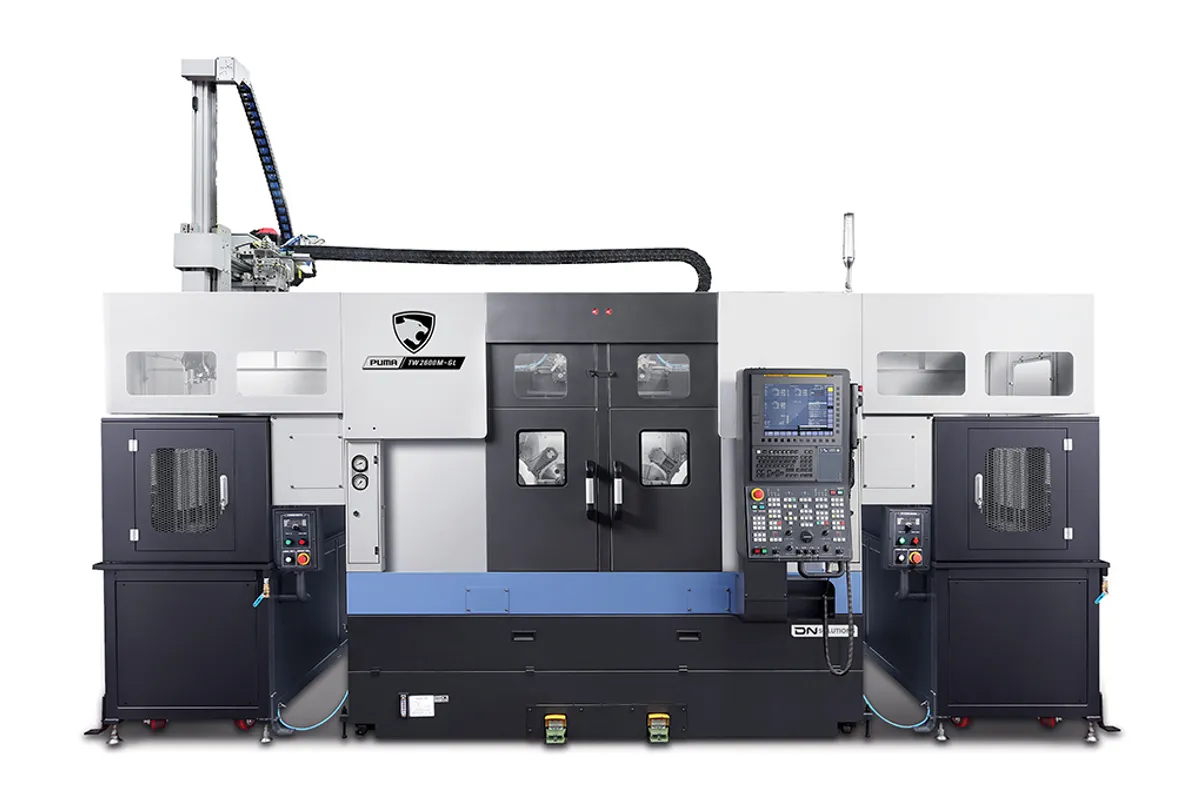

DN Solutions PUMA TW 2600 M

Est. $250,000 - $320,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

190 mm

Z Travel

180 mm (7 in)

Max Spindle

3,500 rpm

Rapid Traverse

24 m/min (945 ipm)

Spindle Power

18.5 kW (25 hp)

Max Turn Length

170 mm

How much does the DN Solutions PUMA TW 2600 M cost?

Estimated price range

Est.$250,000 - $320,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA TW 2600 M adds driven tools to DN's forward-facing twin-spindle chucker. Live tools run to 5,000 rpm on a machine that otherwise matches the turning-only PUMA TW 2600: 10-inch chucks, 360 mm (14 in) of maximum turning diameter, 170 mm of maximum turning length, and a 3,500 rpm spindle with 18.5 kW (25 hp) and 201 N·m (148 ft-lb).

What the live tools buy is one fewer trip to a machining center. Bolt circles, cross holes and tapped holes on a flange or hub can be done in the same chucking as the turning. DN lists a BMT 65P turret as an option for this model, with a 10 kW tool motor, 63.7 N·m of torque and a maximum tap size of 20 mm diameter. Those figures belong to the option. The table does not give the power or torque of the standard driven-tool drive, so ask for them if the work includes heavy drilling.

The limits are the short strokes of the base machine: 190 mm in X, 180 mm (7 in) in Z, and no Y travel in the table, so milled features have to lie where X and Z positioning can reach them. Rapid traverse is 24 m/min (945 ipm). There are 10 turret stations, which driven holders now share with turning tools.

DN describes servo-driven turrets and a gantry loader for the series, quoting 7.9 s handling time for the PUMA TW/TS2600-GL, with loader guidance software built in. The machine weighs 7,300 kg (16,094 lb) and covers 2,520 × 2,061 mm (99 × 81 in), standing 2,150 mm (85 in) high.

Full Specifications

Parameter	Value
Chuck Size	10 in
Max Turning Diameter	360 mm (14 in)
Max Turning Length	170 mm
Rapid Traverse Rate	24 m/min (945 ipm)
X-Axis Travel	190 mm
Z-Axis Travel	180 mm (7 in)
Max Spindle Speed	3,500 rpm
Spindle Motor Power	18.5 kW (25 hp)
Spindle Torque	201 N·m (148 ft-lb)
Turret Stations	10
Live Tool Speed	5,000 rpm
Floor Space Required	2,520 × 2,061 × 2,150 mm (99 × 81 × 85 in)
Machine Weight	7,300 kg (16,094 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

5,000 rpm live tools for drilling, tapping and milling in the same chucking as the turning
Optional BMT 65P turret listed with a 10 kW motor, 63.7 N·m and tapping up to 20 mm diameter
Same 360 mm (14 in) turning diameter and 201 N·m (148 ft-lb) spindle as the PUMA TW 2600, so milling is not traded for turning capacity
Weighs 7,300 kg (16,094 lb), close to the 7,200 kg (15,873 lb) of the PUMA TW 2600
Servo-driven turrets with 10 stations listed

Limitations

The table lists no Y travel, so driven tools are limited to what X and Z positioning can reach
The 10 kW, 63.7 N·m tool drive is the BMT 65P option; the standard driven-tool power is not in the table
10 turret stations are shared between turning tools and driven holders
Turning length is 170 mm with 180 mm (7 in) of Z travel, which rules out shaft work
Main spindle speed stops at 3,500 rpm

Best For

Flanges and hubs needing bolt circles or tapped holes after turning Chucking parts up to 360 mm (14 in) in diameter and 170 mm long Tapping up to 20 mm diameter with the BMT 65P option Gantry-loaded two-spindle cells that would otherwise need a separate drilling machine

Frequently Asked Questions

01 What live tooling does the PUMA TW 2600 M have?

The table lists a live tool speed of 5,000 rpm and 10 turret stations. It does not state the power or torque of the standard driven-tool drive. Figures are given only for the optional BMT 65P turret: 10 kW, 63.7 N·m and a maximum tap size of 20 mm diameter.

02 What is the BMT 65P option?

DN Solutions lists it under the PUMA TW2600M as a turret option with a 10 kW driven-tool motor, 63.7 N·m of torque and a maximum tap size of 20 mm diameter. It is an option and not part of the listed base configuration. If the parts need large taps or heavy drilling, ask for it by name when the machine is quoted.

03 Can the PUMA TW 2600 M mill off-centre features?

The table lists X travel of 190 mm and Z travel of 180 mm (7 in) and no Y travel. Without a listed Y-axis, plan driven-tool work around features that X and Z positioning can reach. DN does list a 3-axis turret size enlargement option for the series without further detail, so ask what that option adds if the parts carry off-centre features.

04 How does it compare with the PUMA TW 2600?

The PUMA TW 2600 is the turning-only machine: no live-tool row and 7,200 kg (15,873 lb). The PUMA TW 2600 M adds 5,000 rpm driven tools and weighs 7,300 kg (16,094 lb). Chuck size, turning diameter, turning length, travels, rapid traverse and spindle figures are listed the same for both.

05 What is the gantry loader handling time?

DN Solutions quotes 7.9 s for the PUMA TW/TS2600-GL, measured as enter, change work and exit. The smaller PUMA TW/TS2100-GL is quoted at 5.7 s. Both figures are given for the -GL models, so confirm that the loader is part of the machine being quoted.
