Accuway UT-300LS

Q: How much does the Accuway UT-300LS cost?

The price estimate for the Accuway UT-300LS is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-300ls#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

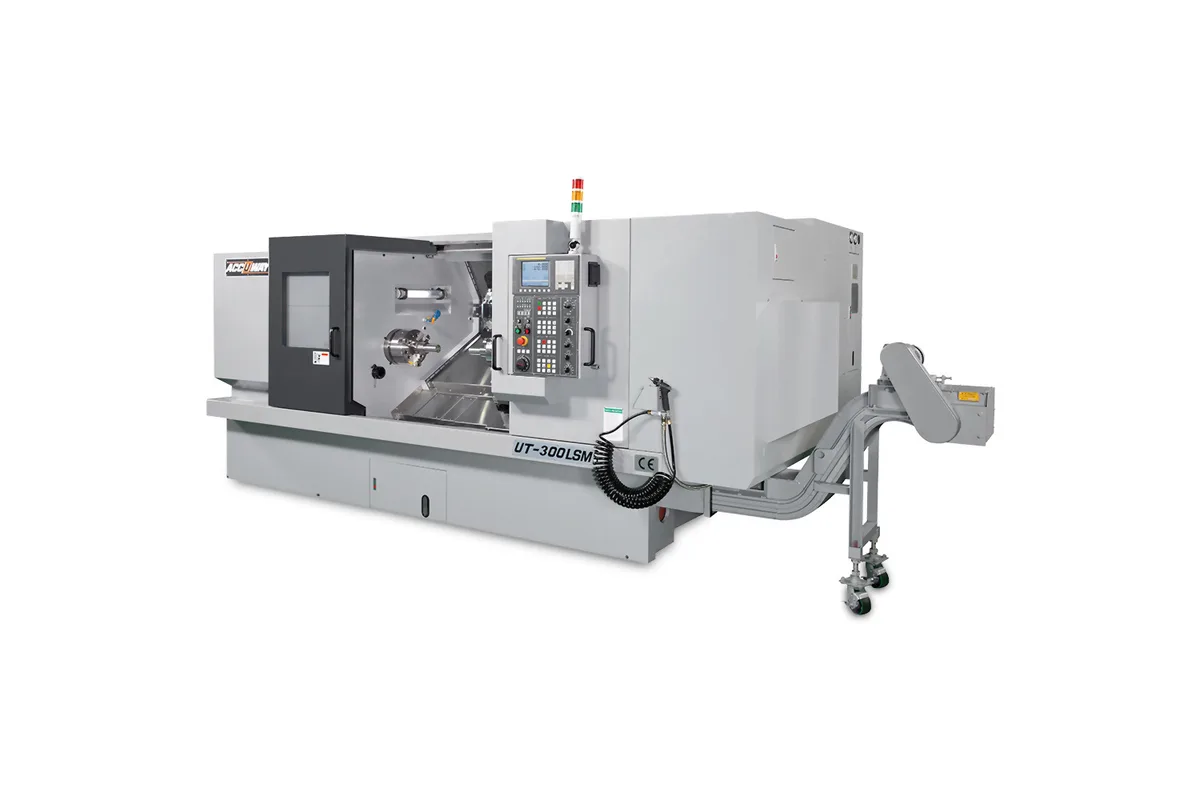

Accuway UT-300LS / UT-300LSM slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

3,500 / 2,700 / 2,500 / 2,000 rpm

Spindle Power

Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)

Max Turn Length

1,110 / 1,110 / 1,040 / 1,040 mm (43.7 / 43.7 / 40.9 / 40.9 in)

control

FANUC 0i-T

swing over bed

612 mm (24.1 in)

swing over saddle

400 mm (15.7 in)

How much does the Accuway UT-300LS cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-300LS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A long bed with a second spindle in place of the tailstock: the Accuway UT-300LS. Z travel is 1,250 mm (49.2 in) and the B axis that carries spindle 2 moves 1,200 mm (47.2 in), so the second chuck can meet the first or stand more than a metre away from it.

That range gives the machine two uses. With the spindles close together it works like the UT-300S, transferring flanges and bar parts for back-side turning. With them apart, a longer part can be gripped at both ends and driven from the main spindle, which the table supports with a turning length of 1,110 mm (43.7 in) in the A2-8 columns and 1,040 mm (40.9 in) in the A2-11 columns. Whether both spindles can be synchronised for that is not stated on the page and should be asked.

The turret is a 12-station BOT unit with hydraulic drive, and there are no rotary tool rows. Turning diameter is 500 mm (19.7 in) at SP1 and 400 mm (15.7 in) at SP2. The machine weighs 6,200 kg (13,668 lb) and measures 4 x 1.8 x 1.9 m (157.5 x 70.9 x 74.8 in).

Spindle 1 follows the UT-300 columns up to A2-11 and a 116.5 mm (4.6 in) bar. Spindle 2 is A2-5, 44 mm (1.7 in), 5.5/7.5 kW (7.4/10.1 hp). One row on this page is left out of the table here: the round tool shank is printed as ten times the figure on every sister page.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	612 mm (24.1 in)
Swing Over Saddle	400 mm (15.7 in)
Max Turning Diameter Sp1	500 mm (19.7 in)
Max Turning Diameter Sp2	400 mm (15.7 in)
Max Turning Length	1,110 / 1,110 / 1,040 / 1,040 mm (43.7 / 43.7 / 40.9 / 40.9 in)
Guideway Type	Box
Spindle Nose	A2-8 / A2-8 / A2-11 / A2-11
Chuck Size	10 / 12 / 15 / 15 in
Bar Capacity	75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in)
Max Spindle Speed	3,500 / 2,700 / 2,500 / 2,000 rpm
Spindle Motor Power	Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp)
Spindle 2 Nose	A2-5
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	44 mm (1.7 in)
Spindle 2 Speed	6,000 / 6,000 / 5,000 / 5,000 rpm
Spindle 2 Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	300 mm (11.8 in)
Z Axis Travel	1,250 mm (49.2 in)
B Axis Travel	1,200 mm (47.2 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Rapid Traverse B	20 m/min (787 in/min)
Turret Tooling	BOT
Turret Drive	Hydraulic
Turret Stations	12
Square Tool Shank	25 mm (1.0 in)
Machine Dimensions	L x W x H: 4 x 1.8 x 1.9 m (157.5 x 70.9 x 74.8 in)
Machine Weight	6,200 kg (13,668 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

B-axis travel of 1,200 mm (47.2 in) for the second spindle
Turning length of 1,110 mm (43.7 in) in the A2-8 columns
500 mm (19.7 in) turning diameter at SP1, 400 mm (15.7 in) at SP2
Second spindle to 6,000 rpm with a 6 in chuck
Z rapid traverse of 24 m/min (945 in/min)

Limitations

No rotary tools on this version
No tailstock: long work relies on the second spindle for support
Second spindle bore of 44 mm (1.7 in) limits what can pass through
Spindle 2 motor is 5.5/7.5 kW (7.4/10.1 hp)

Best For

Long parts turned at both ends in one cycle Tubes and sleeves gripped at each end Flanged shafts needing back-face turning Bar work where the finished part is long

Frequently Asked Questions

01 How far does the second spindle move on the Accuway UT-300LS?

B-axis travel is 1,200 mm (47.2 in) with a rapid traverse of 20 m/min (787 in/min). Z-axis travel for the turret is 1,250 mm (49.2 in) at 24 m/min (945 in/min), and X travel is 300 mm (11.8 in).

02 What is the difference between the UT-300LS and the UT-300S?

Bed length. The UT-300S has 750 mm (29.5 in) of Z travel, 700 mm (27.6 in) of B travel and weighs 5,900 kg (13,007 lb). The UT-300LS has 1,250 mm (49.2 in) of Z, 1,200 mm (47.2 in) of B and weighs 6,200 kg (13,668 lb).

03 Can the UT-300LS mill or drill off-axis?

No rotary tool rows are given for it, and its turret is a BOT type with hydraulic drive. The UT-300LSM on the same page has a BMT-65 turret with rotary tools at 4,000 rpm, and the UT-300LSY adds a Y axis.

04 What chuck sizes does the UT-300LS take?

Spindle 1 lists 10, 12, 15 and 15 in chucks across its four columns, on A2-8 or A2-11 noses. Spindle 2 lists 6, 6, 8 and 8 in on an A2-5 nose, with a 44 mm (1.7 in) bar capacity in every column.
