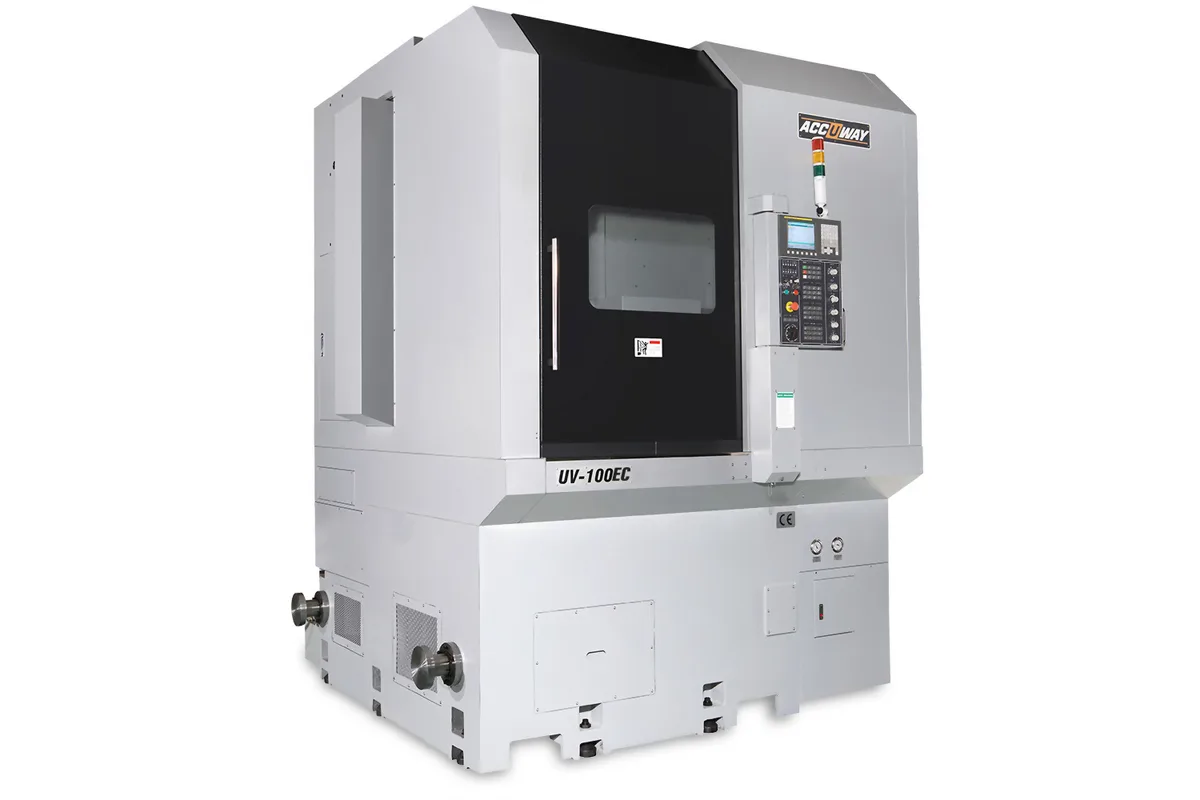

Accuway UV-100EC
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
max turning diameter
How much does the Accuway UV-100EC cost?
Price estimate
We do not have a price for the Accuway UV-100EC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UV-100EC pairs the largest turret-type vertical lathe frame with a BMT servo mechanical turret. It turns 1,000 mm (39.4 in) in diameter and 700 mm (27.6 in) in length, weighs 16,000 kg (35,273 lb), and drives its A2-15 spindle through a 2-step gearbox and belt.
Parts in this class are expensive to move. A one-metre ring or housing that needs drilled and tapped holes would normally go from the vertical lathe to a boring mill, with a crane lift and a fresh set-up in between. The BMT turret and the optional 0 degree and 90 degree rotary tool holders are there to keep that work on one machine. As on the other EC models, the table prints no rotary tool speed or power, so the milling capability must be specified with Accuway.
Spindle power is 30/37 kW (40.2/49.6 hp), with 37/45 and 45/55 kW bracketed after it, and the maximum speed is 1,200 rpm. The chuck is listed as 24 (32/40) in, and the larger hydraulic chucks appear among the options.
The turret has 12 stations, with 32 mm (1.3 in) square and 50 mm (2.0 in) round shanks. X travels 550 mm (21.7 in) at 15 m/min (591 in/min) and Z travels 800 mm (31.5 in) at 7 m/min (276 in/min), on box ways. An automatic door, a tool setter and a Heidenhain linear scale are optional. Allow 4.2 m of height.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 1,100 mm (43.3 in) |
| Max Turning Diameter | 1,000 mm (39.4 in) |
| Max Turning Length | 700 mm (27.6 in) |
| Guideway Type | Box way |
| Spindle Nose | A2-15 |
| Chuck Size | 24 (32/40) in |
| Max Spindle Speed | 1,200 rpm |
| Spindle Drive | 2-step gearbox + Belt |
| Spindle Motor Power | Cont. / 30min: 30/37 kW (40.2/49.6 hp), in brackets 37/45, 45/55 kW (49.6/60.3, 60.3/73.8 hp) |
| X Axis Travel | 550 mm (21.7 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Rapid Traverse X | 15 m/min (591 in/min) |
| Rapid Traverse Z | 7 m/min (276 in/min) |
| Turret Tooling | BMT |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Machine Dimensions | L x W x H: 3.1 x 3.7 x 4.2 m (122.0 x 145.7 x 165.4 in) |
| Machine Weight | 16,000 kg (35,273 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- BMT servo mechanical turret on a 1,000 mm (39.4 in) vertical turning center
- Geared spindle drive with 30/37 kW (40.2/49.6 hp)
- 0 degree and 90 degree rotary tool holders available as options
- Box way guideways and a 16,000 kg (35,273 lb) structure
Limitations
- Rotary tool speed and power are not given in the spec table
- Maximum spindle speed is 1,200 rpm
- X travel is 550 mm (21.7 in), less than the 765 mm (30.1 in) of the UV-100ATC
- Machine height of 4.2 m needs a tall bay
Best For
Frequently Asked Questions
01
A vertical turning center with a 1,000 mm (39.4 in) maximum turning diameter, a 24 (32/40) in chuck on an A2-15 nose and a 12-station BMT turret with servo mechanical drive. Accuway lists it in the turret type group of its vertical lathes.
02
The UV-100E has BOT tooling and a hydraulic turret. The UV-100EC has BMT tooling and a servo mechanical turret, and lists 0 degree and 90 degree rotary tool holders as options. Spindle, travels, dimensions and the 16,000 kg weight are identical.
03
The spindle drive system row reads 2-step gearbox + Belt. Motor power is 30/37 kW (40.2/49.6 hp) with 37/45 and 45/55 kW in brackets, and the listed spindle speed is 1,200 rpm.
04
3.1 x 3.7 x 4.2 m (122.0 x 145.7 x 165.4 in) as L x W x H, with a net weight of 16,000 kg (35,273 lb). A single chain type chip conveyor with chip cart is included as a standard accessory.
