Accurl SmartLINE X 6001.25

Q: How much does the Accurl SmartLINE X 6001.25 cost?

The price estimate for the Accurl SmartLINE X 6001.25 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accurl-smartline-x-6001-25#price; the request is passed to Accurl or an authorised dealer.

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

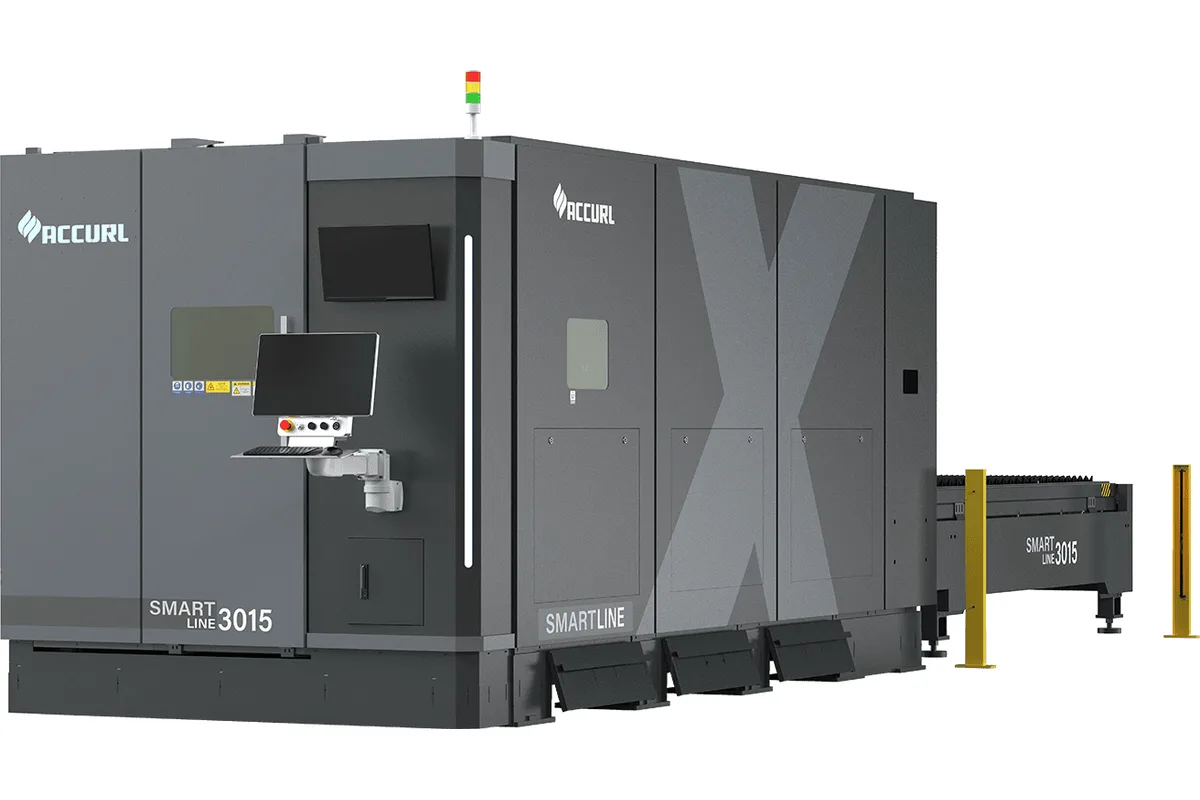

Accurl SmartLINE X series fiber laser cutting machine

Image: accurl.com, Accurl

Key Specifications

Accuracy

± 0.03 mm according to VDI/DGQ 3441

Repeatability

± 0.02 mm according to VDI/DGQ 3441

work area length

6,010 mm (236.6 in)

work area width

2,510 mm (98.8 in)

max workpiece weight

450 kg/m²

length incl peripherals

16,320 mm (642.5 in) (approximate)

How much does the Accurl SmartLINE X 6001.25 cost?

Price estimate

Uncertain

We do not have a price for the Accurl SmartLINE X 6001.25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accurl SmartLINE X 6001.25 is the top size of the SmartLINE X line. Its work area measures 6,010 mm (236.6 in) by 2,510 mm (98.8 in), and its table carries 450 kg/m², the highest rating Accurl quotes for this line.

That combination is what makes the high-power sources usable. A 30 kW laser can cut 50 mm (1.97 in) of mild steel according to Accurl's table, but only if the table can hold the plate. Here the 450 kg/m² rating gives real room for thick material across a full 6 m sheet, where the smaller SmartLINE X 3001.15 with 300 kg/m² would be limited by weight long before the laser ran out.

Size has a cost in floor area. Accurl's approximate dimensions including peripherals are 16,320 mm (642.5 in) in length, 4,150 mm (163.4 in) in width and 2,875 mm (113.2 in) in height. It is also the tallest of the three, so check door and crane clearances.

The mechanics are unchanged from the smaller models: linear guides and helical toothed racks driven on both sides on X and Y, a rack on Z, an ultra-light cast aluminium gantry, and up to 140,000 mm/min of traverse speed with ± 0.03 mm positioning accuracy. Whether a gantry spanning 2,510 mm holds its dynamic behaviour as well as a short one is a fair question for a demonstration. The BOCHU BLT head and TWINCUT S80 control are the listed equipment, and Accurl offers an automatic nozzle changer and its LasGAM gas mixing system on this line.

Full Specifications

Parameter	Value
Work Area Length	6,010 mm (236.6 in)
Work Area Width	2,510 mm (98.8 in)
Max Workpiece Weight	450 kg/m²
Length Incl Peripherals	16,320 mm (642.5 in) (approximate)
Width Incl Peripherals	4,150 mm (163.4 in) (approximate)
Height Incl Peripherals	2,875 mm (113.2 in) (approximate)
Automatic Shuttle Table	Included as standard
Cutting Process	Fiber laser
Max Laser Source Power	30 kW
Traverse Speed	up to 140,000 mm/min
Positioning Accuracy	± 0.03 mm according to VDI/DGQ 3441
Repeatability	± 0.02 mm according to VDI/DGQ 3441
Xy Axis Drive	linear guides, driven on both sides and helical toothed racks
Z Axis Drive	rack
Gantry Type	ultra-light cast aluminium gantry
CNC Control	TWINCUT S80
Main Control Panel	ergonomic 2 x 21.5" TFT multitouch panel
Operating System	Windows 10 LTSC
Max Sheet Thickness Mild Steel	18 mm (0.71 in) at 3 kW; 25 mm (0.98 in) at 6 kW; 35 mm (1.38 in) at 15 kW; 50 mm (1.97 in) at 30 kW
Max Sheet Thickness Stainless Steel	10 mm (0.39 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 35 mm (1.38 in) at 15 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Aluminium	12 mm (0.47 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 35 mm (1.38 in) at 15 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Brass	6 mm (0.24 in) at 3 kW; 15 mm (0.59 in) at 6 kW; 20 mm (0.79 in) at 15 kW; 25 mm (0.98 in) at 30 kW
Max Sheet Thickness Copper	5 mm (0.20 in) at 3 kW; 10 mm (0.39 in) at 6 kW; 15 mm (0.59 in) at 15 kW; 15 mm (0.59 in) at 30 kW

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

Largest SmartLINE X: work area 6,010 mm (236.6 in) by 2,510 mm (98.8 in)
450 kg/m² table rating, the highest in the line
Up to 140,000 mm/min traverse speed on an ultra-light cast aluminium gantry
50 mm (1.97 in) mild steel capacity with a 30 kW source
Automatic shuttle table included as standard

Limitations

Needs about 16,320 mm (642.5 in) by 4,150 mm (163.4 in) of floor
At 2,875 mm (113.2 in) it is the tallest of the three sizes
Only one control, the TWINCUT S80, is listed
For 6 m sheet above 450 kg/m², the MasterLINE X 6001.25 offers 550 kg/m²

Best For

6,000 x 2,500 mm sheet and plate Thick plate with high-power sources up to 30 kW Large nests and long parts in one piece Steel service centres and heavy fabrication

Frequently Asked Questions

01 How large a sheet does the SmartLINE X 6001.25 cut?

The work area is 6,010 mm (236.6 in) long and 2,510 mm (98.8 in) wide, matching the 6,000 x 2,500 mm table size in Accurl's list. The maximum permissible workpiece weight is 450 kg/m².

02 How much space does the SmartLINE X 6001.25 take up?

Approximately 16,320 mm (642.5 in) in length, 4,150 mm (163.4 in) in width and 2,875 mm (113.2 in) in height, including the laser source, filter system, cooler and safety equipment according to Accurl's footnote.

03 Is the SmartLINE X 6001.25 or the MasterLINE X 6001.25 the better fit?

Both cut the same sheet. The MasterLINE X 6001.25 is listed at up to 180,000 mm/min and 550 kg/m², with a choice of controls. The SmartLINE X 6001.25 is listed at up to 140,000 mm/min and 450 kg/m² with the TWINCUT S80.

04 What can the SmartLINE X 6001.25 cut at high power?

With a 15 kW source the table shows 35 mm (1.38 in) in mild steel, stainless and aluminium. With 30 kW it shows 50 mm (1.97 in) mild steel and 40 mm (1.57 in) stainless and aluminium, 25 mm (0.98 in) brass and 15 mm (0.59 in) copper.
