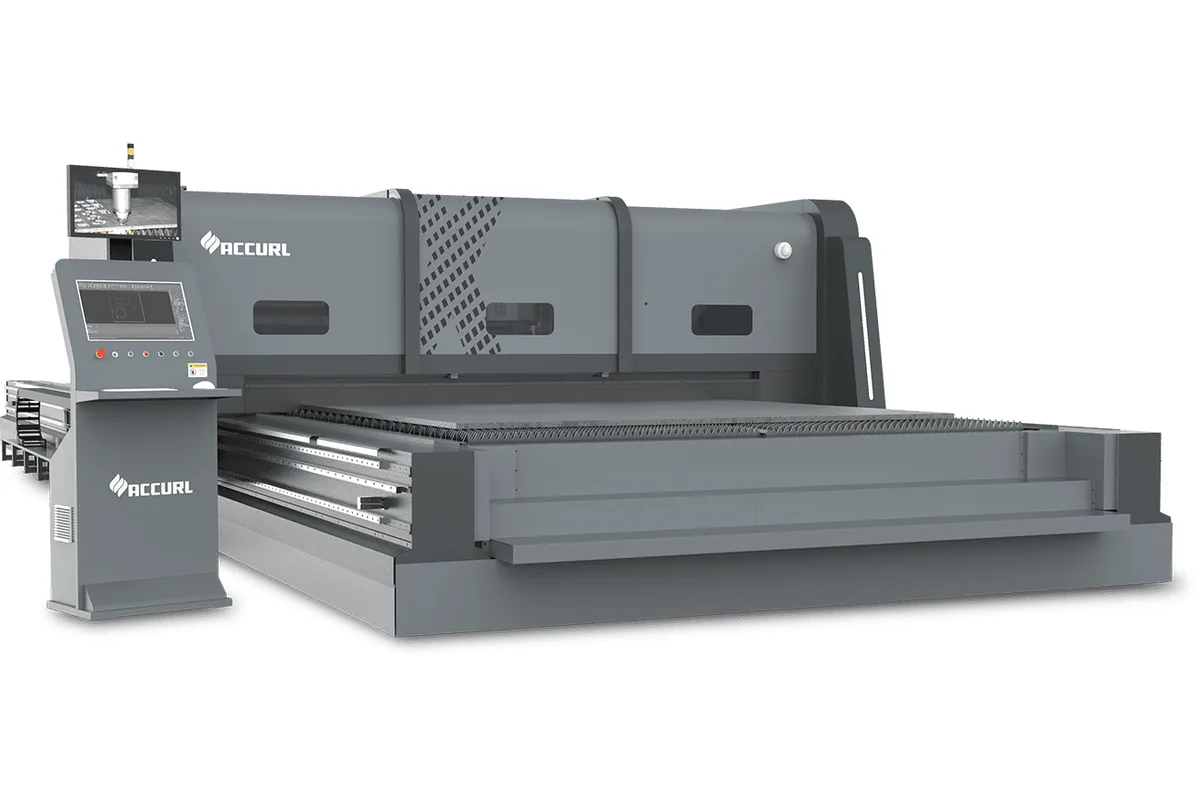

Accurl SMART Giant X 12001.30L
Image: accurl.com, Accurl
Key Specifications
Accuracy
Repeatability
work area length
work area width
max workpiece weight
length incl peripherals
How much does the Accurl SMART Giant X 12001.30L cost?
Price estimate
We do not have a price for the Accurl SMART Giant X 12001.30L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl SMART Giant X 12001.30L takes the 12 m plate that mills roll for structural and shipbuilding work. Its work area is 12,100 mm (476.4 in) long and 3,100 mm (122 in) wide, on a table rated at 750 kg/m².
Cutting a 12 m plate in one piece removes a weld from every long part. Girder webs, crane booms, hull panels and trailer rails all benefit, and so does nesting, because a long plate gives the software far more freedom than two short ones. This is the practical case for the model, and it does not depend on speed: the line's traverse speed is up to 49,500 mm/min.
Over such a length, the drive concept deserves attention. X and Y run on linear guides with helical toothed racks and are driven on both sides, and the steel crossbeam has what Accurl calls an intelligent lubrication system. Stated positioning accuracy and repeatability are ± 0.05 mm according to VDI/DGQ 3441. Ask how that figure is verified over the full 12,100 mm, since thermal growth of the bed is not small at this size.
The installed cell is approximately 16,930 mm (666.5 in) long, 5,475 mm (215.6 in) wide and 2,900 mm (114.2 in) high. Sources of up to 60 kW are offered; the thickness table lists 40 mm (1.57 in) of mild steel, stainless and aluminium at 20 kW. Longer beds are possible, because the standard models can be extended by 3,000 mm or 6,000 mm segments.
Full Specifications
| Parameter | Value |
|---|---|
| Work Area Length | 12,100 mm (476.4 in) |
| Work Area Width | 3,100 mm (122 in) |
| Max Workpiece Weight | 750 kg/m² |
| Length Incl Peripherals | 16,930 mm (666.5 in) (approximate) |
| Width Incl Peripherals | 5,475 mm (215.6 in) (approximate) |
| Height Incl Peripherals | 2,900 mm (114.2 in) (approximate) |
| Automatic Shuttle Table | Included as standard |
| Cutting Process | Fiber laser |
| Max Laser Source Power | 60 kW |
| Traverse Speed | up to 49,500 mm/min |
| Positioning Accuracy | ± 0.05 mm according to VDI/DGQ 3441 |
| Repeatability | ± 0.05 mm according to VDI/DGQ 3441 |
| Xy Axis Drive | linear guides, driven on both sides and helical toothed racks |
| Z Axis Drive | rack |
| Gantry Type | steel crossbeam with intelligent lubrication system |
| CNC Control | MSE SmartControl / TWINCUT S80 |
| Main Control Panel | ergonomic 2 x 21.5" TFT multitouch panel |
| Operating System | Windows 11 LTSC / Windows 10 LTSC |
| Max Sheet Thickness Mild Steel | 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 20 kW; 50 mm (1.97 in) at 30 kW |
| Max Sheet Thickness Stainless Steel | 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 20 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Aluminium | 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 20 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Brass | 20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 20 kW; 25 mm (0.98 in) at 30 kW |
| Max Sheet Thickness Copper | 15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 20 kW; 15 mm (0.59 in) at 30 kW |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 12,100 mm (476.4 in) work length for full mill-length plate
- 3,100 mm (122 in) width and 750 kg/m² table rating
- X and Y axes driven on both sides on helical toothed racks
- 40 mm (1.57 in) in mild steel, stainless and aluminium at 20 kW
- Bed can be extended by 3,000 mm or 6,000 mm segments
Limitations
- Requires a bay of about 16,930 mm (666.5 in) by 5,475 mm (215.6 in)
- Traverse speed limited to up to 49,500 mm/min
- No figures below 12 kW in the thickness table
- Cutting thickness above 30 kW is on request
Best For
Frequently Asked Questions
01
The work area is 12,100 mm (476.4 in) long and 3,100 mm (122 in) wide. If more is needed, Accurl says the standard models can be extended by 3,000 mm or 6,000 mm segments up to a maximum of 42,900 mm.
02
Approximately 16,930 mm (666.5 in) in length, 5,475 mm (215.6 in) in width and 2,900 mm (114.2 in) in height. Accurl's footnote says the figure includes the laser source, filter system, cooler and safety equipment.
03
By helical toothed racks with linear guides, driven on both sides, as Accurl lists for the X and Y axes. The Z axis is rack driven and the gantry is a steel crossbeam with an intelligent lubrication system.
04
With 12 kW, 30 mm (1.18 in) in mild steel, stainless and aluminium. With 20 kW, 40 mm (1.57 in) in all three. With 30 kW, 50 mm (1.97 in) in mild steel. Brass ranges from 20 mm (0.79 in) to 25 mm (0.98 in).
