Prima Power Platino Linear 2040
Image: primapower.com, Prima Power
Key Specifications
x axis travel
y axis travel
z axis travel
axis speed
trajectory speed
positioning accuracy pa
How much does the Prima Power Platino Linear 2040 cost?
Price estimate
We do not have a price for the Prima Power Platino Linear 2040 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Large-format sheet is the job of the Prima Power Platino Linear 2040. Its working area is X 4,064 mm (160.0 in) by Y 2,032 mm (80.0 in), with a Z of 150 mm (5.9 in), against 3,048 mm by 1,524 mm on the Platino Linear 1530.
Prima Power states that both sizes offer the same efficiency and cutting quality, and the table agrees. The 2040 keeps the 100 m/min axis speed, the 140 m/min trajectory speed and the 0.03 mm figures for position accuracy (Pa) and repeatability (Ps). On a bigger gantry, holding the same speed and accuracy is the point worth noting; the aluminum carriage, which reduces the weight of the moving parts, is part of how that is done.
A wider bed brings practical changes for the operator. Sheets of this size are loaded from the side through a full-length cabin opening. More of the nest lies far from the edge, so access for clearing tip-ups matters, and the synthetic granite frame is described as giving good accessibility to the working area.
Nesting efficiency tends to improve with sheet size, and Prima Power quotes up to 96% sheet utilization for the Platino Linear. Sources are 4000 W, 6000 W or 8000 W. As with the smaller machine, no thickness limits are printed, and the large format makes automation a bigger question: the machine accepts modules for loading, unloading, picking, sorting and stacking.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,064 mm (160.0 in) |
| Y Axis Travel | 2,032 mm (80.0 in) |
| Z Axis Travel | 150 mm (5.9 in) |
| Axis Speed | 100 m/min |
| Trajectory Speed | 140 m/min |
| Positioning Accuracy Pa | 0.03 mm (VDI/DGQ 3441) |
| Repeatability Ps | 0.03 mm (VDI/DGQ 3441) |
| Laser Source | Fiber, 4000 W, 6000 W or 8000 W |
Specifications sourced from primapower.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Working area of 4,064 x 2,032 mm (160.0 x 80.0 in)
- Same 100 m/min axis speed and 140 m/min trajectory speed as the smaller size
- 0.03 mm position accuracy and repeatability kept on the larger gantry
- Aluminum carriage reduces the weight of the moving parts
- Up to 96% sheet utilization quoted by Prima Power
Limitations
- Maximum thickness per source is not published
- Z travel is 150 mm (5.9 in); flat sheet only
- Highest source listed is 8000 W
- Large sheets make loading and unloading automation close to a necessity, and the modules are separate
Best For
Frequently Asked Questions
01
X is 4,064 mm (160.0 in), Y is 2,032 mm (80.0 in) and Z is 150 mm (5.9 in). The Platino Linear 1530 has X 3,048 mm and Y 1,524 mm with the same Z.
02
No. Both are listed with an axis speed of 100 m/min and a trajectory speed of 140 m/min, and with position accuracy and repeatability of 0.03 mm according to VDI/DGQ 3441.
03
Synthetic granite. Prima Power cites accessibility to the working area, vibration absorption, thermal stability and weather resistance. The carriage is aluminum, which lowers the weight of the moving parts while keeping rigidity.
04
Up to 40%. The figure is tied to two options in the tech suites, ECO-TOUCH Cut and Gas Mixer. Prima Power also quotes +40% wall-plug efficiency and up to 96% sheet utilization for the Platino Linear.
More from Prima Power
Other CNC Laser Cutting Machines
Trumpf TruLaser 1040 Fiber
Dener Pro DC 4020
Cincinnati CL-900 5' x 10'

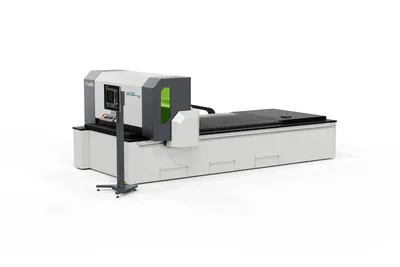

LVD LaserTWO 4020
