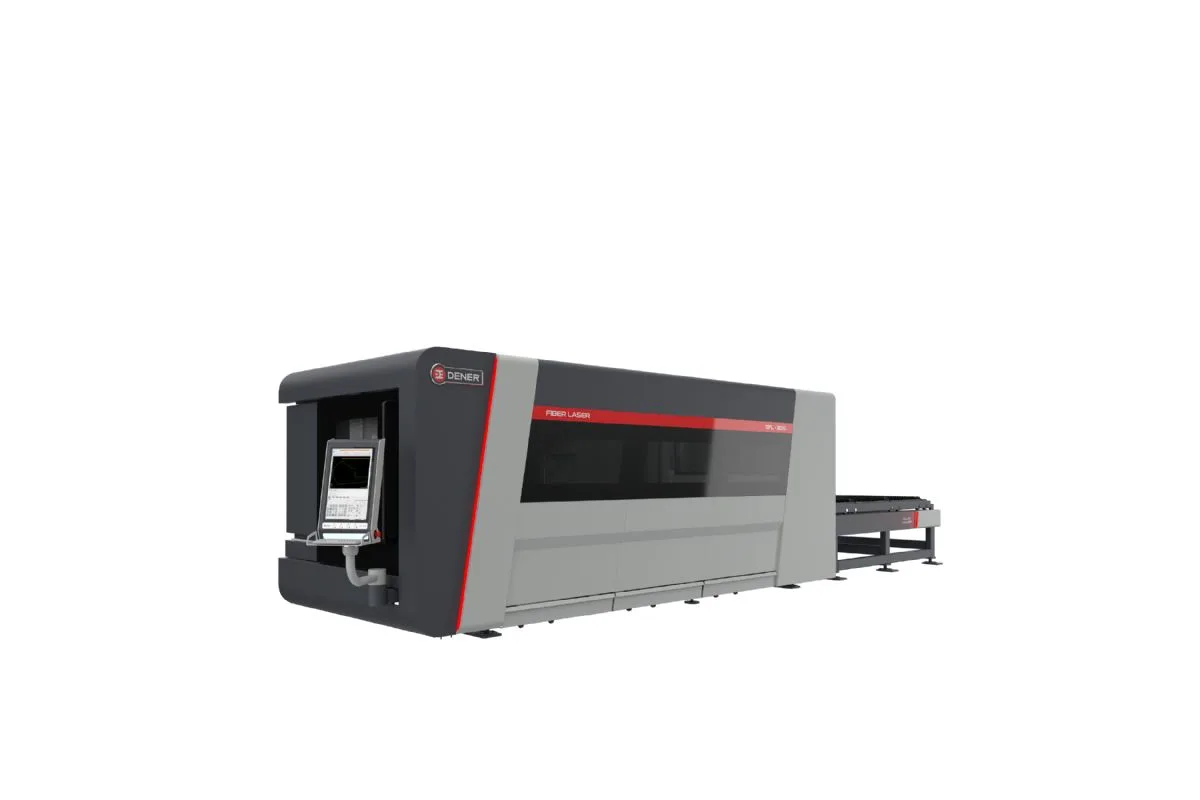

Dener Pro DC 4020
Image: en.dener.com, Dener
Key Specifications
Accuracy
Repeatability
xy acceleration
z acceleration
xy axis speed
z axis travel
How much does the Dener Pro DC 4020 cost?
Price estimate
We do not have a price for the Dener Pro DC 4020 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Between the compact and the long tables of Dener's fiber laser range sits the Dener Pro DC 4020. It is a flatbed fiber laser cutting machine on the 4020 table size, with two exchange pallets and a choice of resonators from 3 kW to 20 kW.
A larger table is chosen for bigger blanks and for nesting efficiency: more parts per sheet, fewer remnants. The cost shows in one row of the table. Pallet change time is 22 s here.
Motion figures do not change with the table. The gantry reaches an X-Y speed of 120 m/min at 1.5 G, and Dener describes the frame as a one-piece welded structure resistant to high acceleration. The Z axis has 350 mm (13.8 in) of travel and 1 G of acceleration.
Component choices are listed openly, which helps when judging long-term parts supply: Yaskawa motor and drive, THK guide rail, Framo Morat rack, pinion and gearbox, Hoerbiger gas regulator, SMC pneumatics. Dener names Max and Raycus as resonator alternatives.
The cutting head changes with power. A Blt 421S serves 3-8 kW, a Blt 643H serves 12-15 kW and a Blt 662H serves 20 kW. According to Dener, the lens is replaced in 2 minutes using ready-to-use optical cartridges.
Full Specifications
| Parameter | Value |
|---|---|
| Xy Acceleration | 1.5 G |
| Z Acceleration | 1 G |
| Xy Axis Speed | 120 m/min |
| Z Axis Travel | 350 mm (13.8 in) |
| Positioning Accuracy | 0.05 mm |
| Repeatability | 0.03 mm |
| Pallet Change Time | 22 s |
| Control 3 8 Kw | FsCut4000 (3-8 kW) |
| Control 12 20 Kw | FsCut8000 (12-20 kW) |
| Interface 3 8 Kw | CypCut (3-8 kW) |
| Interface 12 20 Kw | HypCut (12-20 kW) |
| Laser Head 3 8 Kw | Blt 421S (3-8 kW) |
| Laser Head 12 15 Kw | Blt 643H (12-15 kW) |
| Laser Head 20 Kw | Blt 662H (20 kW) |
| Gearbox | Framo Morat |
| Motor and Drive | Yaskawa |
| Rack and Pinion | Framo Morat |
| Guide Rail | THK |
| Gas Regulator | Hoerbiger |
| Pneumatic Components | SMC |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4020 table size with an automatic pallet changing system
- 120 m/min X-Y speed at 1.5 G on a one-piece welded frame
- Named drive and motion components: Yaskawa, THK, Framo Morat
- Lens replacement in 2 minutes with optical cartridges
Limitations
- Pallet change takes 22 s, longer than on the Pro DC 3015 at 16 s
- No machine weight, footprint or connected load in the table
- Laser safety barrier, UPS and voltage stabilizer are optional
Best For
Frequently Asked Questions
01
A gantry fiber laser cutting machine from the Pro DC series in the 4020 table size. It has an exchange table and is offered with laser power from 3 kW to 20 kW.
02
The table lists a Blt 421S head for 3-8 kW, a Blt 643H for 12-15 kW and a Blt 662H for 20 kW. Dener says BOCI cutting heads are provided as standard across its fiber laser series.
03
Positioning accuracy is 0.05 mm and repeatability is 0.03 mm. These describe axis positioning; cut-part tolerance also depends on material, thickness and parameters.
04
A Raycus resonator, a 21.5-inch touchscreen, CypNest software, a BOCI cutting head, the exchange table, a chiller, automatic gas selection, cabinet air conditioning and a slag cart.
