Accurl SMART Giant X 9001.30L

Q: How much does the Accurl SMART Giant X 9001.30L cost?

The price estimate for the Accurl SMART Giant X 9001.30L is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accurl-smart-giant-x-9001-30l#price; the request is passed to Accurl or an authorised dealer.

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

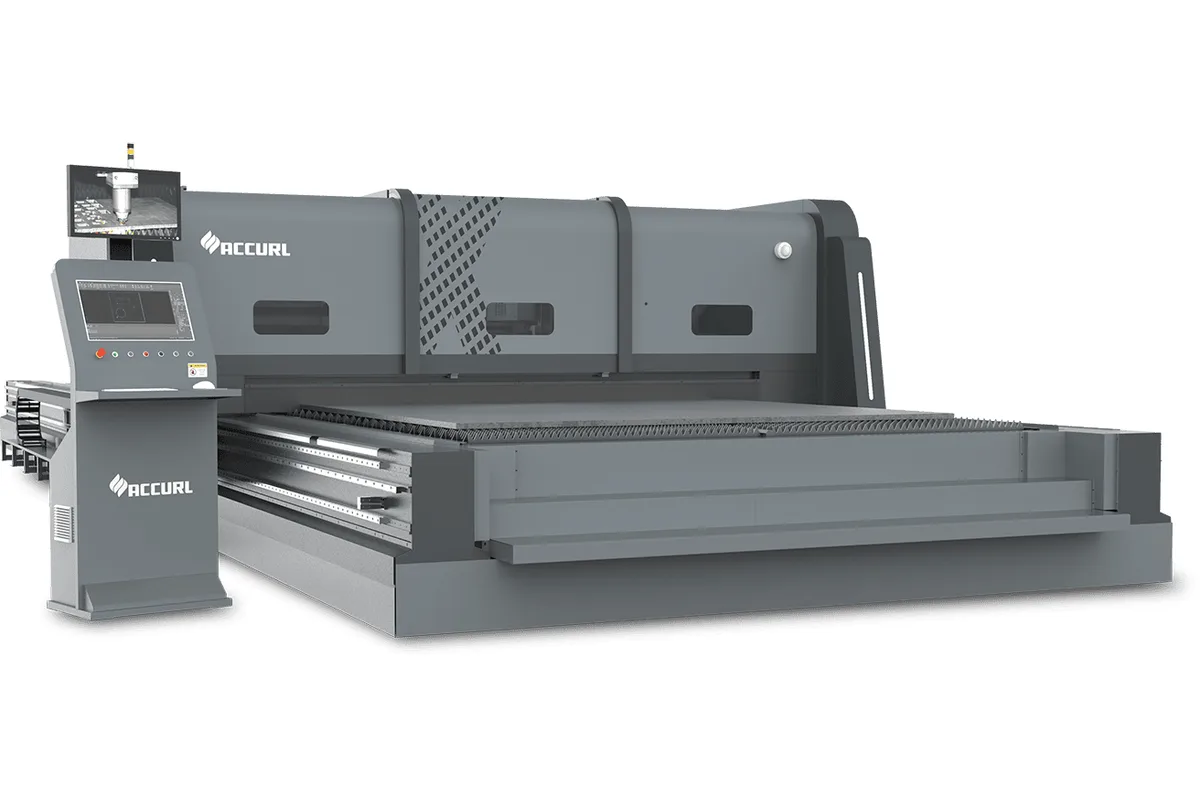

Accurl SMART Giant X series large-format fiber laser cutting machine

Image: accurl.com, Accurl

Key Specifications

Accuracy

± 0.05 mm according to VDI/DGQ 3441

Repeatability

± 0.05 mm according to VDI/DGQ 3441

work area length

9,100 mm (358.3 in)

work area width

3,100 mm (122 in)

max workpiece weight

750 kg/m²

length incl peripherals

13,930 mm (548.4 in) (approximate)

How much does the Accurl SMART Giant X 9001.30L cost?

Price estimate

Uncertain

We do not have a price for the Accurl SMART Giant X 9001.30L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Nine metres of bed is the step at which a large-format laser can hold two plates end to end. The Accurl SMART Giant X 9001.30L has a work area of 9,100 mm (358.3 in) by 3,100 mm (122 in), so one section can be loaded or cleared while the gantry cuts on another.

That way of working, more than raw speed, is where the machine earns its output. Traverse speed is up to 49,500 mm/min and accuracy ± 0.05 mm for both positioning and repeatability, figures set by a steel crossbeam sized for stiffness. On thick plate the cutting feed is slow in any case, and the time saved by never stopping to change sheets is what counts.

The table is rated at 750 kg/m², the same on all four standard models. At that rating a full-width plate of the thicknesses in Accurl's table can sit on the bed: the table gives 30 mm (1.18 in) at 12 kW in mild steel, stainless and aluminium, and 50 mm (1.97 in) of mild steel at 30 kW. Brass is listed at 25 mm (0.98 in) and copper at 15 mm (0.59 in) at the top power.

Approximate dimensions with peripherals are 13,930 mm (548.4 in) by 5,475 mm (215.6 in), with a height of 2,900 mm (114.2 in). Accurl equips the series with a THERMACUT Ex-Trabeam or BOCHU BLT head and an MSE SmartControl or TWINCUT S80 control. A bevel head for cuts up to 45° is announced as a future option, which will matter to anyone preparing weld edges on plate.

Full Specifications

Parameter	Value
Work Area Length	9,100 mm (358.3 in)
Work Area Width	3,100 mm (122 in)
Max Workpiece Weight	750 kg/m²
Length Incl Peripherals	13,930 mm (548.4 in) (approximate)
Width Incl Peripherals	5,475 mm (215.6 in) (approximate)
Height Incl Peripherals	2,900 mm (114.2 in) (approximate)
Automatic Shuttle Table	Included as standard
Cutting Process	Fiber laser
Max Laser Source Power	60 kW
Traverse Speed	up to 49,500 mm/min
Positioning Accuracy	± 0.05 mm according to VDI/DGQ 3441
Repeatability	± 0.05 mm according to VDI/DGQ 3441
Xy Axis Drive	linear guides, driven on both sides and helical toothed racks
Z Axis Drive	rack
Gantry Type	steel crossbeam with intelligent lubrication system
CNC Control	MSE SmartControl / TWINCUT S80
Main Control Panel	ergonomic 2 x 21.5" TFT multitouch panel
Operating System	Windows 11 LTSC / Windows 10 LTSC
Max Sheet Thickness Mild Steel	30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 20 kW; 50 mm (1.97 in) at 30 kW
Max Sheet Thickness Stainless Steel	30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 20 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Aluminium	30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 20 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Brass	20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 20 kW; 25 mm (0.98 in) at 30 kW
Max Sheet Thickness Copper	15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 20 kW; 15 mm (0.59 in) at 30 kW

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

9,100 mm (358.3 in) by 3,100 mm (122 in) work area holds more than one plate
Table rated at 750 kg/m² of workpiece weight
Steel crossbeam with intelligent lubrication system
Up to 50 mm (1.97 in) mild steel at 30 kW
MSE SmartControl or TWINCUT S80 control

Limitations

Up to 49,500 mm/min traverse speed makes it slow on thin sheet
About 13,930 mm (548.4 in) by 5,475 mm (215.6 in) of floor
Bevel cutting is announced, not yet offered
Accuracy of ± 0.05 mm is looser than the enclosed X-Series lines

Best For

Two plates on one bed, cut and unloaded in turn Wide plate up to 3,100 mm (122 in) Thick-plate work with 12 kW to 30 kW sources Heavy fabrication with crane loading

Frequently Asked Questions

01 How big is the SMART Giant X 9001.30L?

The work area is 9,100 mm (358.3 in) long and 3,100 mm (122 in) wide. Including peripherals Accurl gives approximately 13,930 mm (548.4 in) in length, 5,475 mm (215.6 in) in width and 2,900 mm (114.2 in) in height.

02 What load can the SMART Giant X 9001.30L table take?

The maximum permissible workpiece weight is 750 kg/m². Accurl asks buyers to select the sheet metal format according to that figure, which on this line leaves room for the thick plate the high-power sources are meant for.

03 Which cutting head and control does the SMART Giant X 9001.30L use?

Accurl lists a THERMACUT Ex-Trabeam or a BOCHU BLT cutting head and a MicroStep Europa MSE SmartControl or TWINCUT S80 control, with Eckelmann or Yaskawa servo drives, WITTENSTEIN alpha racks and BOSCH Rexroth linear guides.

04 Does the SMART Giant X 9001.30L cut bevels?

Not at present, according to the page. Accurl announces a laser rotator for bevel cuts up to 45° as coming soon and describes it as a future option, so ask about availability if weld preparation is part of the work.
