LVD Electra FL 3015

Est. $250,000 - $600,000 Possible older model Specs verified 2026-03-28 · machinetools.com Updated 2026-10-03

This model was not found in LVD's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.

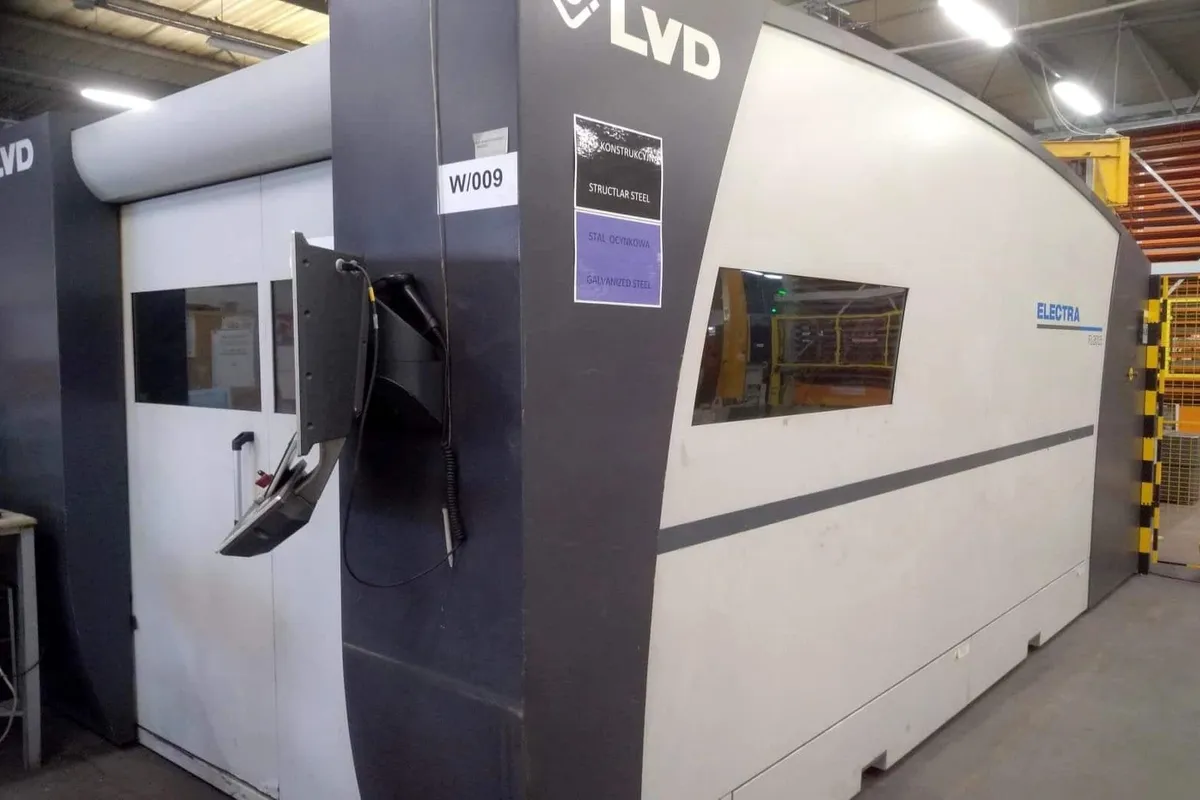

LVD Electra FL 3015 CNC Laser Cutting Machines

Key Specifications

Weight

15,000 kg (33,069 lb)

Accuracy

±0.03 mm (±0.0012 in)

Repeatability

±0.015 mm (±0.0006 in)

laser source

Fiber laser, 3 kW to 10 kW

working area

3,000 x 1,500 mm (118 x 59 in)

axis stroke x

3,080 mm (121.3 in)

How much does the LVD Electra FL 3015 cost?

Estimated price range

Est.$250,000 - $600,000

Our best estimate for a cnc laser cutting machine in this class — not a quote from LVD. Configuration moves it a long way.

Overview

The LVD Electra FL 3015 is a flatbed fiber laser cutting machine for 3,000 x 1,500 mm (118 x 59 in) sheet, listed with a source of 3 kW to 10 kW. The listed figures give axis strokes of 3,080 mm (121.3 in) in X, 1,555 mm (61.2 in) in Y and 100 mm (3.9 in) in Z, so the head overtravels the nominal sheet by a small margin on both long axes.

Rapid feed is listed at 170 m/min (557 ft/min), with positioning accuracy of ±0.03 mm (±0.0012 in) and repeatability of ±0.015 mm (±0.0006 in). Sheets ride on a dual shuttle table system, so one table can be unloaded and reloaded while the other is under the head. Maximum sheet weight is 920 kg (2,028 lb). That limit matters at the thick end: work out the mass of a full sheet in the thickness you plan to cut before assuming the shuttle will carry it.

The cutting head is listed as a Precitec HP SSL with anti-shock and obstacle detection, and beam focus adjusts automatically. Assist gas changes over automatically between nitrogen, oxygen and compressed air. The operator works at a 19-inch touchscreen with the Touch-L interface. Overall dimensions are 11,000 x 6,000 x 2,250 mm (433 x 236 x 89 in) and the weight is 15,000 kg (33,069 lb).

One row of the table describes a single 10 kW machine built in 2018 with a nozzle changer option and a 10 shelf compact tower. Those items belong to that machine, not to every Electra FL 3015, and the source on any particular unit can sit anywhere between 3 kW and 10 kW. Confirm power, automation and options from the build sheet of the machine on offer.

Full Specifications

Parameter	Value
Laser Source	Fiber laser, 3 kW to 10 kW
Working Area	3,000 x 1,500 mm (118 x 59 in)
Axis Stroke X	3,080 mm (121.3 in)
Axis Stroke Y	1,555 mm (61.2 in)
Axis Stroke Z	100 mm (3.9 in)
Rapid Feed Speed	170 m/min (557 ft/min)
Max Sheet Weight	920 kg (2,028 lb)
Cutting Head	Precitec HP SSL with anti-shock and obstacle detection
Focus Control	Automatic beam focus adjustment
Gas Changeover	Automatic (Nitrogen, Oxygen, Compressed Air)
CNC Control	Siemens SINUMERIK 840D sl with Touch-L interface
Display	19-inch touchscreen
Shuttle Tables	Dual shuttle table system
Overall Dimensions	11,000 x 6,000 x 2,250 mm (433 x 236 x 89 in)
Machine Weight	15,000 kg (33,069 lb)
Positioning Accuracy	±0.03 mm (±0.0012 in)
Repeatability	±0.015 mm (±0.0006 in)
CNC Control	CNC (LVD Control)
Description	10 KW LVD-Stippit Model Electra FL 3015 Fiber Laser with nozzle changer option and 10 shelf compact tower was manufactured in 2018
Sheet W	5'
Sheet L	10'
Wattage	10 kw
Ipm	6692 ipm
X	121"
Y	61"
Z	3.9"

Specifications sourced from machinetools.com — verified 2026-03-28

Strengths & Limitations

Strengths

Rapid feed listed at 170 m/min (557 ft/min) across a 3,080 mm (121.3 in) X stroke and a 1,555 mm (61.2 in) Y stroke
Dual shuttle table system, so loading and unloading happen away from the cutting area
Automatic gas changeover between nitrogen, oxygen and compressed air, with automatic beam focus adjustment
Listed positioning accuracy of ±0.03 mm (±0.0012 in) and repeatability of ±0.015 mm (±0.0006 in)
Cutting head listed with anti-shock and obstacle detection

Limitations

Maximum sheet weight is 920 kg (2,028 lb), which caps plate thickness on a full 3,000 x 1,500 mm (118 x 59 in) sheet
Z stroke is 100 mm (3.9 in), so this is a machine for flat sheet, not for formed or tall parts
The listed figures give no cutting thickness for any material, and source power varies from 3 kW to 10 kW between machines
Needs floor space for 11,000 x 6,000 mm (433 x 236 in) and a floor that carries 15,000 kg (33,069 lb)

Best For

Flat sheet up to 3,000 x 1,500 mm (118 x 59 in) Mixed nitrogen, oxygen and compressed-air cutting with automatic gas changeover Continuous running with one shuttle table loading while the other cuts Sheets within the 920 kg (2,028 lb) table limit

Frequently Asked Questions

01 What sheet size does the Electra FL 3015 take?

The working area is listed as 3,000 x 1,500 mm (118 x 59 in). Axis strokes are 3,080 mm (121.3 in) in X and 1,555 mm (61.2 in) in Y, slightly beyond the sheet, with 100 mm (3.9 in) of Z. Maximum sheet weight is 920 kg (2,028 lb).

02 What laser power does the Electra FL 3015 have?

The listed figures give a fiber laser from 3 kW to 10 kW, so power depends on the individual machine. One row of the table refers to a 10 kW machine built in 2018. Check the source rating on the unit you are considering, because no cutting thickness is listed for any power level.

03 How fast and how accurate is the Electra FL 3015?

Rapid feed is listed at 170 m/min (557 ft/min). Positioning accuracy is ±0.03 mm (±0.0012 in) and repeatability is ±0.015 mm (±0.0006 in). Cutting speed itself depends on material, thickness and source power, and the listed figures do not state it.

04 How much floor space does the Electra FL 3015 need?

Overall dimensions are listed as 11,000 x 6,000 x 2,250 mm (433 x 236 x 89 in) and the weight as 15,000 kg (33,069 lb). The table does not say whether that footprint includes a storage tower, so measure the installation you are looking at and allow for sheet handling around the shuttle tables.
