Accurl SmartLINE X 3001.15

Q: How much does the Accurl SmartLINE X 3001.15 cost?

The price estimate for the Accurl SmartLINE X 3001.15 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accurl-smartline-x-3001-15#price; the request is passed to Accurl or an authorised dealer.

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

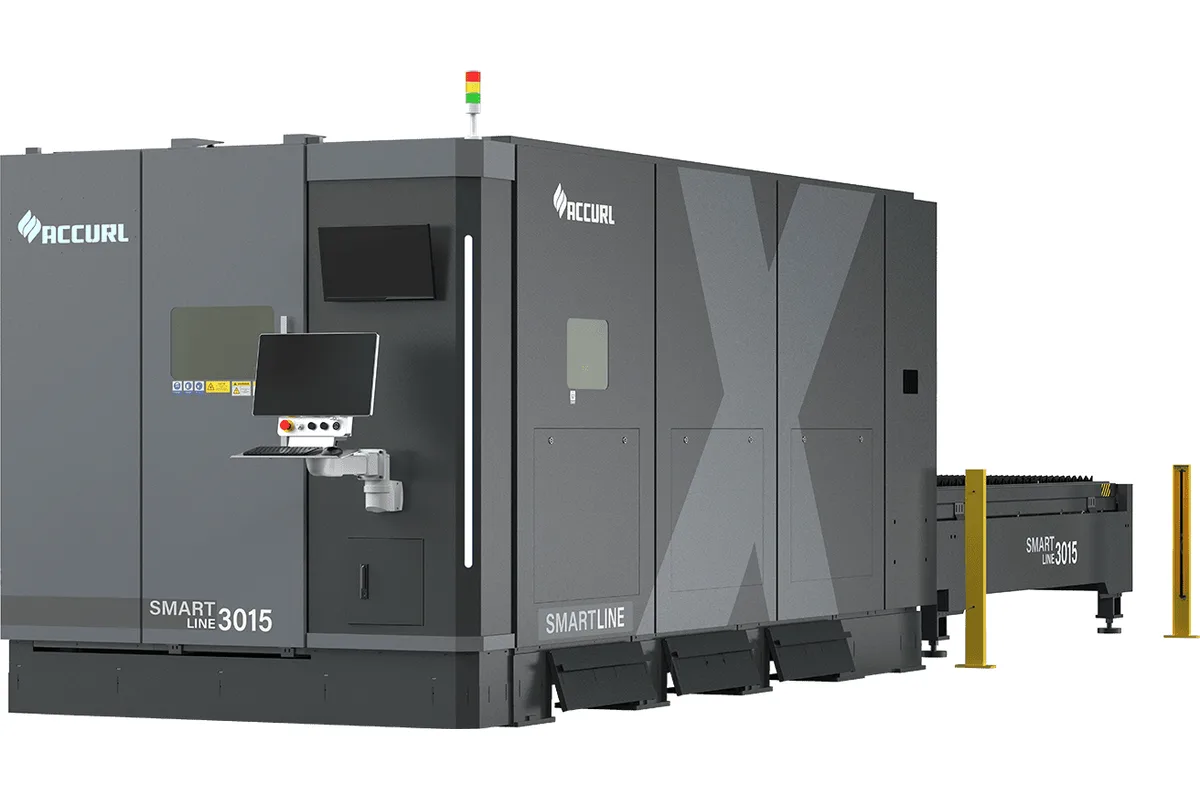

Accurl SmartLINE X series fiber laser cutting machine

Image: accurl.com, Accurl

Key Specifications

Accuracy

± 0.03 mm according to VDI/DGQ 3441

Repeatability

± 0.02 mm according to VDI/DGQ 3441

work area length

3,010 mm (118.5 in)

work area width

1,510 mm (59.4 in)

max workpiece weight

300 kg/m²

length incl peripherals

9,354 mm (368.3 in) (approximate)

How much does the Accurl SmartLINE X 3001.15 cost?

Price estimate

Uncertain

We do not have a price for the Accurl SmartLINE X 3001.15 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accurl SmartLINE X 3001.15 is the entry size of the SmartLINE X line: a fiber laser with an automated changing table, a work area of 3,010 mm (118.5 in) by 1,510 mm (59.4 in) and a table rated at 300 kg/m². Accurl positions the line for small and medium-sized companies that want production speed at a contained investment.

The moving structure is where it differs from the compact models. The gantry is an ultra-light cast aluminium crossbeam, which Accurl says is made of T6061 aluminium and allows accelerations of up to 3G. Traverse speed is up to 140,000 mm/min. Positioning accuracy is ± 0.03 mm and repeatability ± 0.02 mm, according to VDI/DGQ 3441. The shuttle table takes 15 seconds to extend or retract.

Unlike the other X-Series lines, the SmartLINE X is listed with one component set only: a BOCHU BLT cutting head, the TWINCUT S80 control on Windows 10 LTSC and Yaskawa servo drives, with WITTENSTEIN alpha racks and BOSCH Rexroth linear guides. Sources of 3 to 30 kW are available. With 3 kW the table shows 18 mm (0.71 in) mild steel; with 30 kW, 50 mm (1.97 in).

Plan the floor carefully. Including laser source, filter, cooler and safety equipment, Accurl gives an approximate 9,354 mm (368.3 in) in length, 2,700 mm (106.3 in) in width and 2,580 mm (101.6 in) in height, about three times the sheet length because of the pallet changer.

Full Specifications

Parameter	Value
Work Area Length	3,010 mm (118.5 in)
Work Area Width	1,510 mm (59.4 in)
Max Workpiece Weight	300 kg/m²
Length Incl Peripherals	9,354 mm (368.3 in) (approximate)
Width Incl Peripherals	2,700 mm (106.3 in) (approximate)
Height Incl Peripherals	2,580 mm (101.6 in) (approximate)
Automatic Shuttle Table	Included as standard
Cutting Process	Fiber laser
Max Laser Source Power	30 kW
Traverse Speed	up to 140,000 mm/min
Positioning Accuracy	± 0.03 mm according to VDI/DGQ 3441
Repeatability	± 0.02 mm according to VDI/DGQ 3441
Xy Axis Drive	linear guides, driven on both sides and helical toothed racks
Z Axis Drive	rack
Gantry Type	ultra-light cast aluminium gantry
CNC Control	TWINCUT S80
Main Control Panel	ergonomic 2 x 21.5" TFT multitouch panel
Operating System	Windows 10 LTSC
Max Sheet Thickness Mild Steel	18 mm (0.71 in) at 3 kW; 25 mm (0.98 in) at 6 kW; 35 mm (1.38 in) at 15 kW; 50 mm (1.97 in) at 30 kW
Max Sheet Thickness Stainless Steel	10 mm (0.39 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 35 mm (1.38 in) at 15 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Aluminium	12 mm (0.47 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 35 mm (1.38 in) at 15 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Brass	6 mm (0.24 in) at 3 kW; 15 mm (0.59 in) at 6 kW; 20 mm (0.79 in) at 15 kW; 25 mm (0.98 in) at 30 kW
Max Sheet Thickness Copper	5 mm (0.20 in) at 3 kW; 10 mm (0.39 in) at 6 kW; 15 mm (0.59 in) at 15 kW; 15 mm (0.59 in) at 30 kW

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ultra-light cast aluminium gantry, with accelerations of up to 3G stated for the line
Traverse speed up to 140,000 mm/min and ± 0.02 mm repeatability
Shuttle table changes in 15 seconds
Sources from 3 to 30 kW; 50 mm (1.97 in) mild steel at 30 kW
Smallest footprint of the line: about 9,354 mm (368.3 in) by 2,700 mm (106.3 in)

Limitations

Table load of 300 kg/m² is the lowest of the three SmartLINE X sizes
Only the TWINCUT S80 control is listed; the MSE SmartControl is not offered on this line
Needs about 9,354 mm (368.3 in) of length for a 3,010 mm (118.5 in) work area
Only the BOCHU BLT cutting head is listed

Best For

First production laser for a small or medium-sized shop 3,000 x 1,500 mm sheet with automatic pallet change Thin sheet cut at high traverse speeds Power levels from 3 kW upward as work grows

Frequently Asked Questions

01 What is the work area of the SmartLINE X 3001.15?

3,010 mm (118.5 in) long and 1,510 mm (59.4 in) wide, which corresponds to the 3,000 x 1,500 mm table size on Accurl's list. The maximum permissible workpiece weight is given per area, at 300 kg/m².

02 How much floor space does the SmartLINE X 3001.15 need?

Accurl gives approximate dimensions including peripherals of 9,354 mm (368.3 in) length, 2,700 mm (106.3 in) width and 2,580 mm (101.6 in) height. The figure includes the laser source, filter system, cooler and safety equipment.

03 How fast is the SmartLINE X 3001.15?

Traverse speed is up to 140,000 mm/min, and Accurl states that the aluminium crossbeam enables accelerations of up to 3G. The shuttle table takes 15 seconds to extend or retract, which sets the pallet-change time between sheets.

04 Which laser sources are offered on the SmartLINE X 3001.15?

Sources with a power output of 3 to 30 kW; for the European version Accurl names Raycus. The thickness table lists mild steel at 18 mm (0.71 in) for 3 kW, 25 mm (0.98 in) for 6 kW, 35 mm (1.38 in) for 15 kW and 50 mm (1.97 in) for 30 kW.
