Accurl MasterLINE X 6001.20

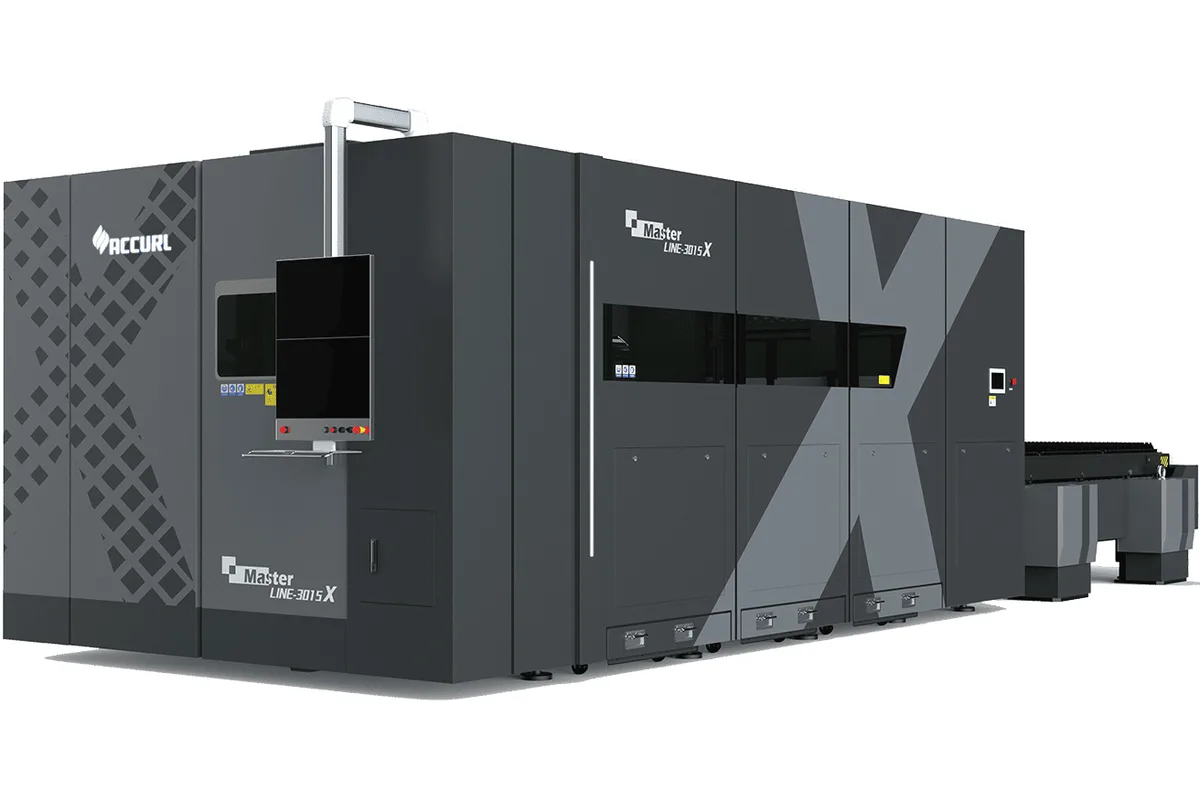

Image: accurl.com, Accurl
Key Specifications
Accuracy
Repeatability
work area length
work area width
max workpiece weight
length incl peripherals
How much does the Accurl MasterLINE X 6001.20 cost?
Price estimate
We do not have a price for the Accurl MasterLINE X 6001.20 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl MasterLINE X 6001.20 is the narrow 6 m model of the line: 6,010 mm (236.6 in) of work area length on a 2,010 mm (79.1 in) width. It is also the first size on which the table rating steps up to 550 kg/m².
Why build a 6 m machine only 2 m wide? Because a great deal of plate is sold 2 m wide, and the narrower table saves floor. Accurl's approximate installed width is 3,580 mm (140.9 in), against 4,080 mm (160.6 in) for the MasterLINE X 6001.25, on the same 16,230 mm (639 in) length. Half a metre along a sixteen-metre cell is a useful aisle.
The heavier table rating matters as much as the length. At 550 kg/m², thick plate can be loaded as a full sheet, which is what the high-power sources need: Accurl's table shows 30 mm (1.18 in) of mild steel at 12 kW and 50 mm (1.97 in) at 30 kW, and sources of up to 60 kW are offered for the series. The shuttle table is described as taking 20 seconds to extend or retract.
Speed and accuracy are the line's standard figures, up to 180,000 mm/min with ± 0.03 mm positioning accuracy and ± 0.02 mm repeatability. On long plate nests the traverse speed is felt mainly on the repositioning moves from one end of the sheet to the other. Height with peripherals is 2,680 mm (105.5 in).
Full Specifications
| Parameter | Value |
|---|---|
| Work Area Length | 6,010 mm (236.6 in) |
| Work Area Width | 2,010 mm (79.1 in) |
| Max Workpiece Weight | 550 kg/m² |
| Length Incl Peripherals | 16,230 mm (639 in) (approximate) |
| Width Incl Peripherals | 3,580 mm (140.9 in) (approximate) |
| Height Incl Peripherals | 2,680 mm (105.5 in) (approximate) |
| Automatic Shuttle Table | Included as standard |
| Cutting Process | Fiber laser |
| Max Laser Source Power | 60 kW |
| Traverse Speed | up to 180,000 mm/min |
| Positioning Accuracy | ± 0.03 mm according to VDI/DGQ 3441 |
| Repeatability | ± 0.02 mm according to VDI/DGQ 3441 |
| Xy Axis Drive | linear guides, driven on both sides and helical toothed racks |
| Z Axis Drive | rack |
| Gantry Type | ultra-light cast aluminium gantry |
| CNC Control | MSE SmartControl / TWINCUT S80 |
| Main Control Panel | ergonomic 2 x 21.5" TFT multitouch panel |
| Operating System | Windows 11 LTSC / Windows 10 LTSC |
| Max Sheet Thickness Mild Steel | 18 mm (0.71 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 50 mm (1.97 in) at 30 kW |
| Max Sheet Thickness Stainless Steel | 10 mm (0.39 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Aluminium | 12 mm (0.47 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Brass | 6 mm (0.24 in) at 3 kW; 20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 30 kW |
| Max Sheet Thickness Copper | 5 mm (0.20 in) at 3 kW; 15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 30 kW |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,010 mm (236.6 in) work length on a 2,010 mm (79.1 in) width
- Table rated 550 kg/m², up from 400 kg/m² on the MasterLINE X 4001.20
- Installed width of about 3,580 mm (140.9 in), narrower than the MasterLINE X 6001.25
- Up to 180,000 mm/min traverse speed
- Thickness table reaches 50 mm (1.97 in) mild steel at 30 kW
Limitations
- Sheet wider than 2,010 mm (79.1 in) needs the MasterLINE X 6001.25
- Cell length of about 16,230 mm (639 in)
- Thickness figures above 30 kW are on request only
- The bevel head is listed as coming soon
Best For
Frequently Asked Questions
01
6,010 mm (236.6 in) in length and 2,010 mm (79.1 in) in width, corresponding to the 6,000 x 2,000 mm table in Accurl's list. The maximum permissible workpiece weight is 550 kg/m².
02
Only in width. The MasterLINE X 6001.25 has a 2,510 mm (98.8 in) wide work area and an installed width of about 4,080 mm (160.6 in); this model is 2,010 mm (79.1 in) and about 3,580 mm (140.9 in). Length, table rating and speed are the same.
03
The rating is 550 kg/m². Accurl's feature text says the MasterLINE X table structure can be loaded, depending on the design, with up to 550 kg per m², and this is one of the three sizes that carry that rating.
04
Approximately 16,230 mm (639 in) long, 3,580 mm (140.9 in) wide and 2,680 mm (105.5 in) high. These are Accurl's approximate figures including the laser source, filter system, cooler and safety equipment.
