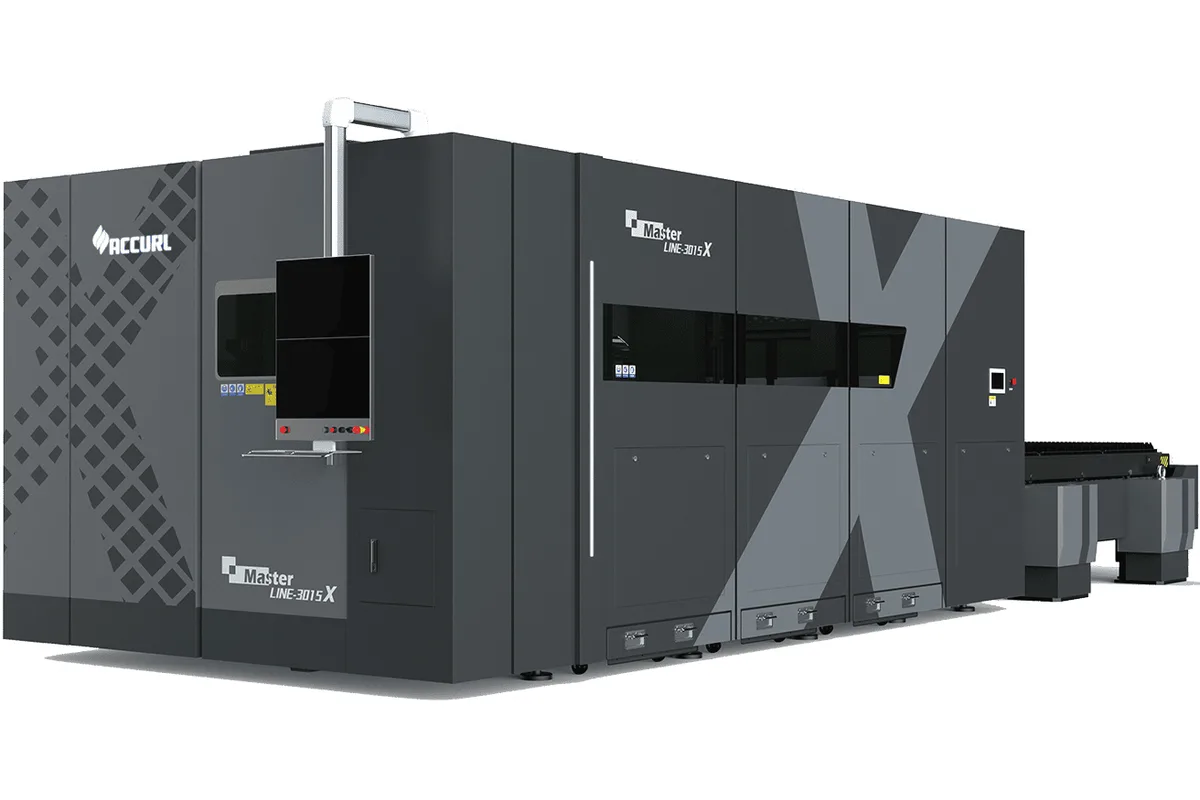

Accurl MasterLINE X 8001.25
Image: accurl.com, Accurl
Key Specifications
Accuracy
Repeatability
work area length
max workpiece weight
length incl peripherals
width incl peripherals
How much does the Accurl MasterLINE X 8001.25 cost?
Price estimate
We do not have a price for the Accurl MasterLINE X 8001.25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl MasterLINE X 8001.25 is the longest machine in the MasterLINE X line, with 8,010 mm (315.4 in) of work area length. Accurl's list of table sizes gives it as 8,000 x 2,500 mm. The width cell of this model's column in the specification table is misprinted on Accurl's page, so the exact work area width should be confirmed with the maker.
Eight metres is the length at which an enclosed shuttle-table laser begins to overlap with open-bed large-format machines. The MasterLINE X keeps the enclosed concept and its speed: traverse speed is up to 180,000 mm/min, far above the up to 49,500 mm/min that Accurl lists for the SMART Giant X 9001.30L. The price of that speed is a fixed length. The SMART Giant X 9001.30L can be extended in segments and is 3,100 mm (122 in) wide.
Table rating is 550 kg/m², the top figure of the line, and accuracy is unchanged from the short tables at ± 0.03 mm positioning and ± 0.02 mm repeatability according to VDI/DGQ 3441. Laser sources of up to 60 kW are available.
The building has to suit it. Accurl gives approximate dimensions including peripherals of 20,550 mm (809.1 in) in length, 3,950 mm (155.5 in) in width and 2,680 mm (105.5 in) in height. Sheets of this length also need a crane or loader that can handle them flat, which belongs in the same budget as the machine.
Full Specifications
| Parameter | Value |
|---|---|
| Work Area Length | 8,010 mm (315.4 in) |
| Max Workpiece Weight | 550 kg/m² |
| Length Incl Peripherals | 20,550 mm (809.1 in) (approximate) |
| Width Incl Peripherals | 3,950 mm (155.5 in) (approximate) |
| Height Incl Peripherals | 2,680 mm (105.5 in) (approximate) |
| Automatic Shuttle Table | Included as standard |
| Cutting Process | Fiber laser |
| Max Laser Source Power | 60 kW |
| Traverse Speed | up to 180,000 mm/min |
| Positioning Accuracy | ± 0.03 mm according to VDI/DGQ 3441 |
| Repeatability | ± 0.02 mm according to VDI/DGQ 3441 |
| Xy Axis Drive | linear guides, driven on both sides and helical toothed racks |
| Z Axis Drive | rack |
| Gantry Type | ultra-light cast aluminium gantry |
| CNC Control | MSE SmartControl / TWINCUT S80 |
| Main Control Panel | ergonomic 2 x 21.5" TFT multitouch panel |
| Operating System | Windows 11 LTSC / Windows 10 LTSC |
| Max Sheet Thickness Mild Steel | 18 mm (0.71 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 50 mm (1.97 in) at 30 kW |
| Max Sheet Thickness Stainless Steel | 10 mm (0.39 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Aluminium | 12 mm (0.47 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW |
| Max Sheet Thickness Brass | 6 mm (0.24 in) at 3 kW; 20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 30 kW |
| Max Sheet Thickness Copper | 5 mm (0.20 in) at 3 kW; 15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 30 kW |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Longest MasterLINE X: 8,010 mm (315.4 in) of work area length
- Up to 180,000 mm/min, against up to 49,500 mm/min on the SMART Giant X 9001.30L
- Table rating of 550 kg/m², the top figure of the line
- ± 0.02 mm repeatability on an 8 m table
- Enclosed machine with automatic shuttle table as standard
Limitations
- Cell length of about 20,550 mm (809.1 in)
- The work area width for this model is misprinted in Accurl's table and must be confirmed
- Fixed length; the SMART Giant X 9001.30L can be extended in segments
- Thickness above 30 kW is on request
Best For
Frequently Asked Questions
01
The work area length is 8,010 mm (315.4 in). Accurl's feature text names the table size as 8,000 x 2,500 mm; the width figure in the model column of the specification table is misprinted, so ask Accurl to confirm it.
02
Approximately 20,550 mm (809.1 in) long, 3,950 mm (155.5 in) wide and 2,680 mm (105.5 in) high. As for the other sizes, the figure includes space for the laser source, filter system, cooler and safety equipment.
03
It depends on width and speed. The SMART Giant X 9001.30L has a 9,100 mm (358.3 in) by 3,100 mm (122 in) work area and 750 kg/m², at up to 49,500 mm/min. The MasterLINE X 8001.25 is much faster, at up to 180,000 mm/min, with 550 kg/m².
04
Accurl states that sources of up to 60 kW are available for the series. The published thickness table ends at 30 kW with 50 mm (1.97 in) mild steel and 40 mm (1.57 in) stainless; higher outputs are quoted on request as quality-dependent.
