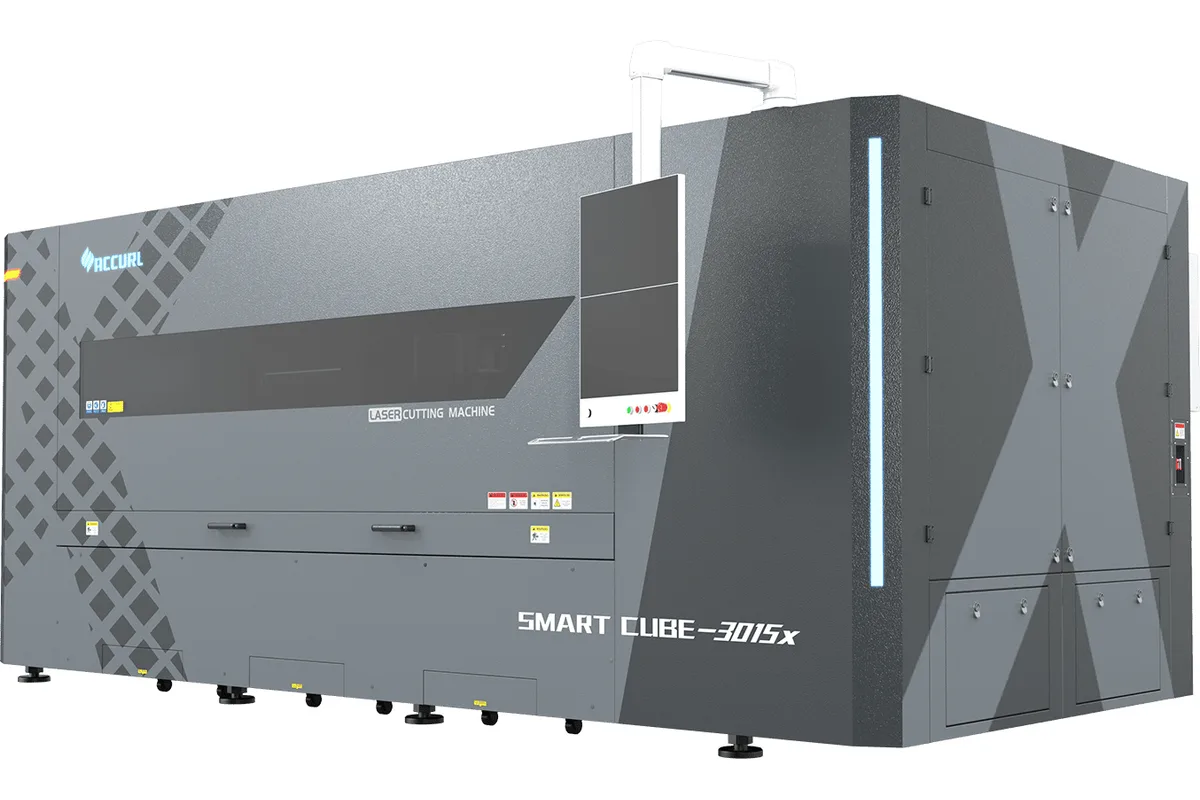

Accurl SMART Cube X 1501.30
Image: accurl.com, Accurl
Key Specifications
Accuracy
Repeatability
work area length
work area width
max workpiece weight
automatic shuttle table
How much does the Accurl SMART Cube X 1501.30 cost?
Price estimate
We do not have a price for the Accurl SMART Cube X 1501.30 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl SMART Cube X 1501.30 is the largest of the compact X-Series lasers and the only one of the three whose table takes the common large sheet: its work area is listed at 1,530 mm (60.2 in) by 3,050 mm (120.1 in). The shuttle table is rated for 750 kg (1,653 lb).
For many buyers this is the model that makes the SMART Cube X a production machine instead of a prototype cell. A full sheet can be loaded without shearing, the second pallet is prepared while the first is cut, and the load rating is more than double the 350 kg (772 lb) of the SMART Cube X 1001.20.
The SmartLINE X 3001.15 covers almost the same sheet, so the two deserve a direct comparison. The SmartLINE X 3001.15 has an ultra-light cast aluminium gantry, traverse speed up to 140,000 mm/min and ± 0.02 mm repeatability, and its table is rated per area at 300 kg/m². The SMART Cube X 1501.30 has a structural steel gantry, up to 120,000 mm/min and ± 0.05 mm repeatability. Positioning accuracy is ± 0.03 mm on both. Source power is the other divider: 2 to 12 kW for the SMART Cube X.
Within that power range the thickness table runs from 18 mm (0.71 in) mild steel at 3 kW to 30 mm (1.18 in) at 12 kW; brass reaches 20 mm (0.79 in) and copper 15 mm (0.59 in) at the top. Controls are MSE SmartControl or TWINCUT S80, with two 21.5" multitouch panels at the operator station.
Full Specifications
| Parameter | Value |
|---|---|
| Work Area Length | 1,530 mm (60.2 in) |
| Work Area Width | 3,050 mm (120.1 in) |
| Max Workpiece Weight | 750 kg (1,653 lb) |
| Automatic Shuttle Table | Included as standard |
| Cutting Process | Fiber laser |
| Max Laser Source Power | 12 kW |
| Traverse Speed | up to 120,000 mm/min |
| Positioning Accuracy | ± 0.03 mm according to VDI/DGQ 3441 |
| Repeatability | ± 0.05 mm according to VDI/DGQ 3441 |
| Xy Axis Drive | linear guides, driven on both sides and helical toothed racks |
| Z Axis Drive | rack |
| Gantry Type | structural steel gantry |
| CNC Control | MSE SmartControl / TWINCUT S80 |
| Main Control Panel | ergonomic 2 x 21.5" TFT multitouch panel |
| Operating System | Windows 11 LTSC / Windows 10 LTSC |
| Max Sheet Thickness Mild Steel | 18 mm (0.71 in) at 3 kW; 25 mm (0.98 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Stainless Steel | 10 mm (0.39 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Aluminium | 12 mm (0.47 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Brass | 6 mm (0.24 in) at 3 kW; 15 mm (0.59 in) at 6 kW; 20 mm (0.79 in) at 12 kW |
| Max Sheet Thickness Copper | 5 mm (0.20 in) at 3 kW; 10 mm (0.39 in) at 6 kW; 15 mm (0.59 in) at 12 kW |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Takes large-format sheet: work area 1,530 mm (60.2 in) by 3,050 mm (120.1 in)
- 750 kg (1,653 lb) maximum workpiece weight, the highest of the SMART Cube X sizes
- Shuttle table included as standard
- ± 0.03 mm positioning accuracy according to VDI/DGQ 3441
- Cuts brass to 20 mm (0.79 in) and copper to 15 mm (0.59 in) at 12 kW
Limitations
- Structural steel gantry and up to 120,000 mm/min, against up to 140,000 mm/min on the SmartLINE X 3001.15
- Repeatability is ± 0.05 mm according to VDI/DGQ 3441
- Source power for the series stops at 12 kW
- Overall dimensions are not published for the SMART Cube X
Best For
Frequently Asked Questions
01
Its listed work area is 1,530 mm (60.2 in) by 3,050 mm (120.1 in), and the table is rated for 750 kg (1,653 lb). Check the weight of the sheet as well as its size, since thick plate in a full sheet approaches that limit.
02
Sheet size is similar. The SmartLINE X 3001.15 is listed at up to 140,000 mm/min with ± 0.02 mm repeatability and an ultra-light cast aluminium gantry; the SMART Cube X 1501.30 at up to 120,000 mm/min, ± 0.05 mm and a structural steel gantry.
03
At 3 kW: 18 mm (0.71 in) mild steel, 10 mm (0.39 in) stainless and 12 mm (0.47 in) aluminium. At 12 kW: 30 mm (1.18 in) in all three. Brass and copper are listed at 20 mm (0.79 in) and 15 mm (0.59 in) at 12 kW.
04
The MSE SmartControl, which Accurl presents as its Industry 4.0 control, or the TWINCUT S80. The operating systems listed are Windows 11 LTSC and Windows 10 LTSC, and the panel is an ergonomic 2 x 21.5" TFT multitouch unit.
