Accurl MasterLINE X 6001.25

Q: How much does the Accurl MasterLINE X 6001.25 cost?

The price estimate for the Accurl MasterLINE X 6001.25 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accurl-masterline-x-6001-25#price; the request is passed to Accurl or an authorised dealer.

Specs verified 2026-10-05 · accurl.com Updated 2026-10-05

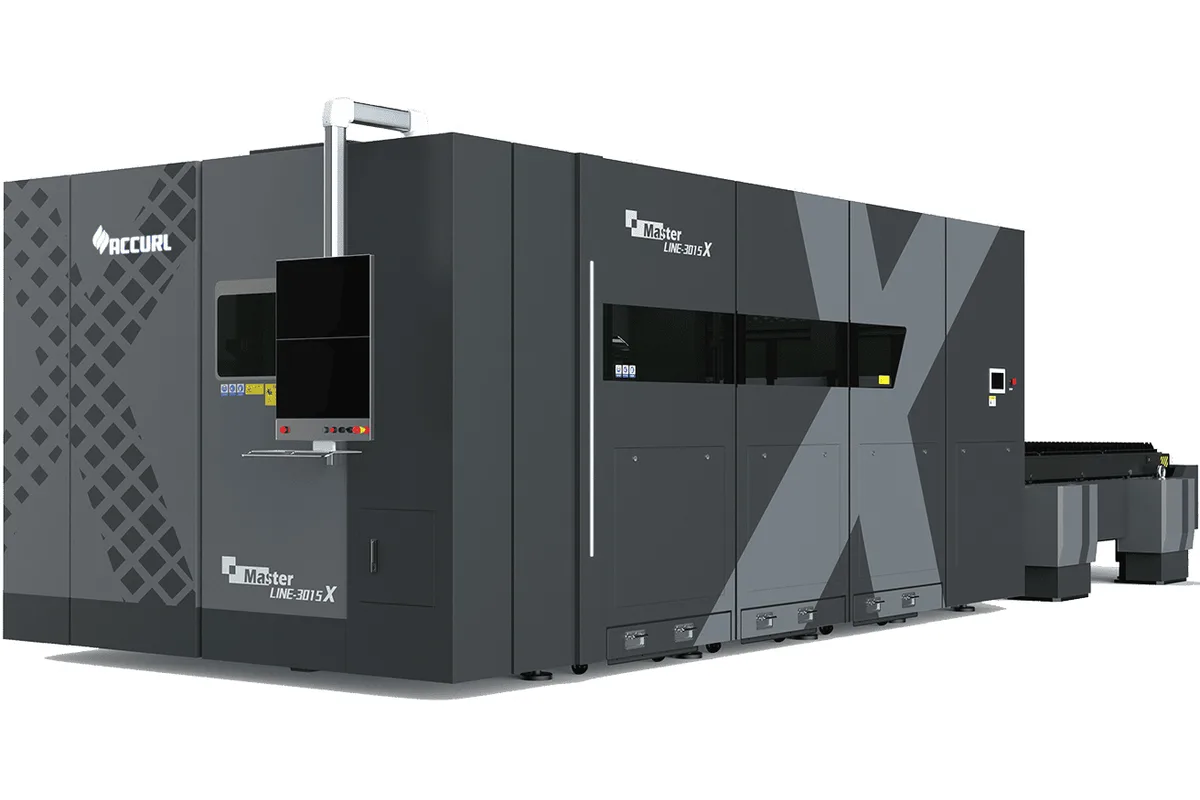

Accurl MasterLINE X series fiber laser cutting machine

Image: accurl.com, Accurl

Key Specifications

Accuracy

± 0.03 mm according to VDI/DGQ 3441

Repeatability

± 0.02 mm according to VDI/DGQ 3441

work area length

6,010 mm (236.6 in)

work area width

2,510 mm (98.8 in)

max workpiece weight

550 kg/m²

length incl peripherals

16,230 mm (639 in) (approximate)

How much does the Accurl MasterLINE X 6001.25 cost?

Price estimate

Uncertain

We do not have a price for the Accurl MasterLINE X 6001.25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

For 6 m by 2.5 m plate at high speed, Accurl offers the MasterLINE X 6001.25. The work area is 6,010 mm (236.6 in) by 2,510 mm (98.8 in) and the table is rated at 550 kg/m².

Two other machines in the X-Series take the same sheet, and the choice between the three is the real decision. The SmartLINE X 6001.25 is the economical one: up to 140,000 mm/min and 450 kg/m², with one control. The MasterLINE X 6001.20 has this machine's speed and table rating but stops at 2,010 mm (79.1 in) of width. The MasterLINE X 6001.25 is the one with no compromise on any of the three points, and it pays for that in floor space: about 16,230 mm (639 in) by 4,080 mm (160.6 in), at a height of 2,680 mm (105.5 in).

A wide gantry is a harder engineering problem than a narrow one, since the beam must stay stiff across a longer span while still being light enough to accelerate. Accurl's answer is the cast aluminium crossbeam, for which it states accelerations of up to 3G, and drives on both sides of the X and Y axes. The published accuracy is the same as on the smaller tables, ± 0.03 mm positioning and ± 0.02 mm repeatability to VDI/DGQ 3441.

On capacity, the table lists stainless and aluminium at 30 mm (1.18 in) with 12 kW and 40 mm (1.57 in) with 30 kW. Brass is given as 25 mm (0.98 in) and copper as 15 mm (0.59 in) at 30 kW.

Full Specifications

Parameter	Value
Work Area Length	6,010 mm (236.6 in)
Work Area Width	2,510 mm (98.8 in)
Max Workpiece Weight	550 kg/m²
Length Incl Peripherals	16,230 mm (639 in) (approximate)
Width Incl Peripherals	4,080 mm (160.6 in) (approximate)
Height Incl Peripherals	2,680 mm (105.5 in) (approximate)
Automatic Shuttle Table	Included as standard
Cutting Process	Fiber laser
Max Laser Source Power	60 kW
Traverse Speed	up to 180,000 mm/min
Positioning Accuracy	± 0.03 mm according to VDI/DGQ 3441
Repeatability	± 0.02 mm according to VDI/DGQ 3441
Xy Axis Drive	linear guides, driven on both sides and helical toothed racks
Z Axis Drive	rack
Gantry Type	ultra-light cast aluminium gantry
CNC Control	MSE SmartControl / TWINCUT S80
Main Control Panel	ergonomic 2 x 21.5" TFT multitouch panel
Operating System	Windows 11 LTSC / Windows 10 LTSC
Max Sheet Thickness Mild Steel	18 mm (0.71 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 50 mm (1.97 in) at 30 kW
Max Sheet Thickness Stainless Steel	10 mm (0.39 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Aluminium	12 mm (0.47 in) at 3 kW; 30 mm (1.18 in) at 12 kW; 40 mm (1.57 in) at 30 kW
Max Sheet Thickness Brass	6 mm (0.24 in) at 3 kW; 20 mm (0.79 in) at 12 kW; 25 mm (0.98 in) at 30 kW
Max Sheet Thickness Copper	5 mm (0.20 in) at 3 kW; 15 mm (0.59 in) at 12 kW; 15 mm (0.59 in) at 30 kW

Specifications sourced from accurl.com — verified 2026-10-05

Strengths & Limitations

Strengths

Full 6,010 mm (236.6 in) by 2,510 mm (98.8 in) work area
550 kg/m² table rating for thick plate
Up to 180,000 mm/min, against up to 140,000 mm/min on the SmartLINE X 6001.25
Same ± 0.02 mm repeatability as the smaller MasterLINE X tables
Laser sources of up to 60 kW for the series

Limitations

Largest footprint of the 6 m models: about 16,230 mm (639 in) by 4,080 mm (160.6 in)
Capacity above 30 kW is quoted on request, not tabulated
Bevel cutting up to 45° is announced but not yet available
Sheets longer than 6,010 mm (236.6 in) need the MasterLINE X 8001.25

Best For

6,000 x 2,500 mm sheet and plate at high throughput Service centres cutting thin and thick material on one machine High-power sources that need a 550 kg/m² table Wide parts and large nests

Frequently Asked Questions

01 What sheet does the MasterLINE X 6001.25 cut?

Its work area is 6,010 mm (236.6 in) by 2,510 mm (98.8 in), the 6,000 x 2,500 mm table size. The maximum permissible workpiece weight is 550 kg/m² and the automatic shuttle table is included as standard.

02 Why choose the MasterLINE X 6001.25 over the SmartLINE X 6001.25?

For speed, load and control choice. The SmartLINE X 6001.25 is listed at up to 140,000 mm/min and 450 kg/m² with the TWINCUT S80 only. This machine is listed at up to 180,000 mm/min and 550 kg/m², with the MSE SmartControl as an alternative.

03 How much space does the MasterLINE X 6001.25 occupy?

Approximately 16,230 mm (639 in) in length, 4,080 mm (160.6 in) in width and 2,680 mm (105.5 in) in height including peripherals. The length is the same as the MasterLINE X 6001.20; the width is greater.

04 What can the MasterLINE X 6001.25 cut in non-ferrous metals?

Aluminium is listed at 12 mm (0.47 in) with 3 kW, 30 mm (1.18 in) with 12 kW and 40 mm (1.57 in) with 30 kW. Brass goes from 6 mm (0.24 in) to 25 mm (0.98 in) and copper from 5 mm (0.20 in) to 15 mm (0.59 in) over the same powers.
