YCM NXV1680A

Q: How much does the YCM NXV1680A cost?

The price estimate for the YCM NXV1680A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nxv1680a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

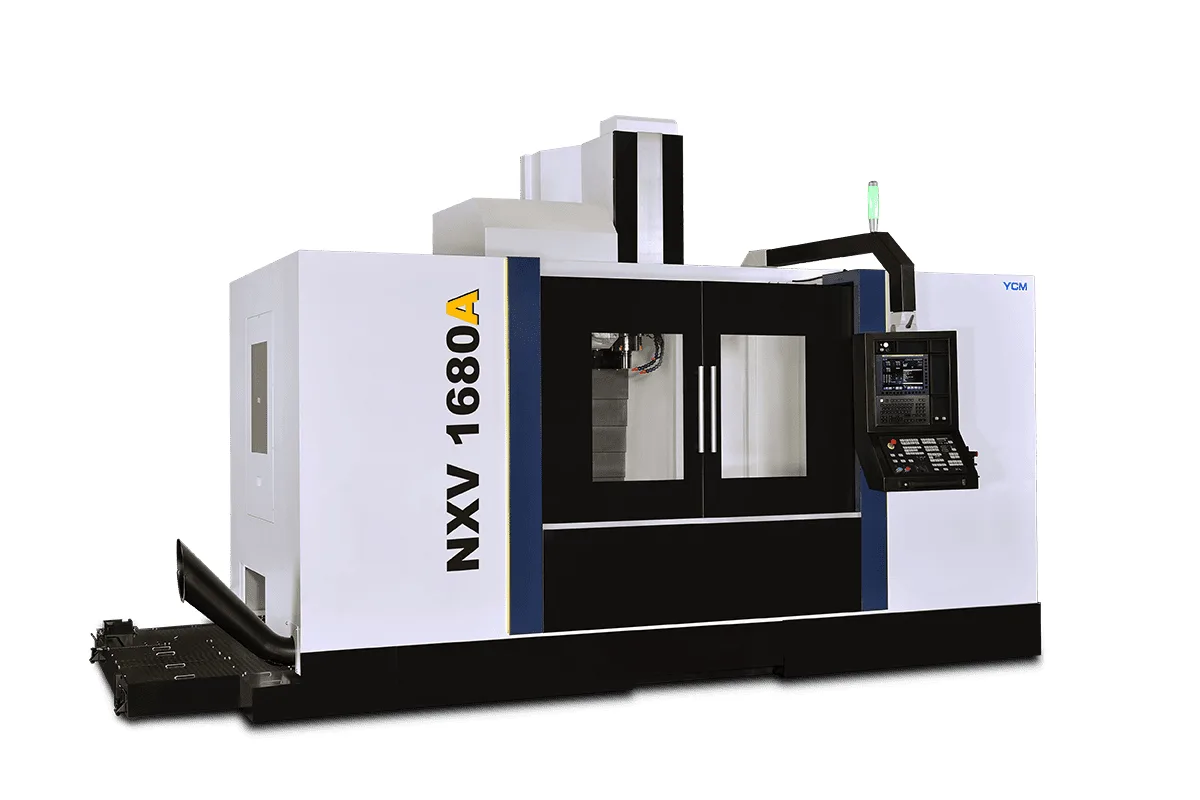

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 12,000 / 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

24 tools; opt. 30 / 48 / 60 tools

Table Size

1,730 x 810 mm (68.1 x 31.8 in)

Spindle Power

18.5 kW (25 HP); opt. 18.5/37 kW (25/50 HP)

x axis travel

1,630 mm (64.2 in)

How much does the YCM NXV1680A cost?

Price estimate

Uncertain

We do not have a price for the YCM NXV1680A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Longest of the 40-taper NXV machines, the YCM NXV1680A offers 1,630 mm (64.2 in) of X travel with 815 mm (32 in) of Y and 700 mm (27.6 in) of Z. The table is 1,730 x 810 mm (68.1 x 31.8 in) with seven T-slots, and the whole machine weighs 11,000 kg (24,251 lb).

Length is what a buyer pays attention to here. A part 1.6 metres long, or a row of fixtures across the table, is machined in one setup. The table rating does not grow with the length, though: it is 1,500 kg (3,307 lb), the figure the NXV1270A already carries on a table 1,350 mm long. Long, relatively light work such as extrusions, rails, plates and frames fits that profile better than dense blocks.

There is a 50-taper machine on the same travel, the NXV1680B, with a 6,000 rpm gearhead spindle and a 2,000 kg (4,409 lb) table. The A model is the high-speed alternative. Its BBT40 IDD spindle turns 12,000 rpm on 18.5 kW (25 HP), with 15,000 rpm and 37 kW (50 HP) among the options, and its rapids are 30 m/min (1,181 ipm) in X and Y against 24 m/min on the B.

Tool change is 1.8 sec tool-to-tool from a 24-tool magazine; 30, 48 and 60-tool magazines are optional. Chip augers, four along Y and one along X, carry chips out of the long bed.

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 12,000 / 15,000 rpm
Spindle Motor Power	18.5 kW (25 HP); opt. 18.5/37 kW (25/50 HP)
Spindle Taper	BBT40
X Axis Travel	1,630 mm (64.2 in)
Y Axis Travel	815 mm (32 in)
Z Axis Travel	700 mm (27.6 in)
Distance Spindle Nose to Table	100~800 mm (3.94~31.5 in)
Table Size	1,730 x 810 mm (68.1 x 31.8 in)
T-Slots	7 x 18 x 100 mm (7 x 0.71 x 3.94 in)
Max Table Load	1,500 kg (3,307 lb)
Rapid Traverse Xyz	30/30/24 m/min (1,181/1,181/945 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787 ipm)
Tool Capacity	24 tools; opt. 30 / 48 / 60 tools
Max Tool Weight	6 kg (13 lb)
Max Tool Size	24T: ø90 x 300 (ø140 x 300) 30T/48T/60T: ø76 x 300 (ø125 x 300) mm
Machine Weight	11,000 kg (24,251 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

X travel of 1,630 mm (64.2 in) with 815 mm (32 in) of Y on a C-frame
12,000 rpm spindle and 30 m/min (1,181 ipm) rapids on a machine of this length
Spindle options include 15,000 rpm and 37 kW (50 HP)
Tool change in 1.8 sec tool-to-tool with an absolute encoder ATC
24 tools as standard with 30, 48 or 60 optional

Limitations

Table load of 1,500 kg (3,307 lb) is spread over a 1,730 x 810 mm (68.1 x 31.8 in) table
BBT40 tooling limits tools to 6 kg (13 lb); the NXV1680B takes 20 kg (44 lb)
Z travel is 700 mm (27.6 in), shorter than the 762 mm (30 in) of the NXV1680B
The 37 kW (50 HP) spindle is an option

Best For

Long aluminium parts, extrusions and plates up to 1,630 mm (64.2 in) Several fixtures in a row for unattended runs with the 48 or 60-tool magazine Shops that want long travel while staying with BBT40 tooling

Frequently Asked Questions

01 What is the difference between the NXV1680A and the NXV1680B?

The spindle and what follows from it. The NXV1680A has a BBT40 spindle at 12,000 rpm, rapids of 30/30/24 m/min and a 1,500 kg (3,307 lb) table. The NXV1680B has a BT50 gearhead spindle at 6,000 rpm, 24 m/min rapids, a 2,000 kg (4,409 lb) table and weighs 16,500 kg (36,376 lb).

02 What are the travels of the NXV1680A?

X is 1,630 mm (64.2 in), Y is 815 mm (32 in) and Z is 700 mm (27.6 in). Spindle nose to table is 100~800 mm (3.94~31.5 in), and the table measures 1,730 x 810 mm (68.1 x 31.8 in).

03 Which spindle options does YCM list?

Standard is 12,000 rpm with 18.5 kW (25 HP) and grease lubrication. The options are 12,000 or 15,000 rpm spindles with oil-air lubrication, rated 18.5 or 37 kW (25 or 50 HP). Spindle cooling is also an option.

04 How heavy is the NXV1680A?

Machine weight is 11,000 kg (24,251 lb). The NXV1380A, the next size down, weighs 10,500 kg (23,149 lb). Plan rigging and floor loading for an eleven-tonne machine with a long bed.
