YCM FP66A

Q: How much does the YCM FP66A cost?

The price estimate for the YCM FP66A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-fp66a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

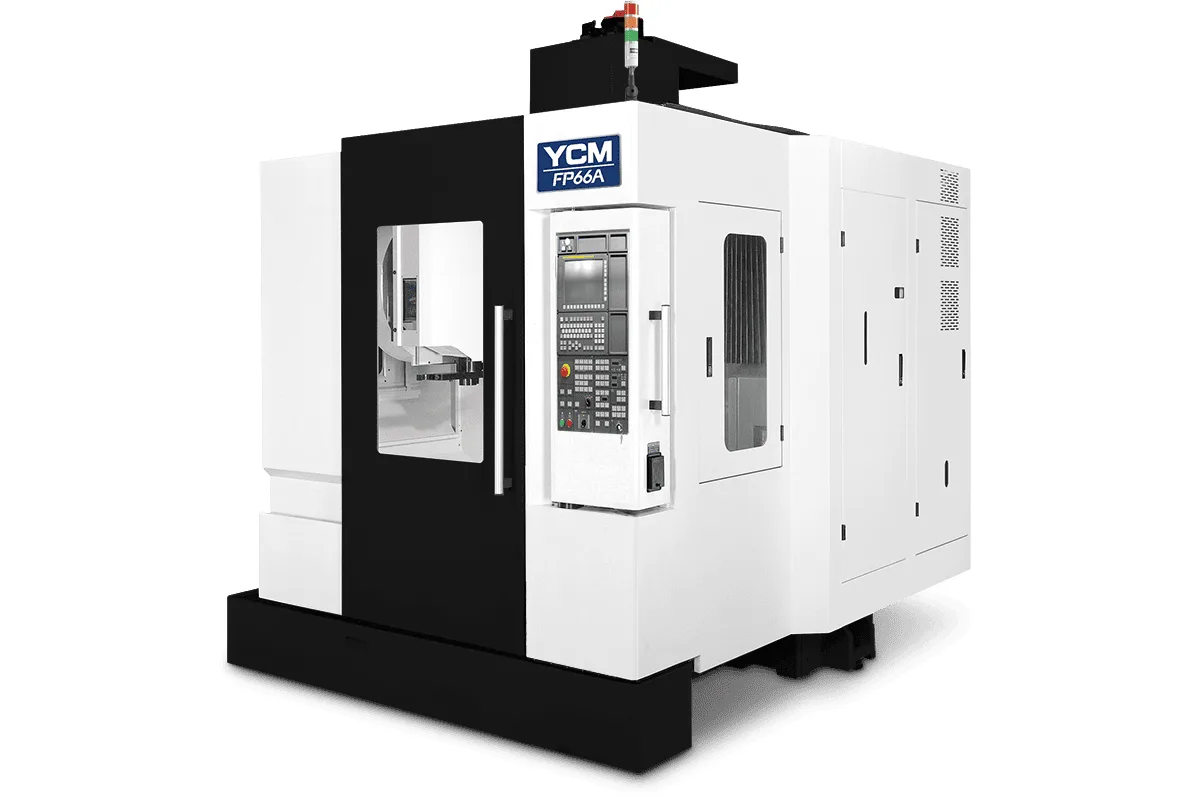

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

16,000 rpm; opt. 20,000 / 30,000 rpm

Spindle Taper

BBT40; opt. BBT40/BBT30

Tool Capacity

24 tools; opt. 30 tools

Table Size

800 x 510 mm (31.5 x 20.08 in)

Spindle Power

37 kW (50 hp); opt. 22/11 kW (30/15 hp)

x axis travel

660 mm (25.98 in)

How much does the YCM FP66A cost?

Price estimate

Uncertain

We do not have a price for the YCM FP66A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM FP66A is a small double-column machining center for die and mold work, with a 16,000 rpm BBT40 spindle rated 37 kW (50 hp). Travels are 660 mm (25.98 in) in X, 510 mm (20.08 in) in Y and 400 mm (15.75 in) in Z, under a bridge with 960 mm (37.8 in) between the columns.

A bridge frame on a machine this small is a deliberate choice. The head hangs between two columns instead of off one, so it has less overhang and heats symmetrically; YCM stresses the symmetry of the base, column and headstock castings. The table only moves in one direction and stays fully under the load. For a mold maker the result is a machine that keeps its geometry over a finishing program that runs all day.

The feed system is built for small, exact moves: encoders of 4 million pulses per revolution on all axes, enlarged roller linear guides and high-load ball screws. Rapids are a modest 20 m/min (787 ipm), which is beside the point in this kind of work.

YCM's isolated direct drive spindle has oil cooling, micro oil-air lubrication, a floating cylinder that keeps tool-release force off the bearings and a constant preload design. The options column lists 20,000 and 30,000 rpm spindles with 22 or 11 kW (30 or 15 hp), the fastest on a BBT30 taper. The table is 800 x 510 mm (31.5 x 20.08 in) for 500 kg (1,102 lb), the magazine holds 24 tools or 30, and the machine weighs 8,000 kg (17,637 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	16,000 rpm; opt. 20,000 / 30,000 rpm
Spindle Motor Power	37 kW (50 hp); opt. 22/11 kW (30/15 hp)
Spindle Taper	BBT40; opt. BBT40/BBT30
X Axis Travel	660 mm (25.98 in)
Y Axis Travel	510 mm (20.08 in)
Z Axis Travel	400 mm (15.75 in)
Distance Spindle Nose to Table	150~550 mm (5.91~21.65 in)
Distance Between Columns	960 mm (37.8 in)
Table Size	800 x 510 mm (31.5 x 20.08 in)
T-Slots	5 x 18 x 100 mm (5 x 0.71 x 3.94 in)
Max Table Load	500 kg (1,102 lb)
Rapid Traverse Xyz	20/20/20 m/min (787/787/787 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787 ipm)
Tool Capacity	24 tools; opt. 30 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	24T: ø75 x 250 (ø150 x 250) (30T: ø75 x 250 (ø150 x 250)) mm
Machine Weight	8,000 kg (17,637 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Double-column frame with 960 mm (37.8 in) between columns on a 660 mm (25.98 in) machine
16,000 rpm spindle with 37 kW (50 hp) as standard
Optional 20,000 and 30,000 rpm spindles
4 million-pulse/rev encoders on all axes
Oil-cooled spindle with micro oil-air lubrication

Limitations

Z travel is 400 mm (15.75 in), limiting deep cavities and tall blocks
Table load is 500 kg (1,102 lb)
Rapids are 20 m/min (787 ipm)
The faster optional spindles drop to 22 or 11 kW (30 or 15 hp)

Best For

Finishing of small molds, inserts and electrodes Graphite and hardened steel machined with small tools at 16,000 rpm or more Long unattended finishing programs where thermal symmetry matters

Frequently Asked Questions

01 Why does a machine as small as the FP66A have two columns?

For stiffness and thermal symmetry. YCM says the symmetry design in the castings of base, column and headstock diminishes thermal deformation and ensures accuracy. The distance between the columns is 960 mm (37.8 in).

02 Which spindles are available?

Standard is a BBT40 spindle at 16,000 rpm with 37 kW (50 hp). The options are 20,000 and 30,000 rpm with 22 and 11 kW (30 and 15 hp), with BBT40 or BBT30 tapers. All have automatic oil cooling and micro oil-air lubrication.

03 What is the work envelope?

Travels are 660 mm (25.98 in) in X, 510 mm (20.08 in) in Y and 400 mm (15.75 in) in Z. The table is 800 x 510 mm (31.5 x 20.08 in), rated for 500 kg (1,102 lb), and spindle nose to table is 150~550 mm (5.91~21.65 in).

04 How does the FP66A differ from the NFP66A?

The NFP66A shares the travels, table and 8,000 kg (17,637 lb) weight but has a built-in motorized spindle with an HSK-A63 taper at 24,000 rpm, and a 40,000 rpm option. The FP66A uses a BBT40 isolated direct drive spindle at 16,000 rpm.
