YCM NXV1380A

Q: How much does the YCM NXV1380A cost?

The price estimate for the YCM NXV1380A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nxv1380a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

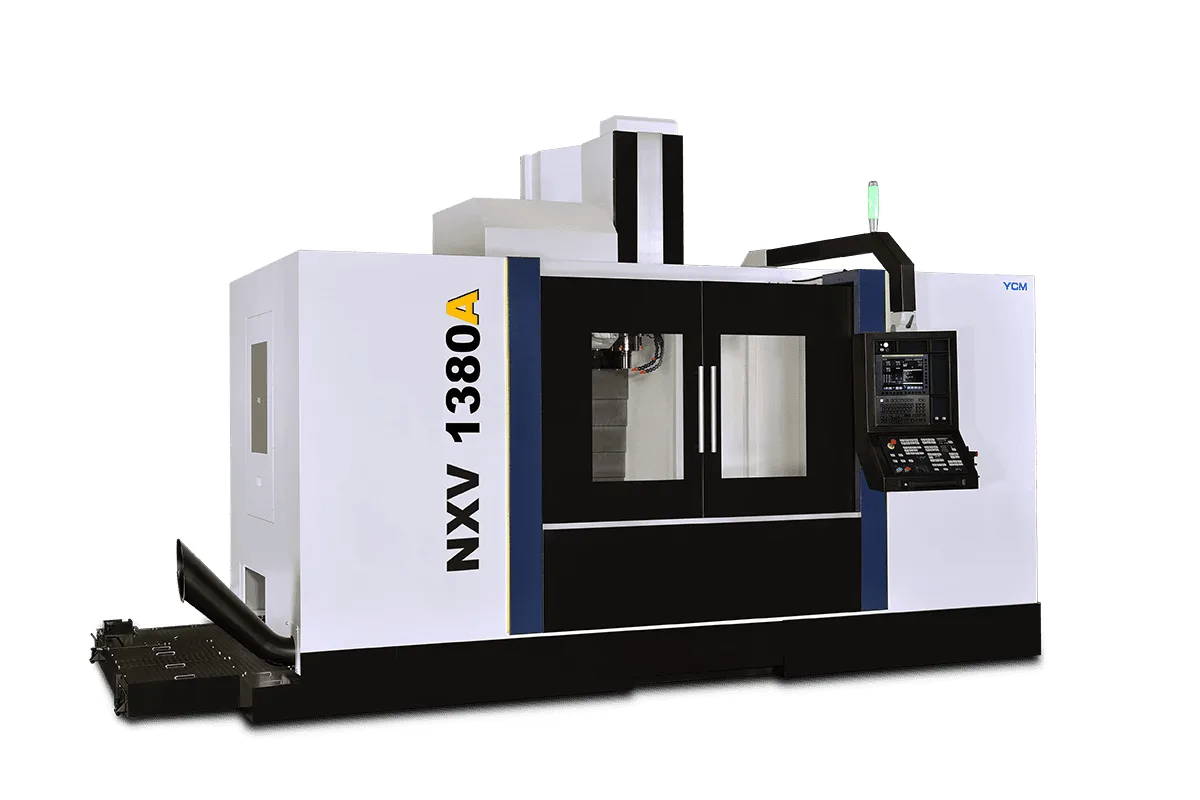

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 12,000 / 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

24 tools; opt. 30 / 48 / 60 tools

Table Size

1,430 x 760 mm (56.3 x 29.9 in)

Spindle Power

18.5 kW (25 HP); opt. 18.5/37 kW (25/50 HP)

x axis travel

1,330 mm (52.4 in)

How much does the YCM NXV1380A cost?

Price estimate

Uncertain

We do not have a price for the YCM NXV1380A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM NXV1380A is a wide-body BBT40 vertical machining center: 1,330 mm (52.4 in) in X, 762 mm (30 in) in Y and 700 mm (27.6 in) in Z, under a table of 1,430 x 760 mm (56.3 x 29.9 in). Its distinguishing option is in the spindle list, where a 37 kW (50 HP) unit appears beside the standard 18.5 kW (25 HP).

That option changes what the machine is for. With 18.5 kW it is a large-envelope machine for lighter cuts. With 37 kW behind a 12,000 rpm spindle it can remove material at a rate that makes use of the 1,500 kg (3,307 lb) table rating. The optional spindles are listed at 12,000 and 15,000 rpm, and oil-air lubrication comes with them; the standard 12,000 rpm spindle is grease lubricated.

YCM describes the axis layout as six slide blocks on X and four linear guideways on Y, with no counterweight on the Z axis. Leaving out the counterweight removes a hanging mass from the head, which helps Z respond cleanly in contouring. Rapids are 30 m/min (1,181 ipm) in X and Y and 24 m/min (945 ipm) in Z.

A 762 mm Y stroke is unusual on a C-frame machine and lets deep parts be reached without repositioning. Spindle nose to table is 100~800 mm (3.94~31.5 in). The machine weighs 10,500 kg (23,149 lb) and carries 24 tools as standard, with 30, 48 or 60 optional.

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 12,000 / 15,000 rpm
Spindle Motor Power	18.5 kW (25 HP); opt. 18.5/37 kW (25/50 HP)
Spindle Taper	BBT40
X Axis Travel	1,330 mm (52.4 in)
Y Axis Travel	762 mm (30 in)
Z Axis Travel	700 mm (27.6 in)
Distance Spindle Nose to Table	100~800 mm (3.94~31.5 in)
Table Size	1,430 x 760 mm (56.3 x 29.9 in)
T-Slots	7 x 18 x 100 mm (7 x 0.71 x 3.94 in)
Max Table Load	1,500 kg (3,307 lb)
Rapid Traverse Xyz	30/30/24 m/min (1,181/1,181/945 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787 ipm)
Tool Capacity	24 tools; opt. 30 / 48 / 60 tools
Max Tool Weight	6 kg (13 lb)
Max Tool Size	24T: ø90 x 300 (ø140 x 300) 30T/48T/60T: ø76 x 300 (ø125 x 300) mm
Machine Weight	10,500 kg (23,149 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Optional 37 kW (50 HP) spindle beside the standard 18.5 kW (25 HP)
Y travel of 762 mm (30 in) with 4 linear guideways under the saddle
1,500 kg (3,307 lb) table load on a 1,430 x 760 mm (56.3 x 29.9 in) table
No counterweight on the Z axis
Up to 800 mm (31.5 in) from spindle nose to table for tall parts

Limitations

The 37 kW (50 HP) spindle is an option; the standard machine has 18.5 kW (25 HP)
Taper is BBT40 only, so the tool weight limit is 6 kg (13 lb)
Rapids of 30 m/min (1,181 ipm) are slower than the 36 m/min of the NXV1270A
Machine weight of 10,500 kg (23,149 lb) calls for foundation and rigging checks

Best For

Large aluminium and steel plates that need more than 700 mm of Y High-power 40-taper roughing with the 37 kW (50 HP) spindle option Tall fixtures and stacked setups within 700 mm (27.6 in) of Z travel

Frequently Asked Questions

01 What spindle power can the NXV1380A have?

The standard spindle is 18.5 kW (25 HP) at 12,000 rpm. The options column lists 18.5/37 kW (25/50 HP) with 12,000 or 15,000 rpm. All are BBT40. YCM's feature list gives grease lubrication for the standard spindle and oil-air lubrication for the optional ones.

02 How large is the working area?

X travel is 1,330 mm (52.4 in), Y is 762 mm (30 in) and Z is 700 mm (27.6 in). The table is 1,430 x 760 mm (56.3 x 29.9 in), carries 1,500 kg (3,307 lb), and has T-slots listed as 7 x 18 x 100 mm.

03 How does the NXV1380A compare with the NXV1680A?

They share spindle options, rapids, Z travel and table load. The NXV1680A is the longer machine, with 1,630 mm (64.2 in) of X, 815 mm (32 in) of Y and a weight of 11,000 kg (24,251 lb), against 1,330 mm (52.4 in), 762 mm (30 in) and 10,500 kg (23,149 lb) here.

04 What does YCM say about the guideways?

High rigidity, high loading linear guideways are used on the three axes, with 6 slide blocks on the X axis and 4 linear guideways on the Y axis. The Z axis has no counter weight, and all axis motors are direct drive with absolute encoders.
