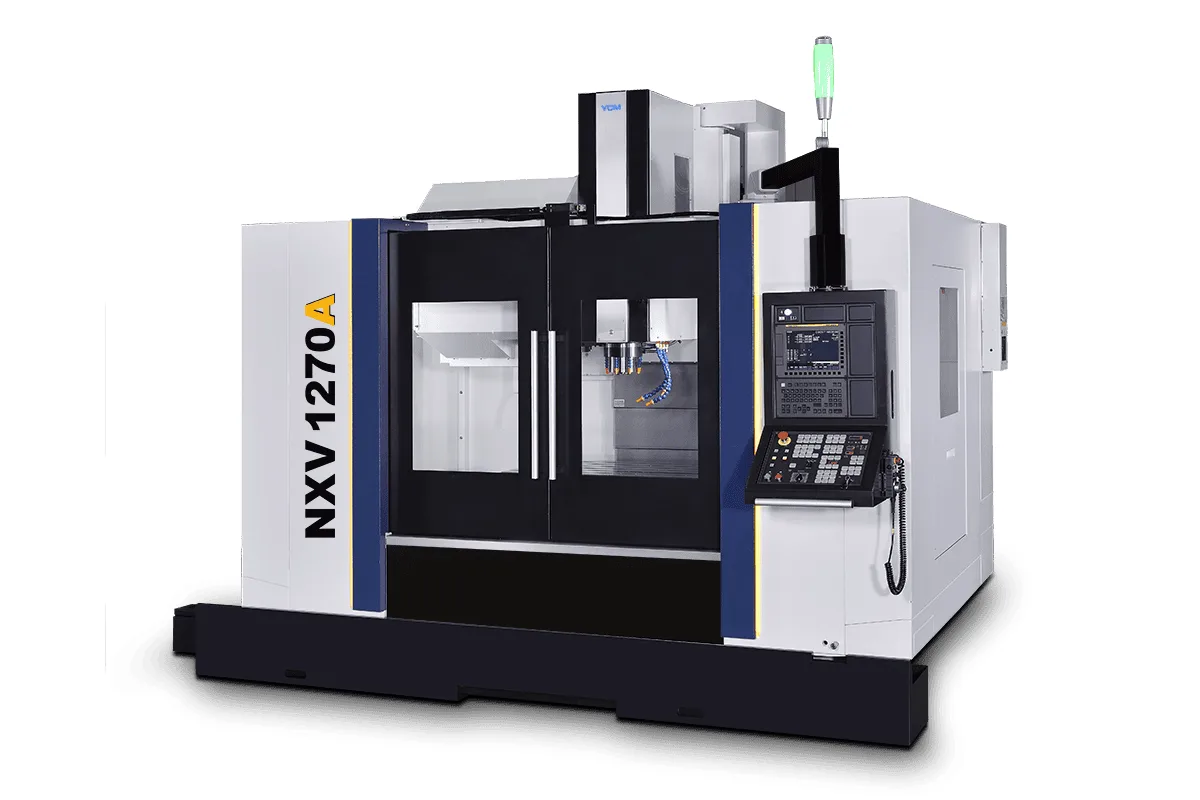

YCM NXV1270A
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the YCM NXV1270A cost?
Price estimate
We do not have a price for the YCM NXV1270A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,270 mm (50 in) of X travel and a table that takes 1,500 kg (3,307 lb), the YCM NXV1270A is where the NXV range moves from light production machines to a heavier frame. Y travel is 660 mm (26 in), Z is 620 mm (24.41 in), and the table measures 1,350 x 660 mm (53.15 x 26 in) with six 18 mm T-slots.
The load rating comes from the guideway layout. YCM puts roller linear guideways on all three axes, six blocks on the X axis and four guideways under the saddle on Y, on a wide base with 10 leveling pads. The saddle is a dual-wall casting. Three times the table load of the NXV1020A, which is rated at 500 kg (1,102 lb), is the practical result.
It still moves quickly for its size: 36 m/min (1,417 ipm) in X and Y, 30 m/min (1,181 ipm) in Z. The BBT40 IDD spindle runs at 12,000 rpm, or 15,000 rpm as an option, with 18.5 kW (25 HP). That is a 40-taper spindle on a table built for heavy parts, so the machine suits large workpieces cut with moderate tools better than deep roughing with big cutters.
Chips are handled by five augers, four along Y and one along X; a four-auger layout is the listed alternative. The magazine holds 24 tools, with 30, 48 or 60 optional, and changes in 1.8 sec tool-to-tool. Machine weight is 8,600 kg (18,960 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Spindle Speed | 12,000 rpm; opt. 15,000 rpm |
| Spindle Motor Power | 18.5 kW (25 HP); opt. 18.5 kW (25 HP) |
| Spindle Taper | BBT40 |
| X Axis Travel | 1,270 mm (50 in) |
| Y Axis Travel | 660 mm (26 in) |
| Z Axis Travel | 620 mm (24.41 in) |
| Table Size | 1,350 x 660 mm (53.15 x 26 in) |
| T-Slots | 6 x 18 x 100 mm (6 x 0.71 x 3.94 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| Rapid Traverse Xyz | 36/36/30 m/min (1,417/1,417/1,181 ipm) |
| Cutting Feed Rate | 1~20,000 mm/min (0.04~787 ipm) |
| Tool Capacity | 24 tools; opt. 30 / 48 / 60 tools |
| Max Tool Weight | 6 kg (13 lb) |
| Max Tool Size | 24T: ø90 x 300 (ø140 x 300) 30T/48T/60T: ø76 x 300 (ø125 x 300) mm |
| Machine Weight | 8,600 kg (18,960 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Table load of 1,500 kg (3,307 lb) on a 1,350 x 660 mm (53.15 x 26 in) table
- Roller linear guideways on 3 axes, with 6 blocks on X and 4 guideways on Y
- Y travel of 660 mm (26 in) matches the full table depth
- Magazine options up to 60 tools
- Penta chip augers, 4 along Y and 1 along X, clear chips from a large work area
Limitations
- Spindle power stays at 18.5 kW (25 HP) with a BBT40 taper; no larger spindle is listed for this model
- YCM's table gives no clean figure for spindle nose to table distance on this model
- At 8,600 kg (18,960 lb) it needs a proper floor and rigging plan
- Tools are limited to 6 kg (13 lb) each
Best For
Frequently Asked Questions
01
The table is rated for 1,500 kg (3,307 lb). YCM states that the 6-block design on the X axis supports workpieces up to that weight. The table is 1,350 x 660 mm (53.15 x 26 in) with T-slots listed as 6 x 18 x 100 mm.
02
Travels are 1,270 mm (50 in) in X, 660 mm (26 in) in Y and 620 mm (24.41 in) in Z. Rapid traverse is 36 m/min (1,417 ipm) in X and Y and 30 m/min (1,181 ipm) in Z, with cutting feed up to 20,000 mm/min (787 ipm).
03
The table lists one power rating, 18.5 kW (25 HP), for the standard 12,000 rpm spindle and the optional 15,000 rpm spindle. The NXV1380A, the next size up, is the first in the range to list a 37 kW (50 HP) option.
04
YCM fits penta chip augers, 4 running along Y and 1 along X, and lists quad chip augers with a chip conveyor as the alternative. A coolant shower is standard on the NXV series and the side window opens for chip removal.
