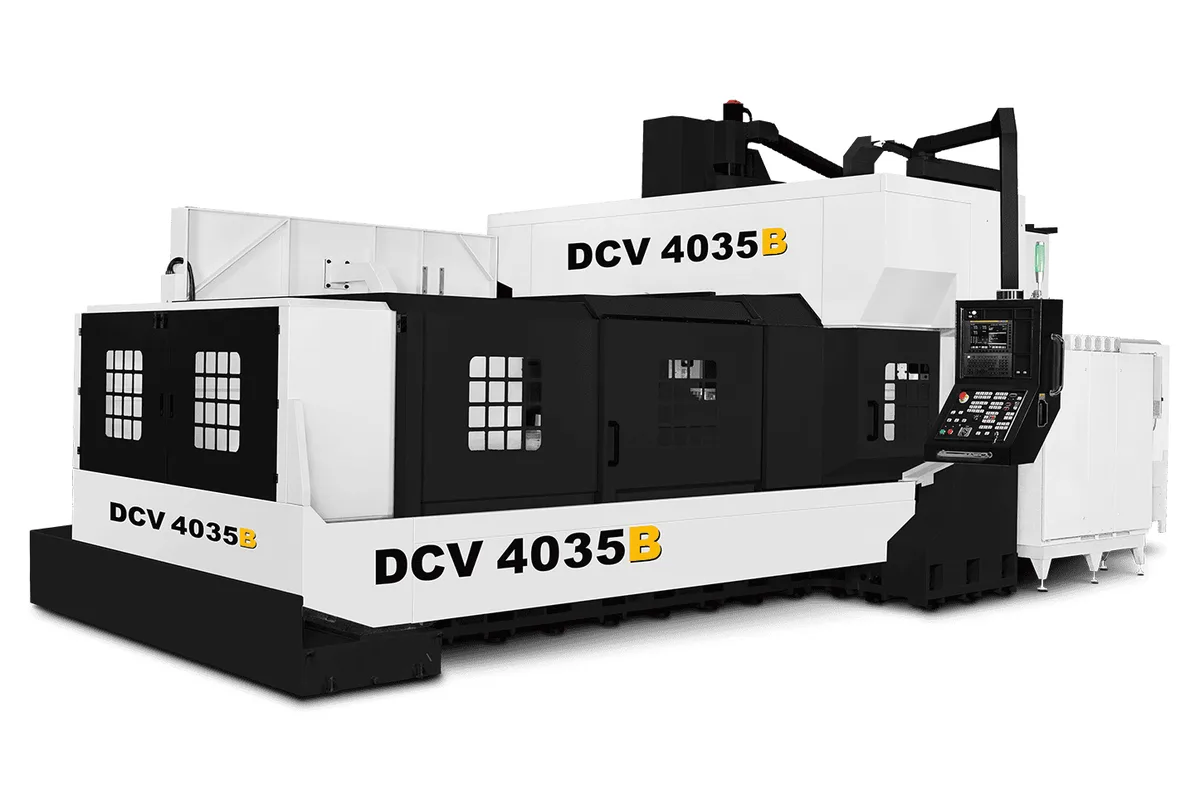

YCM DCV4035B
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the YCM DCV4035B cost?
Price estimate
We do not have a price for the YCM DCV4035B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Three and a half metres of Y travel on a four-metre table: the YCM DCV4035B has the widest bridge of its length in the DCV range. The columns stand 3,600 mm apart, X travel is 4,065 mm, and the 4,100 x 2,400 mm table is rated for 20,000 kg.
The gap between the columns is well over a metre wider than the table. A part can therefore overhang the table on both sides and still pass under the bridge, which is the reason to choose this model over the DCV4025B. Large rings, round casings, wide frames and fabrications that are awkward in one direction are the candidates. The spindle reaches the full 3,500 mm, including the overhanging portions.
This model's spindle rows differ from its neighbours. Where the other heavy DCV machines list a 4,500 rpm geared spindle with faster options, the table here gives a single spindle, 10,000 rpm with 22 kW on a BBT50 taper. That is a lighter-duty, higher-speed specification than the rest of the family, so anyone planning heavy roughing should ask YCM whether the geared spindle can be supplied.
Other figures follow the frame: rapids of 12 m/min in X and 15 m/min in Y and Z, cutting feed up to 10,000 mm/min, 762 mm of Z travel with 1,016 mm optional, 40 tools as standard and 60 or 120 as options, and a 20 kg tool limit. The table has 11 T-slots of 28 mm. Machine weight is 55,000 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Max Spindle Speed | 10,000 rpm |
| Spindle Motor Power | 22 kW (30 hp) |
| Spindle Taper | BBT50 |
| X Axis Travel | 4,065 mm (160.04 in) |
| Y Axis Travel | 3,500 mm (137.80 in) |
| Z Axis Travel | 762 mm; opt. 1,016 mm |
| Distance Spindle Nose to Table | 200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm |
| Distance Between Columns | 3,600 mm (141.73 in) |
| Table Size | 4,100 x 2,400 mm |
| T-Slots | 11 x 28 x 200 mm |
| Max Table Load | 20,000 kg (44,092 lb) |
| Rapid Traverse Xyz | 12/15/15 m/min (472/591/591 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Tool Capacity | 40 tools; opt. 60 / 120 tools |
| Max Tool Weight | 20 kg (44.1 lb) |
| Max Tool Size | ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in) |
| Machine Weight | 55,000 kg (121,253 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,500 mm of Y travel with 3,600 mm between columns
- Parts wider than the 2,400 mm table can pass under the bridge
- Table load of 20,000 kg under a wide bridge
- 10,000 rpm BBT50 spindle listed as standard
- Magazine options of 60 and 120 tools
Limitations
- The table lists 22 kW and no geared spindle for this model
- Machine weight of 55,000 kg
- X rapid is 12 m/min, slower than Y and Z
- Standard Z travel is 762 mm under a very wide bridge
Best For
Frequently Asked Questions
01
Y travel is 3,500 mm and the distance between columns is 3,600 mm. The table itself is 4,100 x 2,400 mm, so a wide part can overhang the table on each side and still be reached by the spindle.
02
A BBT50 spindle at 10,000 rpm with 22 kW. The table shows no optional spindle here, while the DCV4025B lists 4,500 rpm as standard with 6,000 and 10,000 rpm options. Confirm the available spindles with YCM.
03
20,000 kg, with T-slots listed as 11 x 28 x 200 mm. The machine weighs 55,000 kg. X travel is 4,065 mm and Z travel 762 mm, with 1,016 mm as an option.
04
The DCV6035B has the same 3,500 mm of Y travel and 3,600 mm between columns with 6,200 mm of X travel, a 6,000 x 2,400 mm table rated for 25,000 kg and a weight of 65,000 kg.
