YCM NSV106A

Q: How much does the YCM NSV106A cost?

The price estimate for the YCM NSV106A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nsv106a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

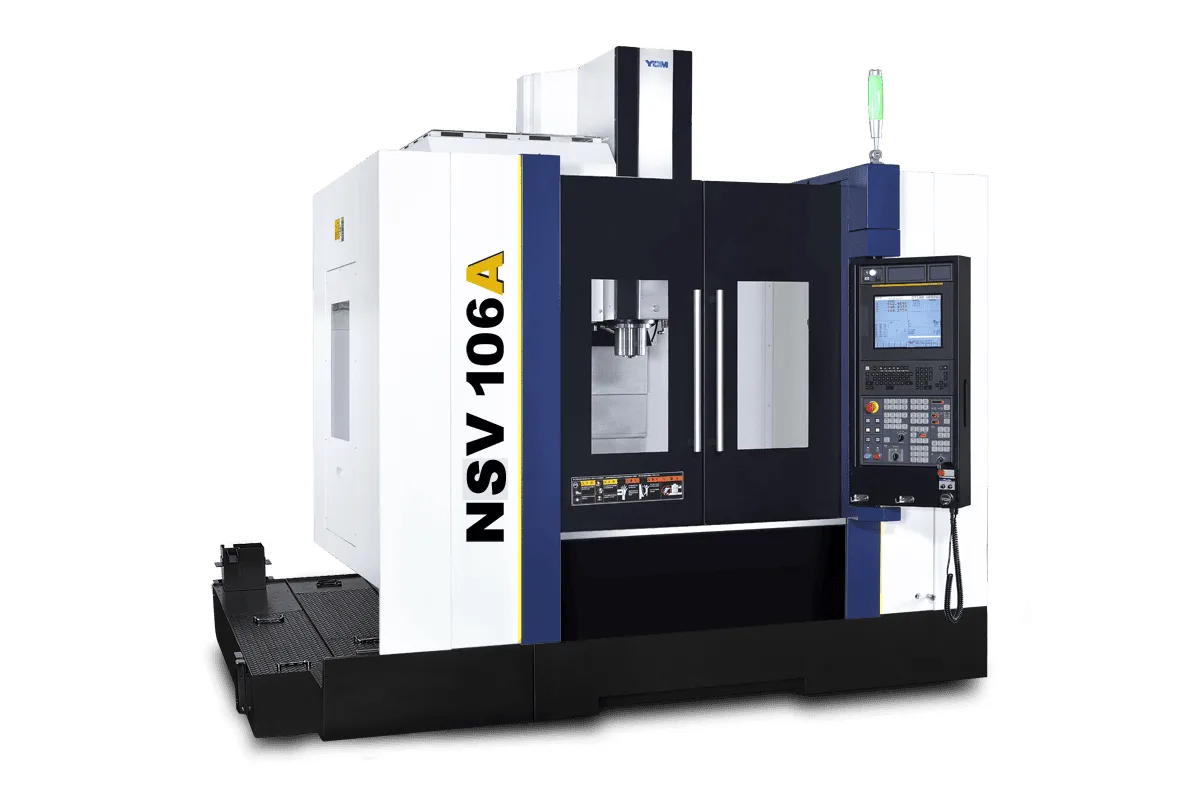

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

24 tools; opt. 30 / 48 tools

Table Size

1,120 x 650 mm (44.09 x 25.59 in)

Spindle Power

18.5 kW (25 HP)

x axis travel

1,020 mm (40.16 in)

How much does the YCM NSV106A cost?

Price estimate

Uncertain

We do not have a price for the YCM NSV106A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM NSV106A is the base model of four NSV106 variants, all built on one frame with 1,020 mm (40.16 in) of X travel and 600 mm (23.62 in) each of Y and Z. This one carries the 18.5 kW (25 HP) IDD spindle at 12,000 rpm and the faster axis set: 48 m/min (1,890 ipm) in X and Y, 32 m/min (1,260 ipm) in Z.

Square Y and Z strokes of 600 mm make the envelope deeper and taller than usual for a one-metre machine. The table, 1,120 x 650 mm (44.09 x 25.59 in), is rated for 700 kg (1,543 lb), a figure YCM ties to the 45 mm guideways on the three axes. Six slide blocks carry the X axis.

Knowing the siblings helps to place it. The NSV106AS takes the same axes to 48 m/min on Z as well, with a 37 kW (50 HP) spindle and a 1,000 kg (2,205 lb) table. The NSV106AM and NSV106AMS are the slower, thermally equipped versions. The NSV106A is the plain production machine of the family: fast axes, standard spindle, lowest table rating.

Tools change in 1.8 sec tool-to-tool. The standard magazine is a 24-tool disk; a 30-tool disk and a 48-tool chain magazine are options. Triple chip augers are standard and a dual-auger layout is the alternative. A 15,000 rpm spindle is the only spindle option in the table, and the machine weighs 7,000 kg (15,432 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 15,000 rpm
Spindle Motor Power	18.5 kW (25 HP)
Spindle Taper	BBT40
X Axis Travel	1,020 mm (40.16 in)
Y Axis Travel	600 mm (23.62 in)
Z Axis Travel	600 mm (23.62 in)
Distance Spindle Nose to Table	100~700 mm (3.94~27.56 in)
Table Size	1,120 x 650 mm (44.09 x 25.59 in)
T-Slots	6 x 18 x 100 mm (6 x 0.71 x 3.94 in)
Max Table Load	700 kg (1,543 lb)
Rapid Traverse Xyz	48/48/32 m/min (1,890/1,890/1,260 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787 ipm)
Tool Capacity	24 tools; opt. 30 / 48 tools
Max Tool Weight	6 kg (13 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.8 in); without adjacent tools ø125 x 300 mm (ø4.9 x 11.8 in)
Machine Weight	7,000 kg (15,432 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

600 mm (23.62 in) of both Y and Z travel on a 1,020 mm (40.16 in) machine
Rapids of 48 m/min (1,890 ipm) in X and Y
1.8 sec tool-to-tool change, with a 48-tool chain magazine available
45 mm guideways on 3 axes and 6 slide blocks on the X axis
Triple chip augers as standard

Limitations

Table load of 700 kg (1,543 lb) is the lowest of the NSV106 family; the NSV106AS carries 1,000 kg (2,205 lb)
Spindle power is 18.5 kW (25 HP), half the 37 kW (50 HP) of the NSV106AS
Z rapid is 32 m/min (1,260 ipm)
No spindle cooling unit appears in this model's feature list

Best For

Production milling of aluminium and steel parts up to a metre long Tall parts and fixtures that use 600 mm (23.62 in) of Z travel Jobs needing many tools, with the 48-tool chain magazine

Frequently Asked Questions

01 What are the travels of the NSV106A?

X travel is 1,020 mm (40.16 in), Y is 600 mm (23.62 in) and Z is 600 mm (23.62 in). Spindle nose to table is 100~700 mm (3.94~27.56 in). The table measures 1,120 x 650 mm (44.09 x 25.59 in) and is rated for 700 kg (1,543 lb).

02 How do the four NSV106 models differ?

By spindle, axis speed and table load. The NSV106A has 18.5 kW (25 HP) and 48/48/32 m/min rapids. The NSV106AS has 37 kW (50 HP), 15,000 rpm and 48/48/48 m/min. The NSV106AM runs at 24/24/16 m/min, and the NSV106AMS at 24/24/24 m/min with a 1,000 kg (2,205 lb) table.

03 Which tool magazines are offered?

A 24-tool disk type magazine is standard. A 30-tool disk type and a 48-tool chain type are options. Tool change is 1.8 sec tool-to-tool, and tools can be ø76 x 300 mm with adjacent tools in place and weigh 6 kg (13 lb).

04 What spindle does the NSV106A use?

YCM's IDD PLUS spindle with ceramic bearings and a BBT40 taper, running to 12,000 rpm with 18.5 kW (25 HP). A 15,000 rpm spindle is listed as the option. YCM names heavy cutting, drilling and tapping as the work the bearing arrangement is meant for.
