YCM TV2610B

Q: How much does the YCM TV2610B cost?

The price estimate for the YCM TV2610B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-tv2610b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

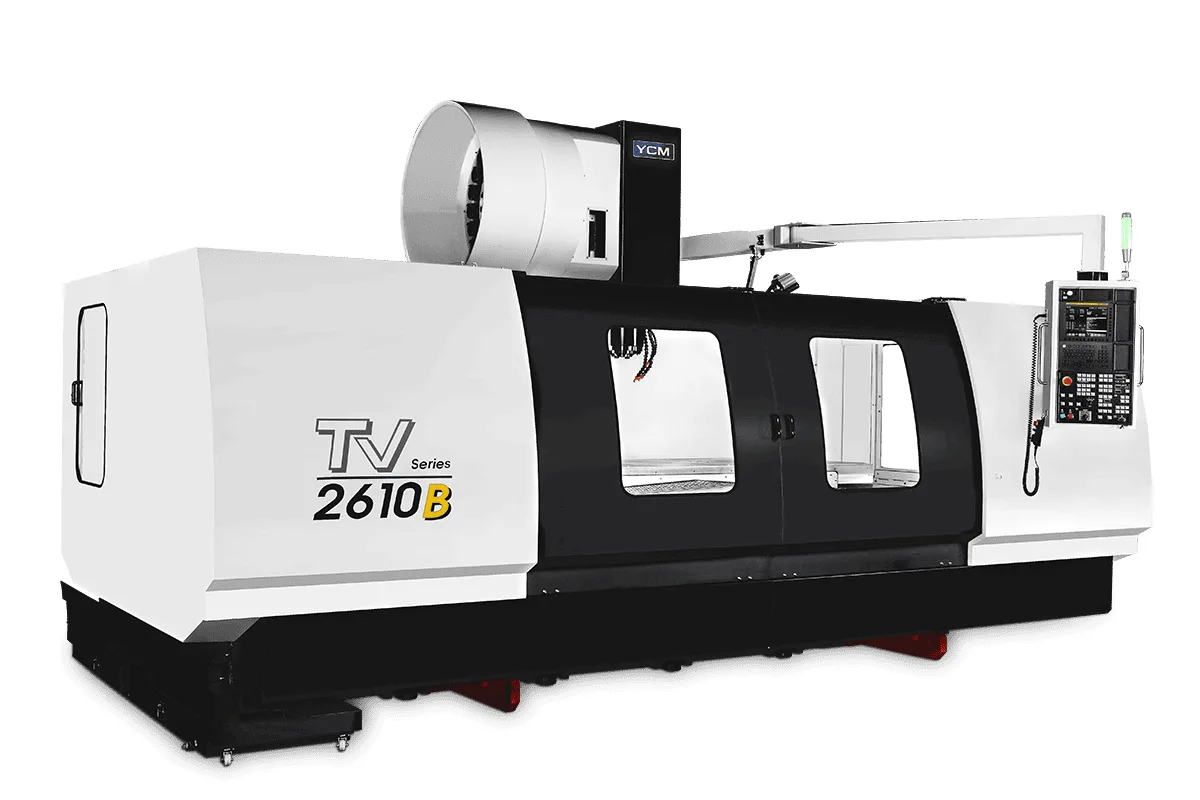

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

6,000 rpm; opt. 10,000 rpm

Spindle Taper

BT50; opt. BBT50

Tool Capacity

24 tools; opt. 32 / 40 tools

Table Size

2,800 x 1,020 mm (110.24 x 40.16 in)

Spindle Power

25 kW (33.5 HP); opt. 45 kW (60.4 HP)

x axis travel

2,600 mm (102.36 in)

How much does the YCM TV2610B cost?

Price estimate

Uncertain

We do not have a price for the YCM TV2610B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM TV2610B is the longest vertical machining center in the TV series, with 2,600 mm (102.36 in) of X travel. Y is 1,020 mm (40.16 in) and Z is 762 mm (30 in). Its table, 2,800 x 1,020 mm (110.24 x 40.16 in), is rated for 7,000 kg (15,432 lb).

It is the TV2110B with half a metre more X. The penalty in mass is small, 26,000 kg (57,320 lb) against 25,500 kg (56,217 lb), because the T-base already carries the table over its whole stroke and only the base and table castings lengthen. For a shop deciding between the two, the question is simply the longest part it expects. Bed plates, press components, long molds and structural members beyond two metres belong on this machine.

YCM lists one range for spindle nose to table on this model, 200~962 mm (7.87~37.87 in), where the shorter models print a second range in brackets. With 762 mm of Z, a tall part on a riser or angle plate needs checking against the 200 mm minimum as well as the maximum.

Cutting hardware is common to the large TV machines: a BT50 gearhead spindle at 6,000 rpm listed at 25 kW (33.5 HP), an optional 10,000 rpm spindle with 45 kW (60.4 HP), square guideways with Turcite-B on every axis, and 12 m/min (472 ipm) rapids. Tools weigh up to 20 kg (44 lb) and the magazine takes 24, 32 or 40.

Full Specifications

Parameter	Value
Max Spindle Speed	6,000 rpm; opt. 10,000 rpm
Spindle Motor Power	25 kW (33.5 HP); opt. 45 kW (60.4 HP)
Spindle Taper	BT50; opt. BBT50
X Axis Travel	2,600 mm (102.36 in)
Y Axis Travel	1,020 mm (40.16 in)
Z Axis Travel	762 mm (30 in)
Distance Spindle Nose to Table	200~962 mm (7.87~37.87 in)
Table Size	2,800 x 1,020 mm (110.24 x 40.16 in)
T-Slots	6 x 22 x 150 mm (6 x 0.87 x 5.91 in)
Max Table Load	7,000 kg (15,432 lb)
Rapid Traverse Xyz	12/12/12 m/min (472/472/472 ipm)
Cutting Feed Rate	1~5,000 mm/min (0.04~196.9 ipm)
Tool Capacity	24 tools; opt. 32 / 40 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	24T: ø110 x 350 (ø190 x 350) 32T/40T: ø120 x 350 (ø240 x 350) mm
Machine Weight	26,000 kg (57,320 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

X travel of 2,600 mm (102.36 in) on a single-column machine
7,000 kg (15,432 lb) table load on a 2,800 x 1,020 mm (110.24 x 40.16 in) table
Table supported over its full stroke by the T-base
BT50 gearhead spindle, with 10,000 rpm and 45 kW (60.4 HP) as options
Tools up to 20 kg (44 lb) in 24, 32 or 40-tool magazines

Limitations

Rapids of 12 m/min (472 ipm) make a full X traverse slow
Z travel of 762 mm (30 in) with a 200 mm minimum spindle nose to table distance
A 26,000 kg (57,320 lb) machine needs a foundation and heavy rigging
Cutting feed is limited to 5,000 mm/min (196.9 ipm)

Best For

Parts longer than two metres: bed plates, press parts and long molds Heavy workpieces up to 7,000 kg (15,432 lb) loaded by crane Large-area face milling and boring in steel

Frequently Asked Questions

01 How long a part can the TV2610B machine?

X travel is 2,600 mm (102.36 in) and the table is 2,800 x 1,020 mm (110.24 x 40.16 in). Y travel is 1,020 mm (40.16 in) and Z travel is 762 mm (30 in).

02 What separates the TV2610B from the TV2110B?

Only length. The TV2110B has 2,100 mm (82.68 in) of X travel and a 2,300 x 1,020 mm (90.55 x 40.16 in) table. Both carry 7,000 kg (15,432 lb), share Y and Z travels and rapid at 12 m/min (472 ipm). The TV2610B weighs 26,000 kg (57,320 lb).

03 What is the distance from spindle nose to table?

200~962 mm (7.87~37.87 in). That gives a 200 mm minimum, so short tools on low parts may need a riser, and the maximum has to clear the part, fixture and tool length together.

04 What spindle power is listed?

25 kW (33.5 HP) for the standard 6,000 rpm BT50 gearhead spindle and 45 kW (60.4 HP) in the options column, together with a 10,000 rpm speed option and a BBT50 taper option.
