YCM DCV6035B

Q: How much does the YCM DCV6035B cost?

The price estimate for the YCM DCV6035B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv6035b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

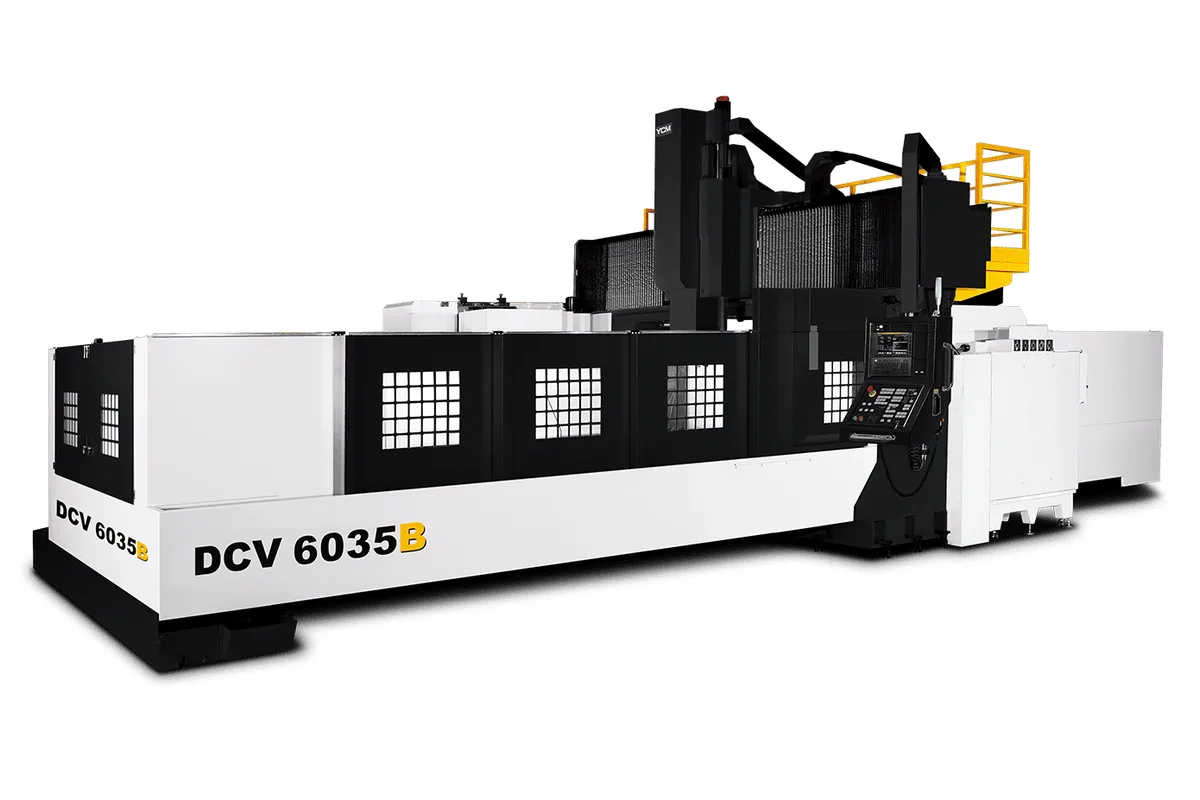

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

4,500 rpm; opt. 6,000 / 10,000 rpm

Spindle Taper

BBT50

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

6,000 x 2,400 mm (236.22 x 94.49 in)

Spindle Power

25/25/45 kW (33.5/33.5/60 hp)

x axis travel

6,200 mm (244.10 in)

How much does the YCM DCV6035B cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV6035B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Largest three-axis machine YCM lists, the DCV6035B has 6,200 mm of X travel and 3,500 mm of Y travel. Its table is 6,000 x 2,400 mm and carries 25,000 kg, the columns stand 3,600 mm apart, and the machine weighs 65,000 kg.

Machines of this size are bought for a specific kind of part, and usually installed with the building in mind. Typical loads are frames and beds for large presses and injection machines, ship engine components, wind turbine hubs and bedplates, and the largest stamping dies. The bridge is more than a metre wider than the table, so wide fabrications can hang over the table edges and still be machined across the full Y stroke.

YCM carries the table on 3 roller type guideways with a large number of slider blocks and moves it through a direct drive gearbox. Three roller guideways on the cross rail support the saddle over the long Y stroke, the columns stand on widened bases with boots, and the Z slide is lined with Turcite-B.

X rapid is 12 m/min, so a full traverse takes about half a minute. Y and Z rapid at 15 m/min. The standard spindle is the geared 4,500 rpm BBT50 unit, with 6,000 and 10,000 rpm options and a power row of 25/25/45 kW. Z travel is 762 mm, with 1,016 mm optional. Forty tools are standard; on a machine where one part can take a week, the 120-tool option is worth considering.

Full Specifications

Parameter	Value
Max Spindle Speed	4,500 rpm; opt. 6,000 / 10,000 rpm
Spindle Motor Power	25/25/45 kW (33.5/33.5/60 hp)
Spindle Taper	BBT50
X Axis Travel	6,200 mm (244.10 in)
Y Axis Travel	3,500 mm (137.80 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 (450~1,212 [Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm
Distance Between Columns	3,600 mm (141.73 in)
Table Size	6,000 x 2,400 mm (236.22 x 94.49 in)
T-Slots	11 x 28 x 200 mm (11 x 1.10 x 7.87 in)
Max Table Load	25,000 kg (55,115 lb)
Rapid Traverse Xyz	12/15/15 m/min (472/591/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	20 kg (44.1 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	65,000 kg (143,299 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

6,200 x 3,500 mm of X and Y travel
6,000 x 2,400 mm table rated for 25,000 kg
3,600 mm between columns, wider than the table
Table on 3 roller type guideways with a direct drive gearbox on X
Magazine options up to 120 tools

Limitations

Machine weight of 65,000 kg and a very large foundation
X rapid is 12 m/min over 6,200 mm of travel
Z travel is 762 mm, or 1,016 mm as an option, under a 3,600 mm bridge
Standard spindle speed is 4,500 rpm

Best For

Press frames, machine beds and bedplates up to six metres The largest stamping dies and wide fabrications Workpieces up to 25,000 kg

Frequently Asked Questions

01 How big is the DCV6035B?

X travel is 6,200 mm and Y travel 3,500 mm. The table is 6,000 x 2,400 mm with T-slots listed as 11 x 28 x 200 mm, the distance between columns is 3,600 mm and the machine weighs 65,000 kg.

02 How much weight can the table carry?

25,000 kg. YCM equips the X axis with 3 roller type guideways and numerous slider blocks for load capacity, and drives it through a direct drive gearbox for smooth response, high torque and low backlash.

03 What spindle options are there?

The standard spindle runs at 4,500 rpm with a 2-step gear transmission on a BBT50 taper. Options of 6,000 and 10,000 rpm are listed, and the power row reads 25/25/45 kW. Tools can weigh up to 20 kg.

04 Is there a 5-axis machine of this size?

Yes, the DCV6030B-5AX. It has 6,200 mm of X travel, 3,500 mm of Y, 1,016 mm of Z, a universal head with B and C axes and an HSK A100 spindle at 10,000 rpm. It weighs 64,000 kg.
