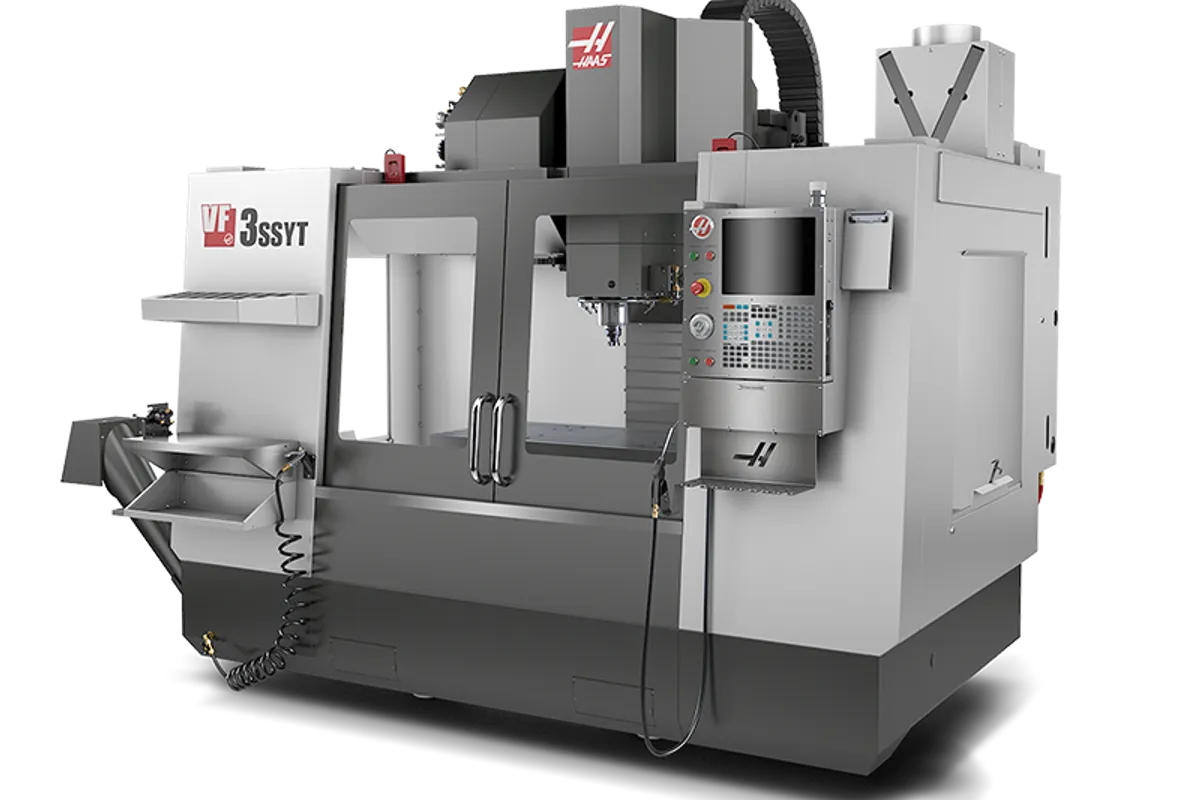

Haas VF-3SSYT
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Haas VF-3SSYT is the extended-Y, extended-table Super Speed variant of the VF-3, combining 1,016 x 660 x 635 mm (40 x 26 x 25 in) of travel with a 12,000 RPM inline direct-drive spindle. The YT suffix means this machine gets 6 extra inches of Y-travel (26 vs 20 in) and a wider table compared to the standard VF-3SS, making it the ideal choice for shops that need both high-speed performance and deeper reach into parts.
The 22.4 kW (30 hp) inline direct-drive spindle delivers 122 Nm (90 ft-lbf) of torque at 2,000 RPM while spinning to 12,000 RPM. Like all SS models, the direct-drive eliminates belts and gears for smoother high-RPM operation and better surface finishes. The CT40/BT40/HSK-A63 taper accepts standard tooling shared across the Haas 40-taper platform.
The table measures 1,219 x 610 mm (48 x 24 in) with 7 T-slots on 80 mm centers. That 24-inch table width with 26 inches of Y-travel gives significantly more fixture layout flexibility than the standard VF-3SS with its 18-inch table and 20 inches of Y. Table load capacity is approximately 1,588 kg (3,500 lb), higher than the VF-3SS's 1,750 lb.
Rapid traverse runs at 30.5 m/min (1,200 ipm) on all three axes. The 30+1 SMTC posts 1.8-second tool-to-tool and 2.4-second chip-to-chip times. Max cutting feedrate is 21.2 m/min (833 ipm). At approximately 5,761 kg (12,700 lb), the VF-3SSYT is heavier than the VF-3SS, providing better vibration damping for the wider saddle and table. For shops that run the VF-3SS but wish they had more Y-axis depth and a wider table, the VF-3SSYT delivers exactly that. Specs derived from Haas Automation published data for the VF-3YT and SS platform.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,016 mm (40 in) |
| Y-Axis Travel | 660 mm (26 in) |
| Z-Axis Travel | 635 mm (25 in) |
| Spindle Nose To Table Max | 742 mm (29.2 in) |
| Spindle Nose To Table Min | 107 mm (4.2 in) |
| Max Spindle Speed | 12,000 RPM |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Motor Power | 30.0 hp |
| Spindle Torque Max | 122 Nm (90 ft-lbf) @ 2,000 RPM |
| Spindle Drive | Inline Direct-Drive |
| Spindle Cooling | Liquid Cooled |
| Tool Capacity | 30+1 SMTC |
| Tool To Tool | 1.80 s |
| Chip To Chip | 2.40 s |
| Max Tool Diameter | 2.5 in |
| Max Tool Weight | 12.0 lb |
| Max Tool Length | 13.00 in |
| Table Size | 1,219 x 610 mm (48 x 24 in) |
| Table Load Max | 1,588 kg (3,500 lb) |
| T Slots | 7 slots, 80 mm (3.15 in) center distance |
| Max Cutting Feedrate | 21.2 m/min (833 ipm) |
| Rapid Traverse X | 30.5 m/min (1,200 ipm) |
| Rapid Traverse Y | 30.5 m/min (1,200 ipm) |
| Rapid Traverse Z | 30.5 m/min (1,200 ipm) |
| Max Thrust X | 3085 lbf |
| Max Thrust Y | 3085 lbf |
| Max Thrust Z | 3923 lbf |
| Machine Weight | 5,761 kg (12,700 lb) |
| CNC Control | Haas Next Generation Control (NGC) |
| Coolant Capacity | 55 gal |
| Air Required | 4 scfm @ 100 psi |
| Electrical Low | 220 VAC 3-phase, 70 A |
| Electrical High | 440 VAC 3-phase, 35 A |
| Travels | S.A.E |
| X Axis | 40.00 in |
| Y Axis | 26.00 in |
| Z Axis | 25.00 in |
| Spindle Nose To Table | 4.2 in |
| Spindle | S.A.E |
| Max Rating | 30.0 hp |
| Max Speed | 12000 rpm |
| Max Torque | 90.0 ft-lbf @ 2000 rpm |
| Drive System | Inline Direct-Drive |
| Taper | CT40 | BT40 | HSK-A63 |
| Bearing Lubrication | Air / Oil Injection |
| Cooling | Liquid Cooled |
| Table | S.A.E |
| Length | 54.0 in |
| Width | 24.0 in |
| T Slot Width | 0.626 in to 0.630 in |
| T Slot Center Distance | 3.15 in |
| Number Of Std T Slots | 7 |
| Max Weight On Table | 1750 lb |
| Feedrates | S.A.E |
| Max Cutting | 833 ipm |
| Rapids On X | 1400 ipm |
| Rapids On Y | 1400 ipm |
| Rapids On Z | 1400 ipm |
| Axis Motors | S.A.E |
| Tool Changer | S.A.E |
| Type | SMTC |
| Capacity | 30+1 |
| Max Tool Diameter Large | 5.0 in |
| General | S.A.E |
| Air Requirements | S.A.E |
| Inline Air Hose | 3/8 in |
| Coupler | 3/8 in |
| Air Pressure Min | 80 psi |
| Electrical Specification | S.A.E |
| Input Ac Voltage Low | 220 VAC |
| Full Load Amps Low | 70 A |
| Input Ac Voltage High | 440 VAC |
| Full Load Amps High | 35 A |
| Dimensions Shipping | S.A.E |
| Domestic Pallet | 156.0 in x 102.0 in x 109.0 in |
| Export Pallet | 164.0 in x 91.5 in x 101.0 in |
| Machine Weight | 15000 lb |
| Domestic Pallet W 501 Smtc | 156 in x 102 in x 127 in |
| Export Pallet W 501 Smtc | 164 in x 92 in x 101 in |
| Weight W 501 Smtc | 16500 lb |
| Domestic Pallet W 701 Smtc | 156.0 in x 102.0 in x 134.5 in |
| Weight W 701 Smtc | 13,200 lb |
| Haas Rotary | HAAS MACHINE |
| Ha2ts | VF-3SSYT |
| Ha5c | VF-3SSYT |
| Ha5c T | VF-3SSYT |
| Ha5c2 | VF-3SSYT |
| Ha5c2 T | VF-3SSYT |
| Ha5c3 | VF-3SSYT |
| Ha5c3 T | VF-3SSYT |
| Ha5c4 | VF-3SSYT |
| Ha5c4 T | VF-3SSYT |
| Ha5cs | VF-3SSYT |
| Hqda5 | VF-3SSYT |
| Hrc160 | VF-3SSYT |
| Hrc210 | VF-3SSYT |
| Hrt160 | VF-3SSYT |
| Hrt160 2 | VF-3SSYT |
| Hrt160sp | VF-3SSYT |
| Hrt160ss | VF-3SSYT |
| Hrt200hs | VF-3SSYT |
| Hrt210 | VF-3SSYT |
| Hrt210 2 | VF-3SSYT |
| Hrt210ht | VF-3SSYT |
| Hrt210m | VF-3SSYT |
| Hrt210sp | VF-3SSYT |
| Hrt210ss | VF-3SSYT |
| Hrt210vm | VF-3SSYT |
| Hrt310 | VF-3SSYT |
| Hrt310sp | VF-3SSYT |
| Hrt310ss | VF-3SSYT |
| Hrt450 | VF-3SSYT |
| Hrta5 | VF-3SSYT |
| Hrta6 | VF-3SSYT |
| Lt260 | VF-3SSYT |
| Lt350 | VF-3SSYT |
| T5c | VF-3SSYT |
| T5c2 | VF-3SSYT |
| T5c3 | VF-3SSYT |
| T5c4 | VF-3SSYT |
| Th240 | VF-3SSYT |
| Th450 | VF-3SSYT |
| Tr160 | VF-3SSYT |
| Tr160 2 | VF-3SSYT |
| Tr200y | VF-3SSYT |
| Tr210 | VF-3SSYT |
| Tr310 | VF-3SSYT |
| Trt100 | VF-3SSYT |
| Trt160 | VF-3SSYT |
| Trt210 | VF-3SSYT |
| Trt310 | VF-3SSYT |
| Trt70 | VF-3SSYT |
Specifications sourced from haascnc.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 26 inches of Y-travel gives 6 more inches of depth than the standard VF-3SS for wider parts and deeper reach
- 12,000 RPM spindle with 1,200 ipm rapids delivers full SS performance in a wider work envelope
- 48 x 24-inch table with 7 T-slots provides significantly more fixture layout options than the VF-3SS's 48 x 18-inch table
- 3,500 lb table load is double the VF-3SS's 1,750 lb, supporting heavier fixtures and tombstone setups
- 1.8-second tool-to-tool and 2.4-second chip-to-chip match the VF-3SS's fast tool change times
- 360 L coolant capacity is 73% larger than the VF-3SS, supporting longer unattended runs
Limitations
- Costs roughly $12K more than the standard VF-3SS for the extended Y and wider table
- 12,700 lb machine weight is 1,000 lb heavier than the VF-3SS, adding to shipping and installation cost
- 40-taper limits heavy steel roughing capability; no gearbox option on SS models
- Wider saddle and table mass slightly reduce dynamic acceleration compared to the narrower VF-3SS
Best For
Frequently Asked Questions
01
Base price starts around $100,000. With through-spindle coolant, probing, and common options, expect $115,000-$135,000.
02
The VF-3SSYT adds 6 inches of Y-travel (26 vs 20 in), a wider 48 x 24-inch table (vs 48 x 18), 7 T-slots (vs 5), double the table load at 3,500 lb, and 360 L coolant (vs 208 L). Spindle speed, rapids, and tool change times are the same. The SSYT costs roughly $12K more.
03
The VF-5SS has 50 inches of X-travel versus 40 on the VF-3SSYT, with the same 26 inches of Y. Both share the same 12K RPM spindle, 1,200 ipm rapids, and SMTC speeds. Choose the VF-5SS for longer parts; the VF-3SSYT saves money when 40 inches of X is sufficient.
04
The 30 HP spindle handles steel at lower RPMs with 122 Nm of torque. But the SS platform without a gearbox option is optimized for aluminum. For steel-dominant shops needing 26 inches of Y, consider the standard VF-3YT with the optional gearbox instead.
