Accuway Vertical Machining Centers (VMC)

Accuway UM-120

Q: How much does the Accuway UM-120 cost?

The price estimate for the Accuway UM-120 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-um-120#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

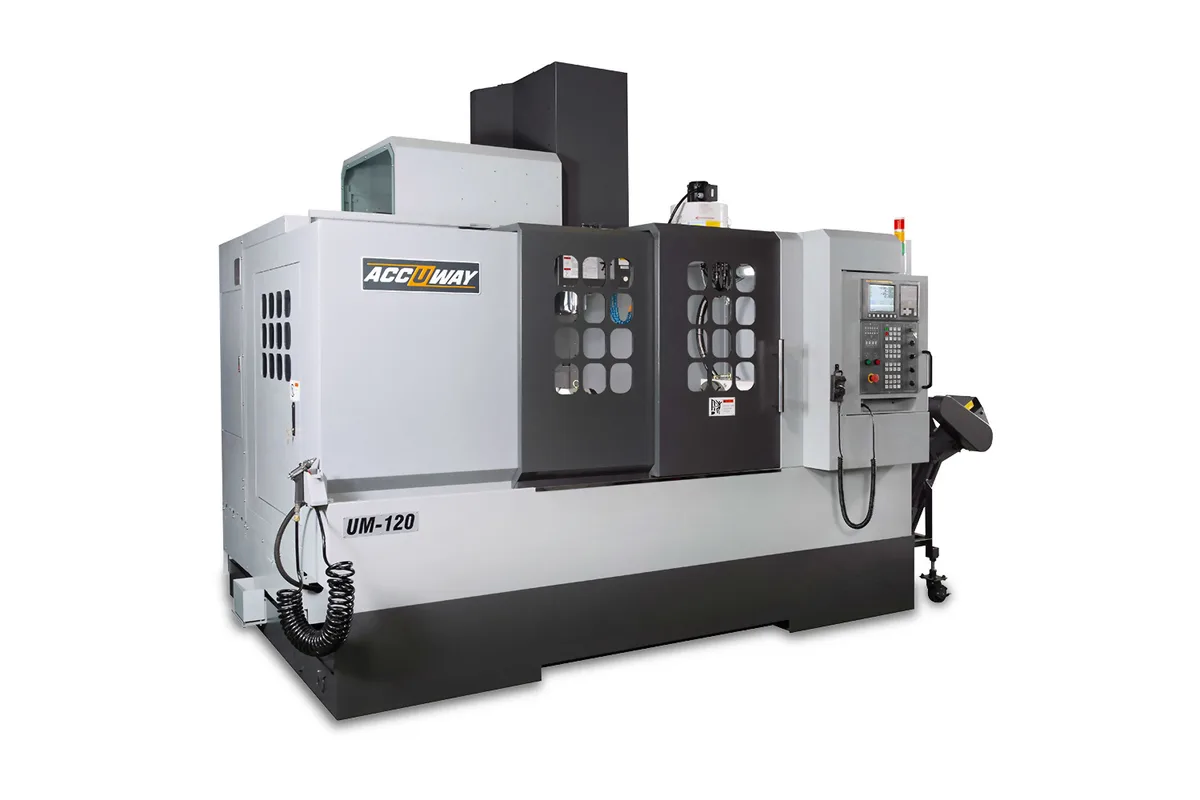

Accuway UM-120 vertical machining center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

10,000 (12,000) rpm

Spindle Taper

BT40

Tool Capacity

24 (30/32)

Table Size

1,200 x 650 mm (47.2 x 25.6 in)

Spindle Power

Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

control

FANUC 0i-M

How much does the Accuway UM-120 cost?

Price estimate

Uncertain

We do not have a price for the Accuway UM-120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With the UM-120, Accuway widens the BT40 line in Y as well as X. Travels are 1,200 mm (47.2 in), 650 mm (25.6 in) and 600 mm (23.6 in), and the table matches the X and Y strokes exactly at 1,200 x 650 mm (47.2 x 25.6 in). A table no larger than the travel means the cutter can reach every corner of it.

It carries 1,300 kg (2,866 lb), the highest table load among the 7,500 kg (16,534 lb) frames. Z is longer than on the UM-110 and the spindle nose range is 125~725 mm (4.9~28.5 in), starting closer to the table than the 150 mm minimum of the UM-110. Short tools reach thin plates without a riser.

The spindle is the BT40 unit of the series: 10,000 rpm with 12,000 rpm in brackets, Belt (Direct), and 7.5/11 kW (10.1/14.8 hp) with 15/18.5 kW (20.1/24.8 hp) bracketed. All axes rapid at 30 m/min (1,181 in/min) on ball-bearing guideways, roller type guide way being an option.

The coolant pump row differs from the smaller machines. It reads 0.75+1.27 kW with 1.01+1.73 kW in brackets under a 50Hz/60Hz heading. A 4-bar coolant system is standard and 20 bar through-spindle coolant is optional. Anyone who needs box ways instead should look at the UM-120B, which trades rapid rate for them.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-M
Max Spindle Speed	10,000 (12,000) rpm
Spindle Taper	BT40
Spindle Bearing Inner Diameter	70 mm (2.8 in)
Spindle Drive	Belt (Direct)
X Axis Travel	1,200 mm (47.2 in)
Y Axis Travel	650 mm (25.6 in)
Z Axis Travel	600 mm (23.6 in)
Distance Spindle Nose to Table	125~725 mm (4.9~28.5 in)
Table Size	1,200 x 650 mm (47.2 x 25.6 in)
T-Slots	No. of T-slot x width x pitch: 5 x 18 x 100 mm
Max Table Load	1,300 kg (2,866 lb)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Y	30 m/min (1,181 in/min)
Rapid Traverse Z	30 m/min (1,181 in/min)
Cutting Feed Rate	12 m/min (472 in/min)
Ball Screw Diameter Xyz	X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in)
Guideway Bearing Type	Ball
Tool Capacity	24 (30/32)
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	75 mm (3.0 in)
Max Tool Diameter Without Adjacent Tools	150 mm (5.9 in)
Tool Change Method	Arm type
Max Tool Length	300 mm (11.8 in)
Ai Contour Control	AICC I (AICC II)
Spindle Motor Power	Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
Feed Motor Xyz	X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp)
Coolant Pump Motor	50Hz/60Hz: 0.75+1.27 kW (1.0+1.7 hp), in brackets 1.01+1.73 kW (1.4+2.3 hp)
Air Supply	5.5 kg/cm²
Machine Dimensions	L x W x H: 3.1 x 2.3 x 2.8 m (122.0 x 90.6 x 110.2 in)
Machine Weight	7,500 kg (16,534 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

650 mm (25.6 in) of Y travel with a table of the same width
1,300 kg (2,866 lb) maximum weight on the table
Spindle nose comes down to 125 mm from the table, with 725 mm (28.5 in) at the top of the range
Z travel of 600 mm (23.6 in), longer than the UM-110's 550 mm (21.7 in)

Limitations

Rapid traverse of 30 m/min (1,181 in/min) with ball-type guideways as listed
Standard motor is 7.5/11 kW (10.1/14.8 hp); the larger rating is bracketed
Magazine holds 24 tools unless a bracketed capacity is ordered
A table equal to the travels leaves no overhang for clamps outside the cutting area

Best For

Plates and mould bases up to 1,200 x 650 mm Heavier fixtures within a 1,300 kg table load Thin workpieces that need the spindle nose close to the table General-purpose BT40 work on a FANUC 0i-M control

Frequently Asked Questions

01 What are the axis travels of the Accuway UM-120?

X is 1,200 mm (47.2 in), Y is 650 mm (25.6 in) and Z is 600 mm (23.6 in). The distance from spindle nose to table is 125~725 mm (4.9~28.5 in), and the table is 1,200 x 650 mm (47.2 x 25.6 in).

02 How does the UM-120 differ from the UM-120B?

The UM-120B lists Box as its guideway type and rapids of 24 m/min (945 in/min), with a 1,300 x 650 mm (51.2 x 25.6 in) table rated at 1,200 kg (2,646 lb). The UM-120 lists Ball guideway bearings, 30 m/min (1,181 in/min) and 1,300 kg (2,866 lb). Travels are the same on both.

03 How much power does the UM-120 spindle have?

The row reads 7.5/11 kW (10.1/14.8 hp), continuous and 30 min, followed by 15/18.5 kW (20.1/24.8 hp) in brackets. Speed is 10,000 rpm with 12,000 rpm in brackets. Accuway does not say on the page which pairing is standard, so confirm it in the quotation.

04 Does the UM-120 support a 4th axis?

Yes, as options. The list includes a 4th axis interface with FANUC motor and driver, and a 4th axis rotary table. Other options are a workpiece touch probe, a contact tool setter, a Heidenhain linear scale and an auto door.
