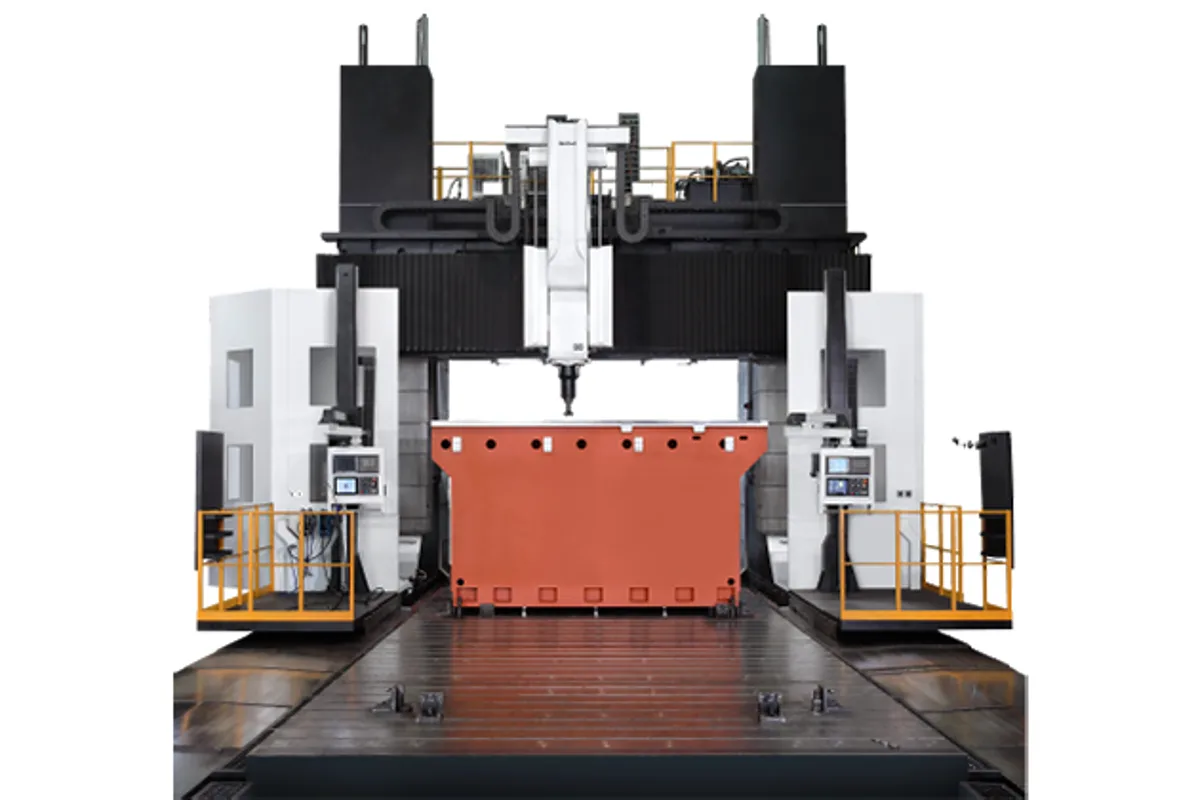

Hartford MCW-20650
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford MCW-20650 cost?
Price estimate
We do not have a price for the Hartford MCW-20650 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford MCW-20650 is the largest machine in Hartford's MCW series, and by table size the largest in its lineup: a fixed table of 20,000 x 5,000 mm (787.4 x 196.9 in), with 20,000 mm (787.4 in) of X travel and 6,500 mm (255.9 in) of Y.
It is a Moving Crossbeam Moving Column Machining Center. The columns run the length of the table on an X axis driven by twin servo motors and twin reducers; the cross-beam rides up and down on a W axis with twin ballscrews; the ram adds Z travel. Standard vertical travels are 1,000 mm in Z and 1,800 mm in W, and the options go to 1,400 mm and 2,100 mm.
A table of that size rated at 3,000 kg/m² is the capacity in outline. What fills it in practice is heavy fabricated or cast structure: hull sections, large press frames, turbine foundations, tooling for composite wings and blades.
The cutting end is the same as on the smallest model. A #50 self-made spindle runs 6,000 or 8,000 rpm as a gear head or 10,000 rpm as an i-Tech hybrid, on 18.5 / 22 kW or the optional 30 / 35 kW. Automatic universal, 90 degree and extension heads can be used, and the chain type magazine holds 40 or 62 tools.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 20,000 x 5,000 mm (787.4 x 196.9 in) |
| Max Table Load | 3,000 kg/m² |
| X Axis Travel | 20,000 mm (787.4 in) |
| Y Axis Travel | 6,500 mm (255.9 in) |
| Z Axis Travel | 1,000 opt. 1,200 / 1,400 mm |
| W Axis Travel | 1,800 opt. 2,100 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Spindle Speed Hybrid | 10,000 rpm |
| Tool Capacity | A: 40 (62) pcs |
| Tool Shank | BT-50 (CAT50 / DIN / BBT50) |
| Spindle Motor Power | 18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 20,000 x 5,000 mm (787.4 x 196.9 in) fixed table
- 20,000 mm (787.4 in) of X and 6,500 mm (255.9 in) of Y travel
- Twin-drive X axis and twin-ballscrew W axis
- Universal, 90 degree and extension heads with automatic change
Limitations
- Spindle power and speed are the same as on the eight-metre models
- Z travel of 1,000 mm as standard on a machine of this scale
- Rated per area at 3,000 kg/m², with no total load stated
Best For
Frequently Asked Questions
01
Its fixed table is 20,000 x 5,000 mm (787.4 x 196.9 in). X travel is 20,000 mm, Y travel 6,500 mm (255.9 in), Z travel 1,000 mm (up to 1,400 mm optional) and W travel 1,800 mm (2,100 mm optional).
02
3,000 kg/m². The table is fixed and Hartford states the rating per square metre, so the allowable weight of a part depends on the area it rests on.
03
No. All MCW models list the same #50 spindle options: gear head at 6,000 or 8,000 rpm, hybrid at 10,000 rpm, 18.5 / 22 kW standard and 30 / 35 kW optional.
04
Width. The MCW-20550 has a 20,000 x 4,000 mm (787.4 x 157.5 in) table and 5,500 mm (216.5 in) of Y travel; the MCW-20650 has a 5,000 mm wide table and 6,500 mm of Y.
