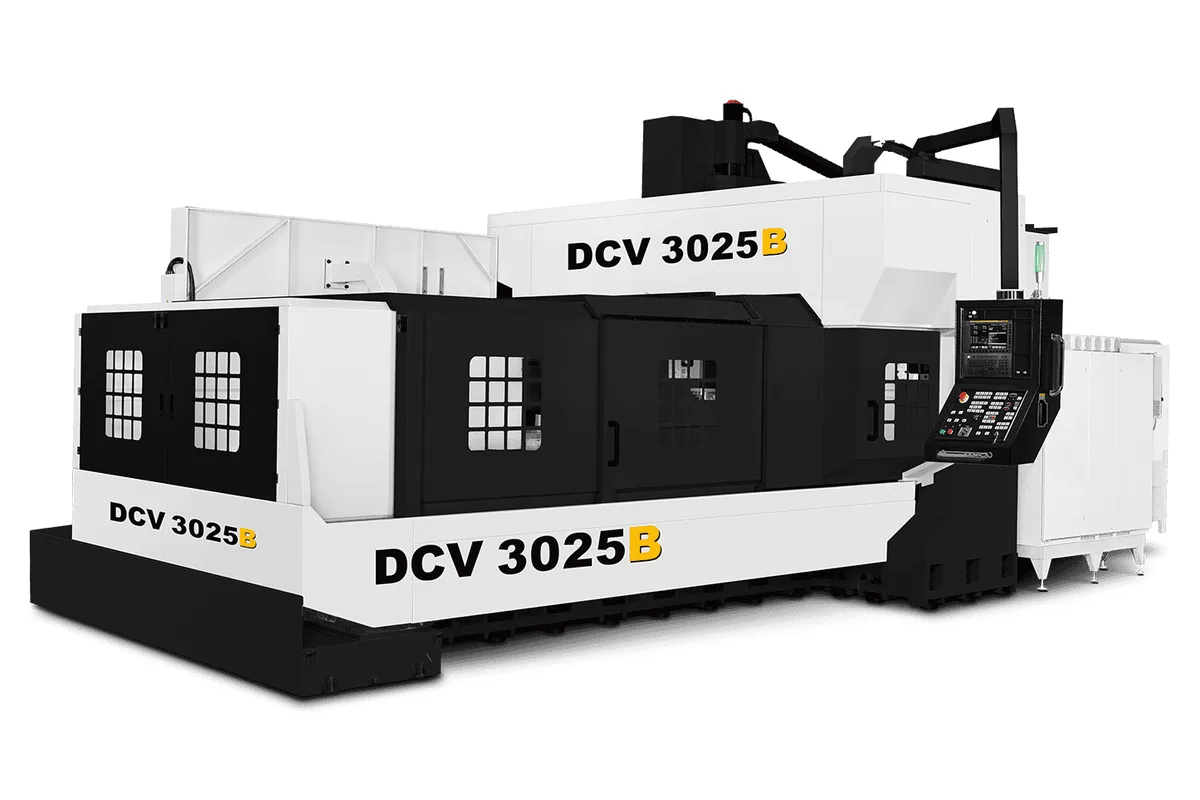

YCM DCV3025B
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the YCM DCV3025B cost?
Price estimate
We do not have a price for the YCM DCV3025B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a table of 3,100 x 2,400 mm, the YCM DCV3025B is nearly as wide as it is long. Y travel is 2,500 mm, the columns are 2,720 mm apart and X travel is 3,060 mm. Table load is 15,000 kg.
That footprint is chosen for parts that are large in both directions and often round: ring gears and bearing housings, turbine and pump casings, flanges for wind and hydro equipment, rotary table bases. A part 2.4 metres across sits fully on the table and passes between the columns with room for clamps.
Width adds weight to the bridge and saddle, and the machine comes to 44,000 kg. The cross rail carries the saddle on 3 roller type guideways, a layout YCM uses to support the headstock firmly across a long Y stroke. The X axis has a direct drive gearbox. Rapid traverse is 15 m/min on all axes and cutting feed 1~10,000 mm/min.
The spindle power row is printed here as a single entry, 25/25/45 kW, lined up with the three spindle speeds of 4,500, 6,000 and 10,000 rpm; 4,500 rpm is the standard. The taper is BBT50 and the tool weight limit 20 kg. The table has 11 T-slots, 28 mm wide on a 200 mm pitch. Standard Z travel is 762 mm and the option is 1,016 mm. A 40-tool magazine is standard, with 60 and 120-tool versions listed.
Full Specifications
| Parameter | Value |
|---|---|
| Max Spindle Speed | 4,500 rpm; opt. 6,000 / 10,000 rpm |
| Spindle Motor Power | 25/25/45 kW (33.5/33.5/60 hp) |
| Spindle Taper | BBT50 |
| X Axis Travel | 3,060 mm (120.47 in) |
| Y Axis Travel | 2,500 mm (98.43 in) |
| Z Axis Travel | 762 mm (30 in); opt. 1,016 mm (40 in) |
| Distance Spindle Nose to Table | 200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm |
| Distance Between Columns | 2,720 mm (107.09 in) |
| Table Size | 3,100 x 2,400 mm (122.1 x 94.5 in) |
| T-Slots | 11 x 28 x 200 mm (11 x 1.1 x 7.87 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Rapid Traverse Xyz | 15/15/15 m/min (591/591/591 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Tool Capacity | 40 tools; opt. 60 / 120 tools |
| Max Tool Weight | 20 kg (44.1 lb) |
| Max Tool Size | ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in) |
| Machine Weight | 44,000 kg (97,002 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,100 x 2,400 mm table for large round and square parts
- 2,500 mm of Y travel with 2,720 mm between columns
- Table load of 15,000 kg on that table
- Saddle supported on 3 roller type guideways
- Spindle speeds of 6,000 and 10,000 rpm available as options
Limitations
- Machine weight of 44,000 kg
- All axes rapid at 15 m/min
- Table load is no higher than on the narrower DCV3021B
- Standard Z travel of 762 mm limits tall casings unless the 1,016 mm option is taken
Best For
Frequently Asked Questions
01
3,100 x 2,400 mm, with T-slots listed as 11 x 28 x 200 mm and a load rating of 15,000 kg. X travel is 3,060 mm and Y travel 2,500 mm.
02
03
The row reads 25/25/45 kW. The speed row lists 4,500 rpm as standard with 6,000 and 10,000 rpm as options, so the three power figures appear to belong to those three spindles in order. Confirm the pairing with YCM.
04
Z travel is 762 mm, or 1,016 mm as an option. The spindle nose to table distance is 200~962 mm on the standard machine, and the page lists longer ranges for a column raised by 250 mm and for the longer Z travel.
